Amana Tool CNC Insert Solid Carbide Spoilboard Surfacing & Rabbeting, Flycutter, Leveler & Surface Planer Insert Knife Router Bits Archives

Amana Tool CNC Insert Solid Carbide Spoilboard Surfacing & Rabbeting, Flycutter, Leveler & Surface Planer Insert Knife Router Bits

Thank you for shopping with us!

Also see: DRB-440 PCD CNC Spoilboard Diamond-Tipped RB

Designed for planing & rabbeting the following materials:
-MDF
-Fiberboard
-HDF/LDF
-Balsa Core*
-Epoxy (Epoxy Resins)*
-High Density Urethane (HDU Board)*
-Plastic/Acrylic*
-Plywood/Chipboard*
-Hardwood/Softwood*
-Ultra-High-Molecular-Weight Polyethylene (UHMWPE)*

*For optimal results and maximum insert life, replace inserts with optional general purpose knives #AMA-12 (sold separately).

Featuring:

4-sided solid carbide insert knives
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Longest tool life

These industrial router bits feature solid carbide insert knives with four cutting edges that allow users to flip the knife over when one side becomes dull, providing the highest-quality finish available on woodworking tools.

Warning: Proper torques rating to tighten down screws is 2-3Nm Torques.

Sample – RC 2242:

Download as PDF

	Item #	Images	Manufacturer	Cut Depth	Diameter	Cut Height, Length, or Width	Knives	Overall Length	RPM	Shank	Replacement Parts	Note	Price	Add To Cart
Compare	RC-2243	0	Amana Tool	1/4 in Max Cut Depth	1 in	12 mm	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	2 1/64 in	24,000	1/4 in	Screw #67115	Mini Design. Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$104.81	Add to cart
Compare	RC-2245	1	Amana Tool	1/4 in Max Cut Depth	1 1/4 in	12 mm	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	1 11/16 in	18,000	1/2 in	Screw #67117	Mini Design. . Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$154.17	Add to cart
Compare	RC-2248	2	Amana Tool	1/4 in Max Cut Depth	1 1/2 in	12 mm	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	1 11/16 in	24,000	1/4 in	Screw #67117	Mini Design. Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$160.38	Add to cart
Compare	RC-2242	3	Amana Tool	1/2 in Max Cut Depth	1 3/4 in	12 mm	RCK-344	1 49/64 in	28,000	1/2 in	Screw #67115	Best recommended by planing/flattening in surfaces of large solid wood slabs with a handheld router in router sleds. Features a 1/8 in radius 5 degree bevel, making this tool unique compared to other spoilboard bits. Not to be used for slot cutting. Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$189.72	Add to cart
Compare	RC-2257	4	Amana Tool	1/4 in Max Cut Depth	2 1/2 in	1/2 in	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	2 1/2 in	19,000	1/2 in	Screw #67110	Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques. CNC Use only.	$304.31	Add to cart
Compare	RC-2258	5	Amana Tool	1/4 in Max Cut Depth	4 in	1/2 in	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	3 in	13,000	3/4 in	Screw #67110	Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques. CNC Use only.	$352.62	Add to cart
Compare	RC-2256	6	Amana Tool	1/4 in Max Cut Depth	1 1/2 in	12 mm	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	1 11/16 in	24,000	6 mm	Screw #67117	Mini Design. . Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$160.38	Add to cart
Compare	RC-2241	7	Amana Tool	1/4 in Max Cut Depth	1 1/2 in	12 mm	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	2 3/16 in	24,000	1/2 in	Screw #67117	Mini Design. Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$160.38	Add to cart

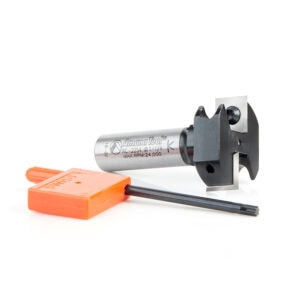

Compare	RC-2254	8	Amana Tool	1/4 in	1 1/4 in	12mm	HMA-12. Optional general purpose knives: AMA-12. Optional Solid Wood: AMA-12-DLC.	2 1/8 in	24,000	1/2 in	Screw #67117	Mini Design. Warning: Proper Torques rating to tighten down screws is 2-3Nm Torques.	$154.17	Add to cart
