Item # TCMK3280L, Everlast 32" 80-Tooth 1.375" Bore Truss & Component Saw
$1,208.44
Download as PDF
Thank you for shopping with us!
These saws are the workhorses of truss plants and are designed to provide a long service life and excellent cutting performance. Countersunk (80°) holes will accept 5/16" flat head bolt.

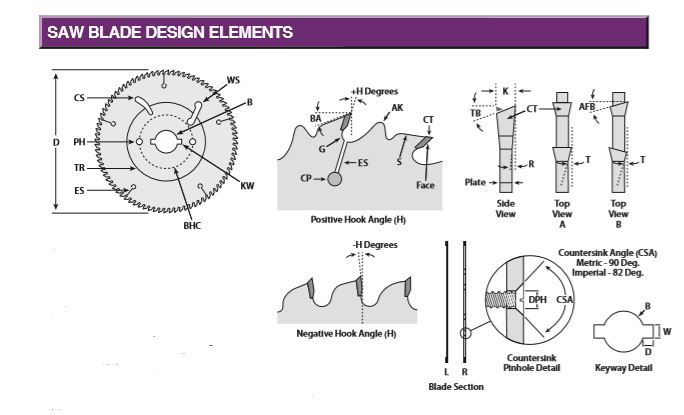

Triple Chip Grind - TCG - This design uses a trapezoidal tooth with 45 deg bevel on each side, which performs the cutting work followed by a lower STR tooth (raker) tooth for clean-out. Strong tooth design for cutting harder materials such as manmade laminates (single-sided) and non-ferrous materials. Can be used for rip cutting and cross cutting.
These saws are the workhorses of truss plants and are designed to provide a long service life and excellent cutting performance. Countersunk (80°) holes will accept 5/16" flat head bolt.
Triple Chip Grind - TCG - This design uses a trapezoidal tooth with 45 deg bevel on each side, which performs the cutting work followed by a lower STR tooth (raker) tooth for clean-out. Strong tooth design for cutting harder materials such as manmade laminates (single-sided) and non-ferrous materials. Can be used for rip cutting and cross cutting.
| SPECIFICATIONS | |
| Manufacturer | Everlast |
|---|---|
| Bore | 1.375 in |
| Diameter | 32 in |
| Countersink | 6-Left |
| Kerf | 0.260 in - 6.6 mm |
| Machine | Mitek |
| Grind | TCG |
| Plate | 0.200 in - 5.1 mm |
| Teeth | 80 |
| Hole Size | 6.00" Bolt Hole Circle Dia |
