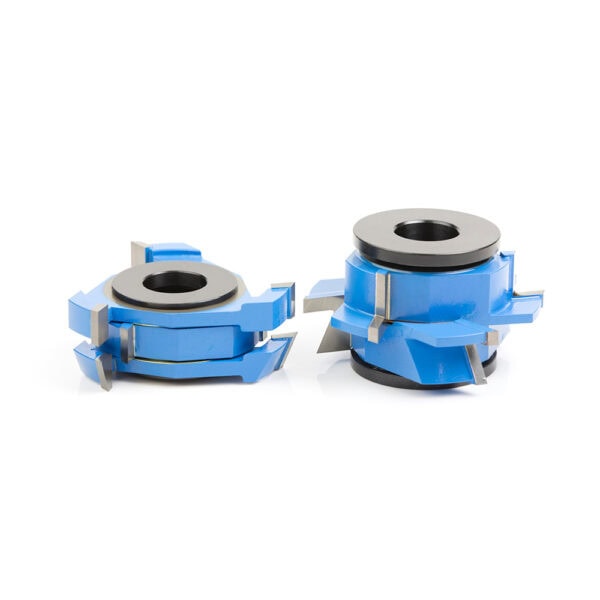

Item # SC565, Amana Tool 2-Piece Carbide-Tipped 3-Wing Instile™ & Rail Adjustable Cabinet Door 22-1/2 Degree Bevel x 2-3/8 Dia x 1-1/16 to 1-21/64 x 1/2 & 3/4 Bore Set for 5/8 to 1-1/4 Material
$392.35
Download as PDF
Thank you for shopping with us!
Mission Style Flat Panel Cabinet Door Making Set. Shaker and Arts & Crafts.
Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit. Adjust the panel groove width 3/16" to 9/32" for 1/4" plywood. 5.5mm for undersized 1/4" plywood and 5.9mm for oversized 1/4" veneered plywood.
Refer to Instile™ & Rail System Adjustable Tongue & Groove Router Bits Sets RC-4022 & 55421, 55431, 55441.
For Material 5/8" – 1 1/4"
(L) Depth of Groove 3/8
Optional Rub Collar C-005
(T) Width of Groove 3/16 to 9/32
Refer to Instile™ & Rail System Adjustable Tongue & Groove Insert Carbide Shaper Cutter Set 61218.
Mission Style Flat Panel Cabinet Door Making Set. Shaker and Arts & Crafts.
Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit. Adjust the panel groove width 3/16" to 9/32" for 1/4" plywood. 5.5mm for undersized 1/4" plywood and 5.9mm for oversized 1/4" veneered plywood.
Refer to Instile™ & Rail System Adjustable Tongue & Groove Router Bits Sets RC-4022 & 55421, 55431, 55441.
For Material 5/8" – 1 1/4"
(L) Depth of Groove 3/8
Optional Rub Collar C-005
(T) Width of Groove 3/16 to 9/32
Refer to Instile™ & Rail System Adjustable Tongue & Groove Insert Carbide Shaper Cutter Set 61218.

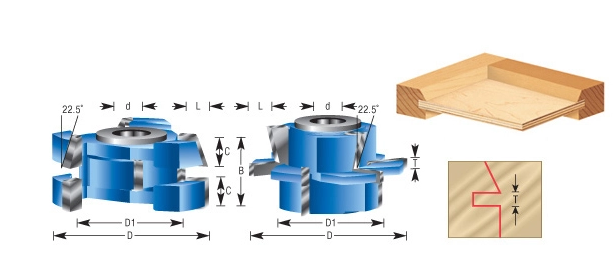

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 2 3/8 in |
| Cut Height, Length, or Width | 1 1/16 in to 1 21/64 in |
| Bore | 1/2 in & 3/4 in |
| Diameter (D1) | 1 5/8 in |
| Note | Rub collar for 3/4 in arbor only. Rub collar sold separately. |
| Profile | 22.5 deg Bevel |
| Width | Width of Groove 3/16 to 9/32 in |
| Cut Depth | Depth of Groove 3/8 in |
