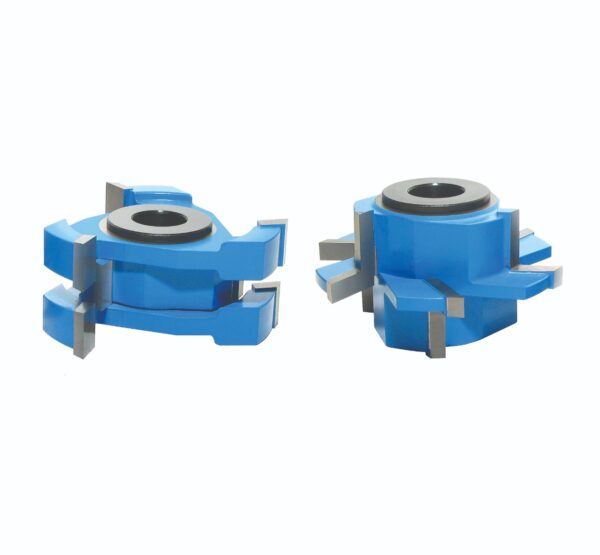

Item # SC553, Amana Tool 2-Piece Carbide-Tipped 3-Wing Instile™ & Rail Adjustable Cabinet Door 2-59/64 Dia x 1-1/16 to 1-21/64 x 1 & 1-1/4 Bore Set for 5/8 to 1-1/4 Material: Shaker, Arts & Crafts
$413.42
Download as PDF
Thank you for shopping with us!
Mission Style Flat Panel Cabinet Door Making Set. Shaker and Arts & Crafts.
Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit. Adjust the panel groove width 3/16" to 9/32" for 1/4" plywood. 5.5mm for undersized 1/4" plywood and 5.9mm for oversized 1/4" veneered plywood.
Refer to Instile™ & Rail System Adjustable Tongue & Groove Router Bits Sets RC-4022 & 55421, 55431, 55441.
Refer to Instile™ & Rail System Adjustable Tongue & Groove Insert Carbide Shaper Cutter Set 61218.
Mission Style Flat Panel Cabinet Door Making Set. Shaker and Arts & Crafts.
Designed to cut precise grooves to provide undersized plywood veneered panels with a snug rattle-free fit. Adjust the panel groove width 3/16" to 9/32" for 1/4" plywood. 5.5mm for undersized 1/4" plywood and 5.9mm for oversized 1/4" veneered plywood.
Refer to Instile™ & Rail System Adjustable Tongue & Groove Router Bits Sets RC-4022 & 55421, 55431, 55441.
Refer to Instile™ & Rail System Adjustable Tongue & Groove Insert Carbide Shaper Cutter Set 61218.
SPECIFICATIONS | |
Manufacturer | Amana Tool |
---|---|
Diameter | 2 59/64 in |
Cut Height, Length, or Width | 1 1/16 in to 1 21/64 in |
Bore | 1 in & 1 1/4 in |
Diameter (D1) | 2 5/32 in |
Note | Rub collar for 1 1/4 in arbor only. Rub collar sold separately. |
Rub Collar | C-051 |
Width | Width of Groove 3/16 - 9/32 in |
Cut Depth | Depth of Groove 3/8 in |
You may also like…
-
Item #RC-4022, Amana Tool " Instile™" Mission Style Adjustable Insert Tongue & Groove 2-3/8" Dia x 1-3/16" CH x 1/2" Shank Set (Industrial)
$357.17
-

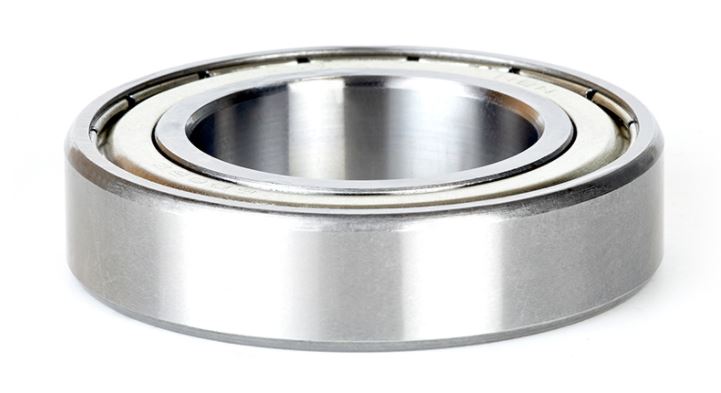

Item #C-051, Amana Tool Ball Bearing Rub Collar 2.165 O.D. x 1/2 Height for 1-1/4 Spindle
$23.93
-
Item #55421, Amana Tool Carbide-Tipped 2-Piece Concave Stile & Rail 1-5/8″ Dia x 11/16″ CH x 1/4″ Radius x 1/2″ Shank Set
$176.36
-

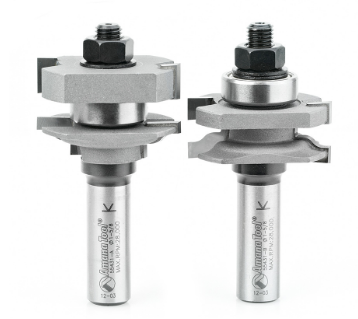

Item #55431, Amana Tool Carbide-Tipped 2-Piece Ogee Stile & Rail 1-5/8″ Dia x 11/16″ CH x 1/4″ Radius x 1/2″ Shank Set
