Item # RC-45714, Amana Tool CNC Double Edge Folding 'V' Groove for Shaping Composite Material Panels Solid Carbide Insert Knife 90°, 43/64" Dia x 1/2" Shank Router Bit
$65.78
Download as PDF
Thank you for shopping with us!

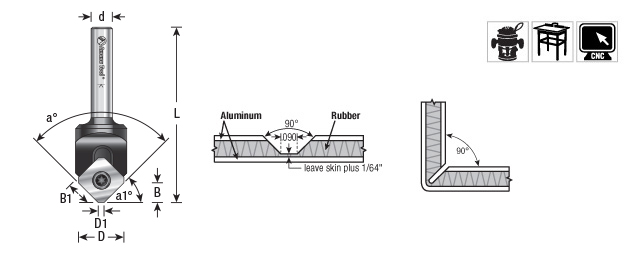

Amana Tool CNC Double Edge Folding 'V' Groove for Shaping Composite Material Panels Solid Carbide Insert Knife 90°, 43/64" Dia x 1/2" Shank Router Bit widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding the remaining material by hand.
Feed Rate (IPM) for RC-45716: 240 IPM
Amana Tool CNC Double Edge Folding 'V' Groove for Shaping Composite Material Panels Solid Carbide Insert Knife 90°, 43/64" Dia x 1/2" Shank Router Bit widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding the remaining material by hand.
Feed Rate (IPM) for RC-45716: 240 IPM
Designed for cutting and scoring aluminum sandwich materials including:
- Aluminum, Clay, Zinc & Wood Composite Panels
- Aluminum Composite Materials (ACM)
- Aluminum Composite Panel (ACP)
- ALPOLIC® Copper Composite Material (CCM)
- Alucobond®
- Alupanel®
- Dibond®
- Durabond
- e-panel™
- Etalbond®
- Phenolics
- Plastic/Acrylic
- Plexiglas®
- Titanium Composite Material (TCM)
- Wood
MAX RPM: 18,000
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 43/64 in |
| Cut Height, Length, or Width | 19/64 in |
| Diameter (D1) | 0.090 in |
| Flute | 2 |
| Overall Length | 2 9/32 in |
| Shank | 1/2 in |
| Angle | 90 deg |
| Knives | RCK-456 |
