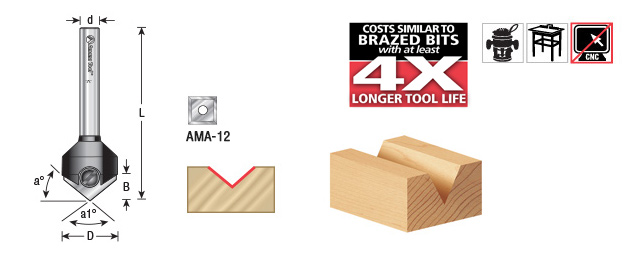

Item # RC-45712, Amana Tool In-Tech™ Solid Carbide Insert V-Groove/Signmaking 90°x45° x 11/16" Dia x 21/64" CH x 1/2" Shank
$58.24
Download as PDF
These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide-tipped bits, router bit dimensions, cutting quality, and accuracy remain constant during the life of the tool.
Ideal for routing:
Benefits of the in-Tech™ Series include:
Replacement insert knives sold as a pair. Optional MDF Knives: HMA-12.
Ideal for routing:
- MDF
- Chipboard
- Softwood
- Hardwood
Benefits of the in-Tech™ Series include:
- Cutting accuracy remains constant during the life of the knife
- Priced comparably to brazed router bits with at least 4 times longer tool life
- Superior cutting quality
- No sharpening costs
- Harder grade tungsten carbide
Replacement insert knives sold as a pair. Optional MDF Knives: HMA-12.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 11/16 in |
| Bearing(s) | -- |
| Cut Height, Length, or Width | 21/64 in |
| Flute | 1 |
| Knives | AMA-12 (1) |
| Overall Length | 2 3/16 in |
| Radius | -- |
| Shank | 1/2 in |
| Angle | 90 deg |
| Style | V-Groove/Signmaking |
