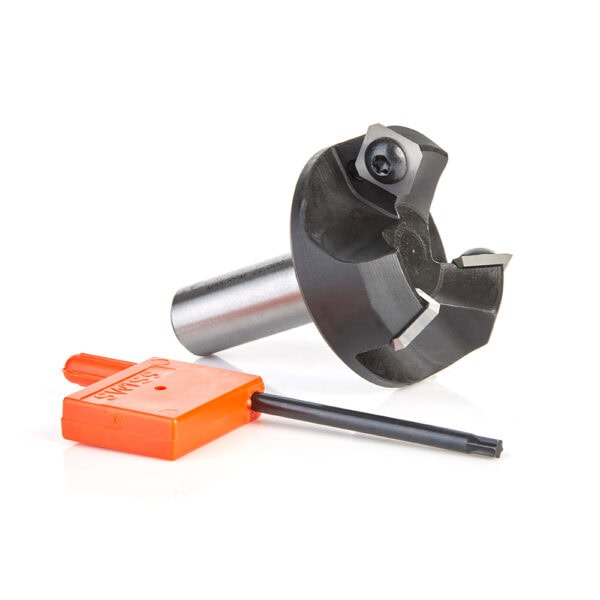

Item # RC-2267, Amana Tool CNC Insert Carbide 3 Wing/Flute Heavy Duty Spoilboard Plunging, Surfacing, Planing, Flycutter & Slab Leveler 1-3/4 Dia x 3/4 x 1/2 Shank Router Bit
$172.22
Download as PDF
Thank you for shopping with us!
Featuring solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull to provide the highest quality finish available.
Also perfect for surfacing and finishing using timber slab machines.
-Capable of removing thin layers of material, less than 0.001" per pass
-Tool can plunge down to 1/4" , then start resurfacing
-The unique chamfer corner insert design creates a flawless surface
-The 3-wing & 5-wing design results in a more balanced tool while running
Designed for the following materials: MDF, fiberboard, HDF/LDF, plywood/chipboard*, balsa core*, hardwood/softwood*, plastic*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives (sold separately).
Utilizes 4-sided carbide inserts
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Warning: Proper torques rating to tighten down screws is 2-3Nm Torques.
Featuring solid carbide insert knives with four cutting edges that allow users to rotate the knife when one side becomes dull to provide the highest quality finish available.
Also perfect for surfacing and finishing using timber slab machines.
-Capable of removing thin layers of material, less than 0.001" per pass
-Tool can plunge down to 1/4" , then start resurfacing
-The unique chamfer corner insert design creates a flawless surface
-The 3-wing & 5-wing design results in a more balanced tool while running
Designed for the following materials: MDF, fiberboard, HDF/LDF, plywood/chipboard*, balsa core*, hardwood/softwood*, plastic*
*For optimal results and maximum insert life, replace inserts with optional general purpose knives (sold separately).
Utilizes 4-sided carbide inserts
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Warning: Proper torques rating to tighten down screws is 2-3Nm Torques.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 3/4 in |
| Cut Height, Length, or Width | 3/4 in |
| Diameter (D1) | 1 21/64 in |
| Diameter (D2) | 5/64 in |
| Knives | RCK-453. Optional Solid Wood: RCK-453-DLC |
| Replacement Parts | Screws (5) #67110; key #5005 |
| Note | Make sure your router sled rails are fully stable & squared. |
| Overall Length | 2 15/64 in |
| Shank | 1/2 in |
| Wings | 3 |
