Item # PR1040, Amana Tool Carbide-Tipped Prestige® General Purpose 10 Inch Dia 40T ATB, 18 Deg, 5/8 Bore
$79.72
Download as PDF
Thank you for shopping with us!

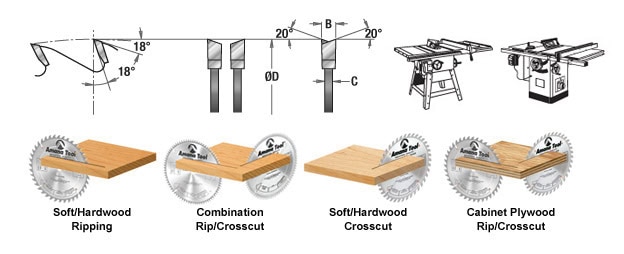

The Amana Tool® Prestige® general purpose blade cuts smoother and stays sharper for longer in solid wood, plywood, MDF, and chipboard. This blade features a massive tool-steel plate (.102" thick!) with expansion slots and copper plugs that practically eliminate vibration. The 40 teeth are ground with a steep 20° bevel angle, alternating left and right, for crisp, clean cuts both across grain and with the grain. The 18° hook angle yields an effortless feed. The precision-ground D-10 carbide teeth are individually computer-verified to have minimal runout.

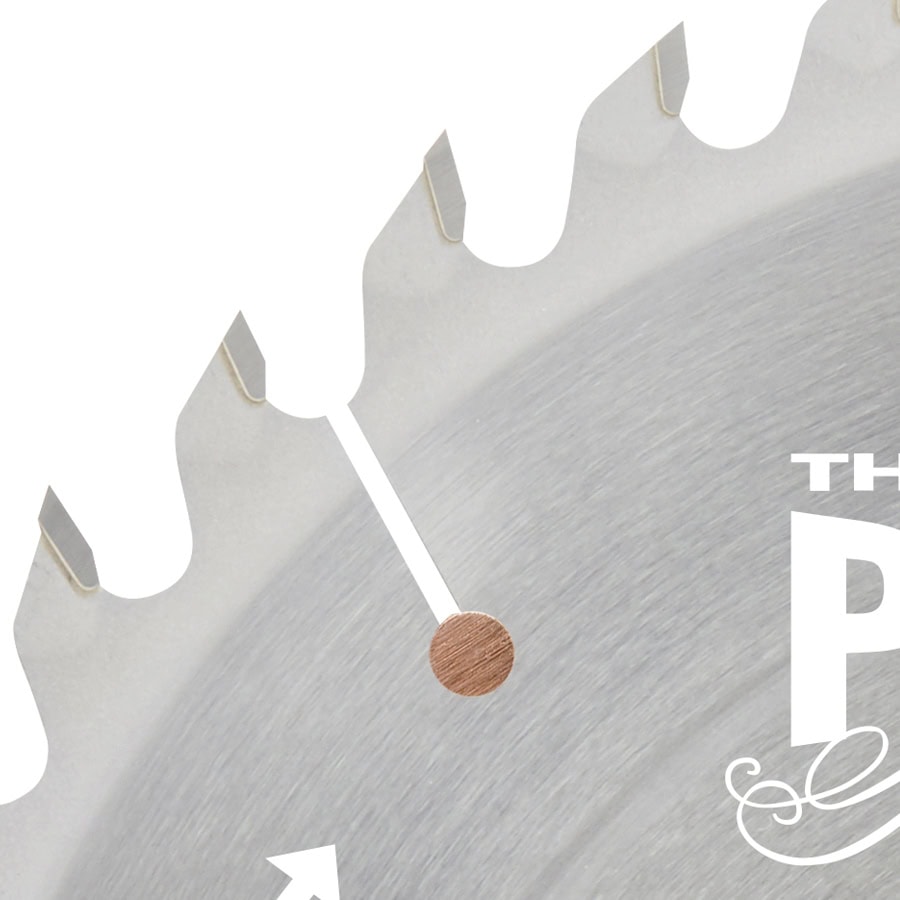

Massive (.102" thick!) tool-steel plate with copper plugs that practically eliminates vibration.
Precision-ground D-10 carbide teeth (20 ATB, hook) are individually computer verified for runout of less than 1/10,000" on all axis.
Prestige® Rated “EXCELLENT” for:
√ Ripping solid wood
√ Crosscutting solid wood
√ Ripping plywood
√ Crosscutting plywood
The Amana Tool® Prestige® general purpose blade cuts smoother and stays sharper for longer in solid wood, plywood, MDF, and chipboard. This blade features a massive tool-steel plate (.102" thick!) with expansion slots and copper plugs that practically eliminate vibration. The 40 teeth are ground with a steep 20° bevel angle, alternating left and right, for crisp, clean cuts both across grain and with the grain. The 18° hook angle yields an effortless feed. The precision-ground D-10 carbide teeth are individually computer-verified to have minimal runout.
Massive (.102" thick!) tool-steel plate with copper plugs that practically eliminates vibration.
Precision-ground D-10 carbide teeth (20 ATB, hook) are individually computer verified for runout of less than 1/10,000" on all axis.
Prestige® Rated “EXCELLENT” for:
√ Ripping solid wood
√ Crosscutting solid wood
√ Ripping plywood
√ Crosscutting plywood
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Bevel | 20 deg bevel angle |
| Diameter | 10 in |
| Pinholes | -- |
| Bore | 5/8 in |
| Grind | ATB |
| Hook Angle | 18 deg |
| Kerf | 0.134 in |
| Plate | 0.102 in |
| Teeth | 40 |
