Item # NF35080, Everlast 350mm 80-Tooth 0.102" Plate 0.134" Kerf Non-Ferrous Metal Cutting Saw - Triple Chip
$212.09
Download as PDF
Thank you for shopping with us!
Designed for smooth, burr free cuts on all types of aluminum extrusions, thin wall tubing and thin gauge sheets with a wall thickness of 1/16 inch to 1/8 inch. These blades work particularly well on double mitre or portable mitre box machines. Please note that a lubricant should always be used during cutting and material should always be firmly secured while being cut.
Saw blades for vinyl window moulding can be supplied upon request.

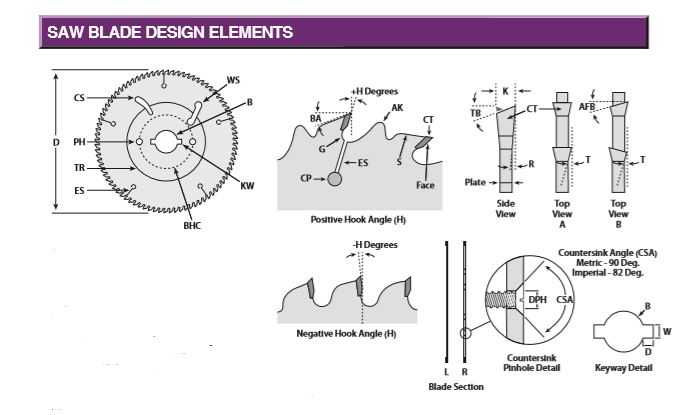

Triple Chip Grind - TCG - This design uses a trapezoidal tooth with 45 deg bevel on each side, which performs the cutting work followed by a lower STR tooth (raker) tooth for clean-out. Strong tooth design for cutting harder materials such as manmade laminates (single-sided) and non-ferrous materials. Can be used for rip cutting and cross cutting.
Designed for smooth, burr free cuts on all types of aluminum extrusions, thin wall tubing and thin gauge sheets with a wall thickness of 1/16 inch to 1/8 inch. These blades work particularly well on double mitre or portable mitre box machines. Please note that a lubricant should always be used during cutting and material should always be firmly secured while being cut.
Saw blades for vinyl window moulding can be supplied upon request.
Triple Chip Grind - TCG - This design uses a trapezoidal tooth with 45 deg bevel on each side, which performs the cutting work followed by a lower STR tooth (raker) tooth for clean-out. Strong tooth design for cutting harder materials such as manmade laminates (single-sided) and non-ferrous materials. Can be used for rip cutting and cross cutting.
| SPECIFICATIONS | |
| Manufacturer | Everlast |
|---|---|
| Diameter | 350 mm |
| Bore | 1 in |
| Grind | TCG |
| Hook Angle | 5 deg |
| Kerf | 3.4 mm |
| Note | -- |
| Pinholes | -- |
| Plate | 2.6 mm |
| Teeth | 80 |
