Item # MD260, Amana Pro-Series Corner Round & Beading Router Bits
$24.94
Download as PDF
Thank you for shopping with us!

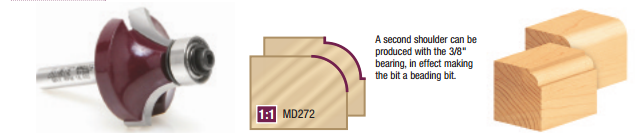

The basic edge-forming bit, the corner-rounding bit, rounds an edge to a given radius. The tool is shouldered to cut a fillet. Can be used to ease edges, as a simple profile, or as a part of a complex one.
2-Flute
Pro-Series Carbide-Tipped
The basic edge-forming bit, the corner-rounding bit, rounds an edge to a given radius. The tool is shouldered to cut a fillet. Can be used to ease edges, as a simple profile, or as a part of a complex one.
2-Flute
Pro-Series Carbide-Tipped
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 5/8 in |
| Bearing(s) | 47706, Amana Tool 3/16 ID x 1/2 OD x .195 Thick Steel Ball Bearing Guide|47702, Amana Tool 3/16 ID x 3/8 OD x .124 Thick Steel Ball Bearing Guide |
| Cut Height, Length, or Width | 15/64 in |
| Overall Length | 1 7/8 in |
| Radius | 1/16 in |
| Shank | 1/4 in |
