Item # LU98R010, Freud Single-Sided Laminate/Melamine Blade: LU98R Series
Original price was: $129.18.$116.26Current price is: $116.26.
Download as PDF
Application: Long Life Production Blades for Single-Sided Laminates, Chipboard, and Other Man-made Materials

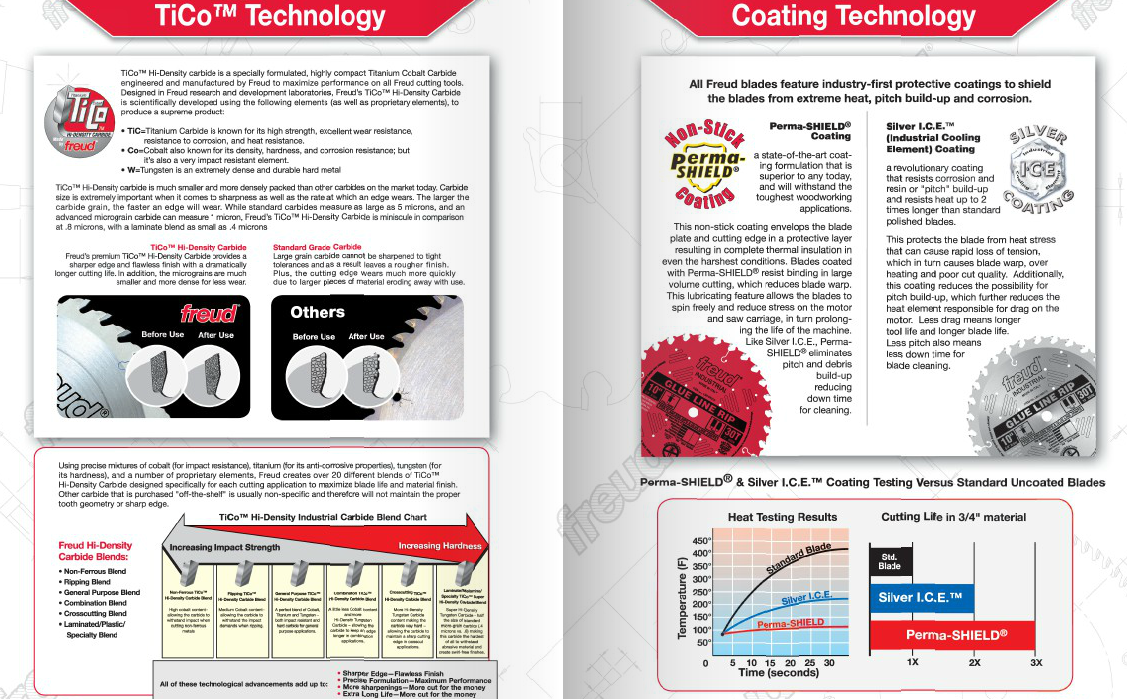

This fast-cutting blade is ideal for a perfect finish on one side of laminates and melamines. The Perma-SHIELD® coating makes these blades resistant to friction and heat buildup. Coated blades pull 1/3 less on the saw, which translates to 33% more cutting power. The 5° or 10° hook angle and a triple chip grind provide fast cuts and long cutting life.
Premium TiCo™ HI-Density Carbide Laminate Blend for Maximum Performance. Triple Chip Grind (TCG) Tooth Design with a positive hook angle for long life in production applications. Positive Hook Angle for fast cutting and easy feed. Perma-Shield® Non-Stick Coating reduces blade drag, protects the blade from corrosion and pitch buildup.
Ideal For: Single-Sided Laminates, Chipboard, and other Man-made Materials. Depth of cut (1/2" min to 2-3/4" max).
Tip: When cutting man-made products such as laminates, melamines, MDF, and particle board, use a blade with Triple Chip Grind (TCG) for longest blade life.
SPECIFICATIONS | |
Diameter | 10 in |
---|---|
Arbor | 5/8 in |
Kerf | .126 in |
Hook Angle | 5 deg |
Plate | .087 in |
Teeth | 80 TCG |
Type | Perma-SHIELD |
Manufacturer | Freud Tools |
