Item # LU5B15, Freud® Saw Blades to Cut Non-Ferrous Metals & PVC: Series LU5B
Original price was: $160.28.$144.25Current price is: $144.25.
Download as PDF
Thank you for shopping with us!
Carbide-Tipped blade for cutting aluminum, non-ferrous metals, and polymeric materials with Freud's exclusive TiCo Hi-Density Carbide designed and manufactured specifically for each cutting application to maximize cutting life.
Silent Sawblade. Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.
Machines: Single or double miter saws with mechanical clamping of the piece.

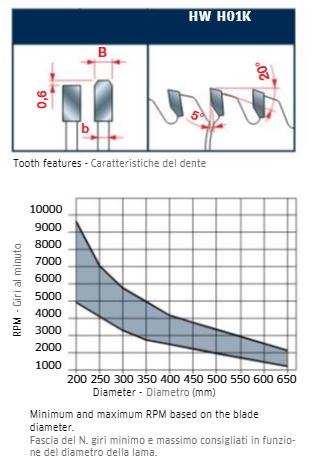

Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals, polymeric materials, PVC extruded profiles.
Non-Ferrous Metals: Ultimate
Plastic materials: Ultimate
PVC: High
Ideal For: To cut drawn products and tubes with a thickness included between 2mm and 5mm, as well as polymeric panels up to 20mm.
Carbide-Tipped blade for cutting aluminum, non-ferrous metals, and polymeric materials with Freud's exclusive TiCo Hi-Density Carbide designed and manufactured specifically for each cutting application to maximize cutting life.
Silent Sawblade. Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.
Machines: Single or double miter saws with mechanical clamping of the piece.
Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals, polymeric materials, PVC extruded profiles.
Non-Ferrous Metals: Ultimate
Plastic materials: Ultimate
PVC: High
Ideal For: To cut drawn products and tubes with a thickness included between 2mm and 5mm, as well as polymeric panels up to 20mm.
| SPECIFICATIONS | |
| Diameter | 350 mm |
|---|---|
| Arbor | 40 mm |
| Kerf | 3.5 mm |
| Pinholes | 2/9/55 + 4/12/64 |
| Plate | 3.0 mm |
| Teeth | 96 |
| Type | Silver Ice |
| Manufacturer | Freud Tools |
