Item # LU5A16, Freud® Saw Blades to Cut Non-Ferrous Metals: Series LU5A
Original price was: $184.21.$165.79Current price is: $165.79.
Download as PDF
Thank you for shopping with us!
Carbide-Tipped blade ideal for cutting aluminum and non-ferrous metals. Incorporates Tri-Metal Brazing, which consists of copper sandwiched between two layers of silver alloy to create a stronger, more impact-resistant bond between the carbide and the blade body.
Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.
Machines: Single or double miter saws with mechanical clamping of the piece.

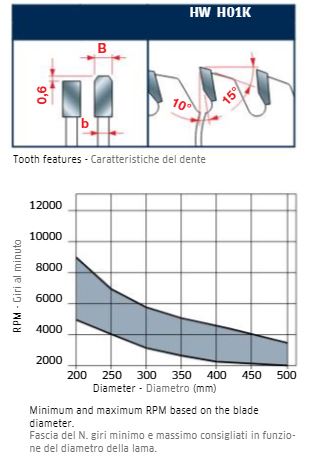

Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals.
Ideal For: To cut solid drawn products with a thickness included between 2mm and 10 mm.
Carbide-Tipped blade ideal for cutting aluminum and non-ferrous metals. Incorporates Tri-Metal Brazing, which consists of copper sandwiched between two layers of silver alloy to create a stronger, more impact-resistant bond between the carbide and the blade body.
Silver I.C.E. Coating prevents build-up on the blade surface and keeps the blade running cooler and cleaner.
Machines: Single or double miter saws with mechanical clamping of the piece.
Features: Flat triple-chip tooth with positive cutting angle.
Material: Aluminum and non-ferrous metals.
Ideal For: To cut solid drawn products with a thickness included between 2mm and 10 mm.
| SPECIFICATIONS | |
| Manufacturer | Freud Tools |
|---|---|
| Diameter | 400 mm |
| Arbor | 30 mm |
| Hook Angle | 10 deg |
| Kerf | 3.5 mm |
| Pinholes | 2/11/63 |
| Plate | 3.0 mm |
| Teeth | 96 |
| Note | -- |
