Item # HG10483-30, Amana Tool Carbide Tipped Hollow Ground 10 Inch Dia x 48T HG, 10 Deg, 30mm Bore
$170.33
Download as PDF
Thank you for shopping with us!

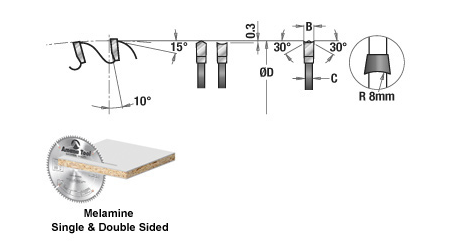

The specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that's ground to a concave profile, produces crisp clean cuts. The positive hook angle is particularly suitable for use on horizontal sliding table saws, such as those made by Striebig®, Altendorf®, SCM, and Holz-Her®.
Note: P.H. denotes pin-hole configuration, if applicable. Example: 2/10/60 = 2 @ 10mm dia on 60mm circle.
Warning: Before use, read saw blade safety guidelines in Amana's catalog.
The specially designed saw blade makes exceptionally smooth cuts in melamine and other coated boards, without the need for scoring. The unique hollow grind, which pairs a triple-chip tooth with a raker tooth that's ground to a concave profile, produces crisp clean cuts. The positive hook angle is particularly suitable for use on horizontal sliding table saws, such as those made by Striebig®, Altendorf®, SCM, and Holz-Her®.
Note: P.H. denotes pin-hole configuration, if applicable. Example: 2/10/60 = 2 @ 10mm dia on 60mm circle.
Warning: Before use, read saw blade safety guidelines in Amana's catalog.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 10 in (253 mm) |
| Bore | 30 mm |
| Grind | Hollow Grind (HG) |
| Kerf | 0.126 in |
| Pinholes | 2/7/42 & 2/10/60 |
| Plate | .087 in |
| Teeth | 48 |
| Hook Angle | 10 deg positive hook |
