Item # DRB-432, Amana Tool CNC Polycrystalline Diamond (PCD) Ball Nose 1/8" Radius x 1/4" Dia x 3/8" Shank 2 Flute Router Bit (Industrial)

$171.54

Download as PDF


If you're looking for the ultimate in tooling you've found it! Our PCD ball nose router bits are

If you're looking for the ultimate in tooling you've found it! Our PCD ball nose router bits are designed to eliminate tool marks that commonly appear when used with plastic and solid surface materials. The cutting edge lasts much longer than carbide for extremely long life.

Diamond is the hardest natural occurring material on earth. PCD tooling is manufactured in a high-temperature and high-pressure laboratory that fuses diamond particles onto a carbide substrate, which allows the diamond to be brazed onto a tool body.

Excellent for Cutting:

-Carbide Fiber Reinforced Plastic (CFRP)
-Composites
-Plastic
-Wood

Warning: Maximum RPM=18,000

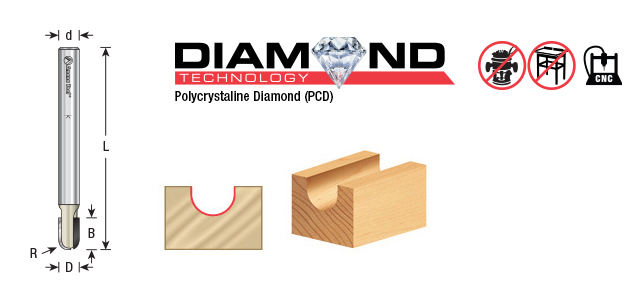

SPECIFICATIONS
ManufacturerAmana Tool
Diameter1/4 in
Cut Height, Length, or Width3/8 in
Flute2
Overall Length2 1/2 in
Radius1/8 in
RPM18,000
Shank1/4 in
