Item # 819-002, Mastercut 4 Flute Upcut Spiral (Hard Plastics)
$27.25
Download as PDF
Thank you for shopping with us!
Material Finish-Top: Poor
Material Finish-Bottom: Excellent
Spiral flute router bits should only be used in automatic feed operations. They are good for use on all materials.
Material Finish-Top: Poor
Material Finish-Bottom: Excellent
Spiral flute router bits should only be used in automatic feed operations. They are good for use on all materials.
Upcut routers are used when a good bottom finish is desired on the material. Chips flow in an upward direction.
Endmill Points are most often found on 3 and 4 flute routers. They are good for achieving a smooth finish on a flat bottom surface, and are commonly used in the plastic routing industry.

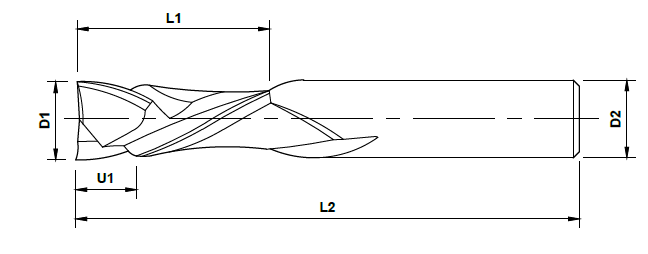

| SPECIFICATIONS | |
| Diameter | 1/8 in |
|---|---|
| Cut Height, Length, or Width | 1/2 in |
| End Pt Type | Endmill |
| Flute Geometry | Upcut |
| Flute | 4 |
| Helix Angle | 30 deg |
| Overall Length | 2 in |
| Shank | 1/4 in |
| Manufacturer | Mastercut |
