Item # 813-104, Mastercut 3 Flute Downcut Spiral
$25.95
Download as PDF Thank you for shopping with us!br />
Material Finish-Top: Excellent
Material Finish-Bottom: Poor
Spiral flute router bits should only be used in automatic feed operations. They’re good for use on all materials.
Downcut routers produce the best finish to the top of the material. Chips flow in a downward direction.
Endmill Points are most often found on 3 and 4 flute routers. They’re good for achieving a smooth finish on a flat bottom surface, and are commonly used in the plastic routing industry.

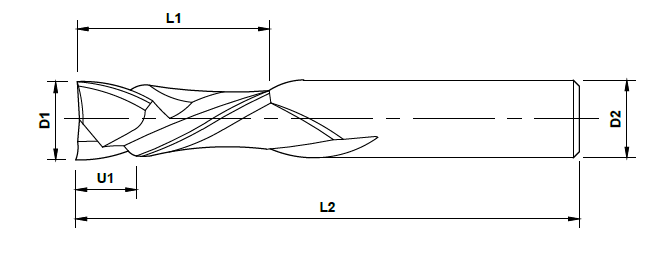

SPECIFICATIONS | |
Diameter | 3/16 in |
---|---|
Cut Height, Length, or Width | 5/8 in |
End Pt Type | Endmill |
Flute Geometry | Downcut |
Flute | 3 |
Helix Angle | 30 deg |
Overall Length | 2 in |
Shank | 1/4 in |
Manufacturer | Mastercut |
