Item # 810-204, Mastercut 2 Flute Mortise Compression
$88.32
Download as PDF Thank you for shopping with us!br />
Material Finish-Top: Excellent
Material Finish-Bottom: Excellent
2 flute routers work well with harder materials, providing an excellent finish to the material.
Endmill Points are most often found on 3 and 4 flute routers. They’re good for achieving a smooth finish on a flat bottom surface, and are commonly used in the plastic routing industry.
Compression routers are best used when both top and bottom finish are important. They’re best used with material that has laminate on both the top and bottom. Chips flow in a sideways direction.

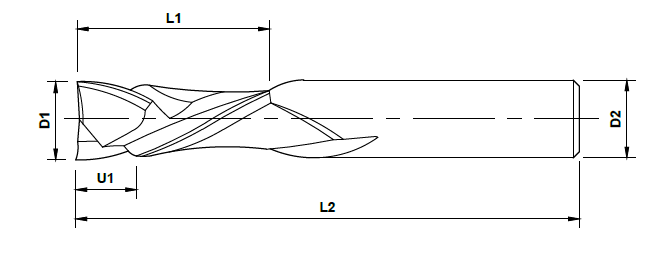

SPECIFICATIONS | |
Diameter | 3/8 in |
---|---|
Cut Height, Length, or Width | 7/8 in |
End Pt Type | Endmill |
Flute Geometry | Mortise |
Flute | 2 |
Helix Angle | 30 deg |
Mortise | 0.188 |
Shank | 3/8 in |
Overall Length | 3 in |
Manufacturer | Mastercut |
