Item # 714280-30, Amana Tool Carbide Tipped Heavy-Duty Ripping 14 Inch Dia x 28T FT, 18 Deg, 30mm Bore
$127.91
Download as PDF
Thank you for shopping with us!
Heavy duty production ripping is this blade's forte. It has all the features needed for use with power feeders and gang-ripping operations, a low tooth count, flat top grind, deep gullets for chip clearance, and a thick plate for reduced vibration.
Heavy duty production ripping is this blade's forte. It has all the features needed for use with power feeders and gang-ripping operations, a low tooth count, flat top grind, deep gullets for chip clearance, and a thick plate for reduced vibration.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 14 in (350 mm) |
| Bore | 30 mm |
| Grind | FT |
| Kerf | 0.173 |
| Teeth | 28 |
| Plate | .110 in |
| Pinholes | 2/7/42 & 2/10/60 |
| Note | P.H. = pin-hole configuration. Example: 2/10/60 = 2 @ 10mm dia on 60mm circle. |

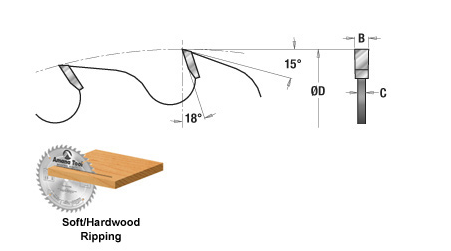

| Hook Angle | 18 deg |
