Item # 61218, Amana Tool 2-Piece Instile™ Insert Carbide Adjustable Tongue & Groove 4 Dia x 1-3/16 x 1-1/4 Bore Set
$326.52
Download as PDF
Thank you for shopping with us!
The perfect fix for undersized plywood flat panel "Mission Style, Arts & Crafts and Shaker" cabinet doors.

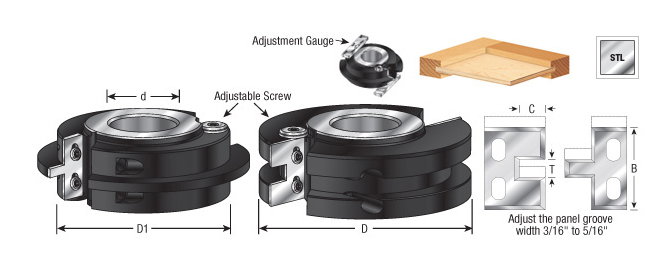

Set includes unique adjustment system and a gauge for precise settings.
-Designed to cut precise grooves to provide undersized plywood veneered panels with a snug, rattle-free fit.
-For 5.5mm undersized 1/4" plywood.
-For 5.9mm oversized 1/4" veneered plywood.
-Adjust the panel groove width 3/16" to 5/16"
-Cut frame stock from 5/8" through 1 3/16" in thickness.
Replacement parts: Knives RCK-236 & RCK-238 consist of one pair each; Screw #67117; Adjusting Screw #67058; Locking Screw #67059. Optional Rub Collar C-033.
The perfect fix for undersized plywood flat panel "Mission Style, Arts & Crafts and Shaker" cabinet doors.
Set includes unique adjustment system and a gauge for precise settings.
-Designed to cut precise grooves to provide undersized plywood veneered panels with a snug, rattle-free fit.
-For 5.5mm undersized 1/4" plywood.
-For 5.9mm oversized 1/4" veneered plywood.
-Adjust the panel groove width 3/16" to 5/16"
-Cut frame stock from 5/8" through 1 3/16" in thickness.
Replacement parts: Knives RCK-236 & RCK-238 consist of one pair each; Screw #67117; Adjusting Screw #67058; Locking Screw #67059. Optional Rub Collar C-033.
| SPECIFICATIONS | |
| Diameter | 4 in |
|---|---|
| Bore | 1 1/4 in |
| Cut Height, Length, or Width | 1-3/16 in |
| Diameter (D1) | 3 1/4 in |
| Overall Length | 4 in |
| Manufacturer | Amana Tool |
| Knives | RCK-236, RCK-238 |
| Replacement Parts | Adjusting Screw #67117, Locking Screw #67059 |
| RPM | 12,900 |
| Rub Collar | C-033 |
