Item # 57190, Amana Tool Carbide-Tipped Corner Rounding with Ultra-Glide™ Radius Bearing Guide Solid Surface 1-5/8" Dia x 3/4 x 1/2" Radius x 1/2" Shank
$102.68
Download as PDF
Thank you for shopping with us!
A unique pilot bearing allows you to produce a true 180° bullnose with this corner rounding bit. Unlike a regular square-edge bearing, it follows the radiused surface produced on the first pass. Will neither leave a flat spot nor gouge the edge. Use the (optional) regular 1/4" x 5/8" steel bearing for the first pass.
Standard steel 1/4" x 5/8" bearing—use #47712 - order separately
A unique pilot bearing allows you to produce a true 180° bullnose with this corner rounding bit. Unlike a regular square-edge bearing, it follows the radiused surface produced on the first pass. Will neither leave a flat spot nor gouge the edge. Use the (optional) regular 1/4" x 5/8" steel bearing for the first pass.
Standard steel 1/4" x 5/8" bearing—use #47712 - order separately
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Cut Depth | 1 in |
| Diameter | 1 5/8 in |
| Cut Height, Length, or Width | 3/4 in |
| Bearing(s) | Standard steel 1/4 in x 5/8 in bearing--use #47712 |
| Diameter (D1) | 5/8 in |
| Flute | 2 w/Nylon Bearing |
| Overall Length | 2 3/4 in |
| Radius | 1/2 in |
| Shank | 1/2 in |
You may also like…
-

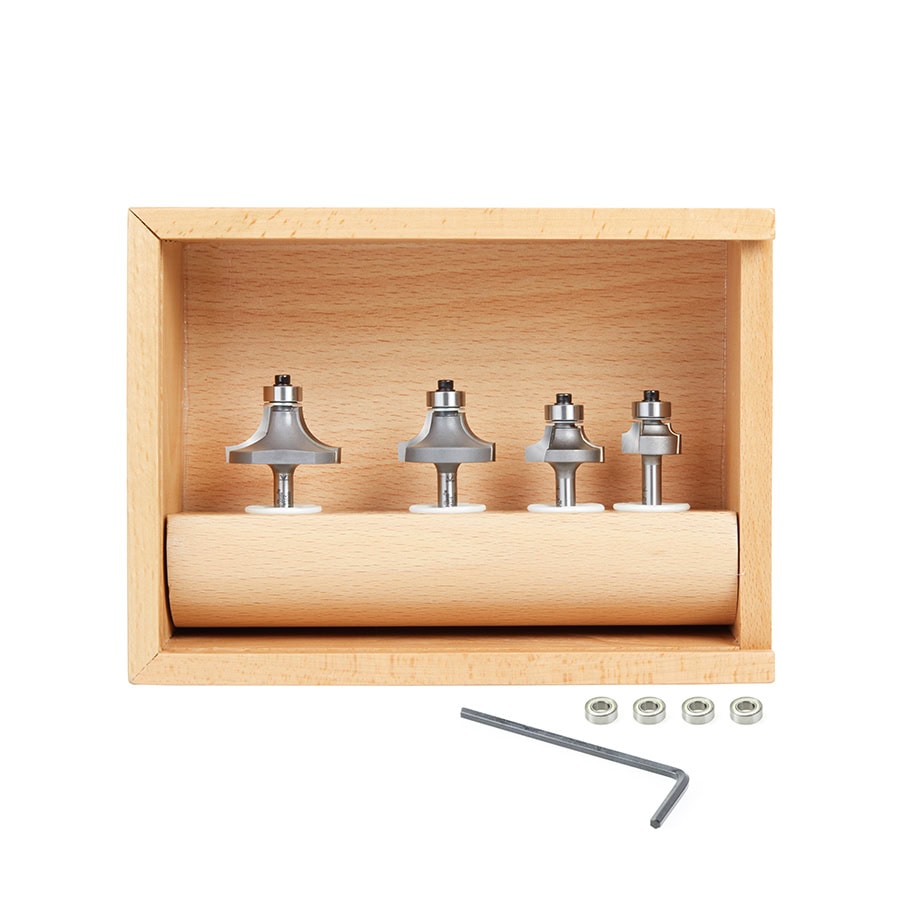

Item #AMS-551, Amana Tool 4-Pc Carbide-Tipped Corner Rounding & Beading Router Bit Set, 1/4 Inch Shank
$139.95
-
Item #AMS-550, Amana Tool 8-Piece Carbide-Tipped 1/4" Shank Corner Round Collection
$265.96
-

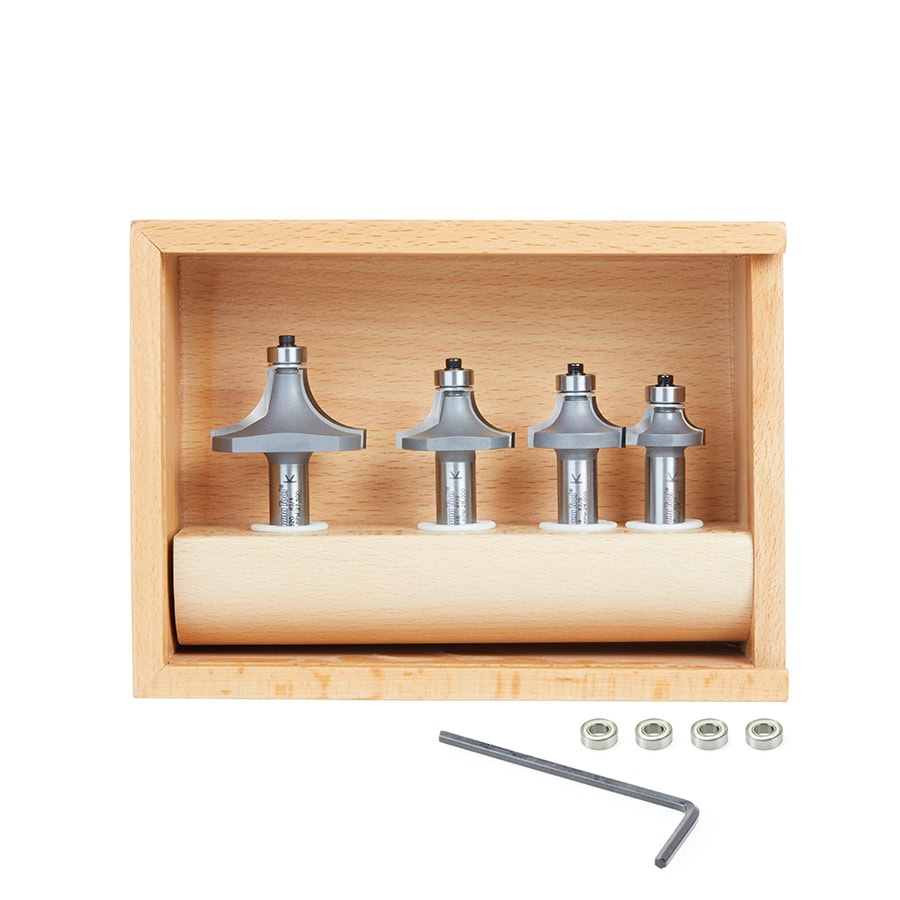

Item #AMS-556, Amana Tool 4-Pc Carbide-Tipped Corner Rounding & Beading Router Bit Set, 1/2 Inch Shank
$156.69
-
Item #47712, Amana Tool 1/4 ID x 5/8 OD x .195 Thick Steel Ball Bearing Guide
$5.59
-

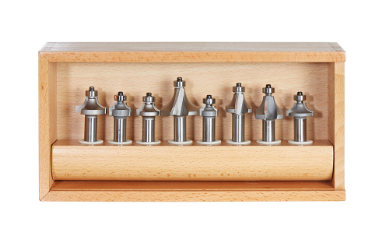

Item #AMS-555, Amana Tool 8-Piece Carbide-Tipped 1/2" Shank Corner Round Collection
