Item # 57171, Amana Tool Karran® Carbide-Tipped Karran Stainless Steel Edge Sinks 24 Deg Bevel Solid Surface 1-3/4 Dia x 7/8 CH x 1/2 Inch Shank Router Bit w/Ultra-Glide™ Ball Bearing Guide
$134.85
Download as PDF
Thank you for shopping with us!

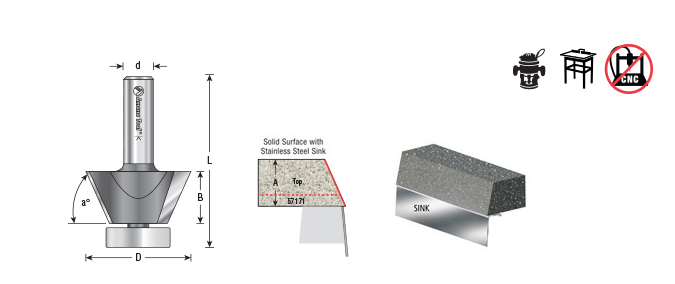

This bit is designed specifically for use for the Karran® stainless steel edge sinks for laminate and 1/2" solid surface materials. The bits trim the countertop edge after the bowl is mounted.
#57171 for use on the Edge Series Sinks with solid surface countertops.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 3/4 in |
| Cut Depth | 1/2 or 3/4 in |
| Cut Height, Length, or Width | 7/8 in |
| Replacement Parts | Key #5009 & #67147 screw |
| Bearing(s) | Ultra-Glide bearing #47797 |
| Flute | 2 w/Nylon Bearing |
| Note | For use on the Edge Series Sinks with solid surface countertops. |
| Overall Length | 2 7/8 in |
| Shank | 1/2 in |
| Type | Bevel |
| Angle | 24 deg |
