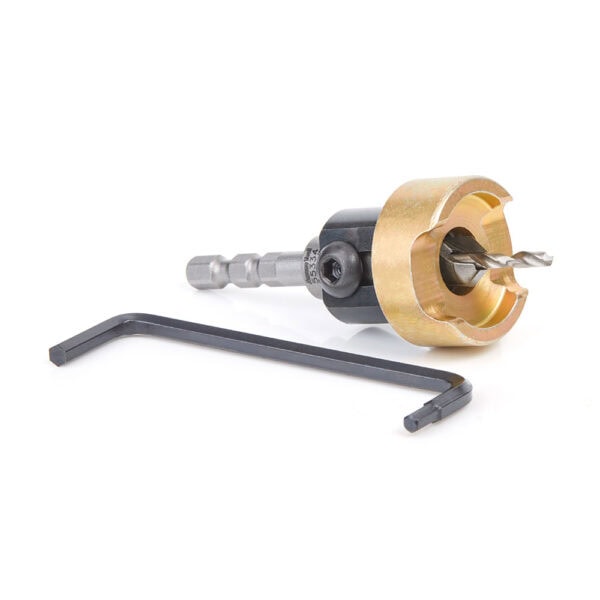

Item # 55336, Amana Tool Carbide-Tipped 82 Degree Countersink with Adjustable Depth Stop and No-Thrust Ball Bearing, Hybrid For Festool CENTROTEC® System 3/8 Dia x 5/32 Drill Dia x 1/4 Inch Quick Release Hex Shank
$56.40
Download as PDF
Thank you for shopping with us!
A must have tool for every woodworker!
Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).
Tools design with a unique shank with hex part and round part.
It fits both Festool® CENTROTEC® drill machines and standard quick-change chucks for ¼” (6.3mm) hex shank.

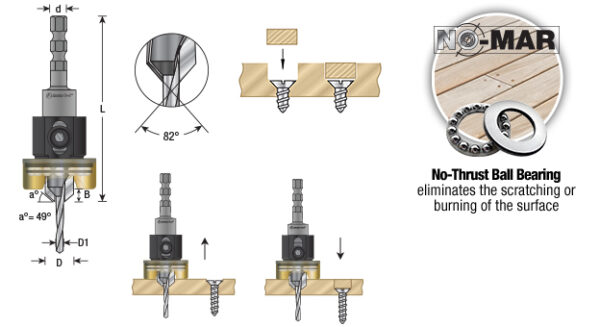

Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.
It also has an open space to allow for chip evacuation.
The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.
Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
2-Wing
Quick release 1/4″ hex shank
Slow spiral, HSS M2 fully ground drill bit included
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous*
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.
A must have tool for every woodworker!
Includes drill (slow spiral, High-Speed-Steel (HSS) M2 fully ground drill bit).
Tools design with a unique shank with hex part and round part.
It fits both Festool® CENTROTEC® drill machines and standard quick-change chucks for ¼” (6.3mm) hex shank.
Features an adjustable, heavy-duty, revolving depth-stop with a strong thrust ball bearing for quick and easy adjustment of the countersink depth without scratching or burning surfaces.
It also has an open space to allow for chip evacuation.
The user friendly design enables control of the drill length and its replacement, without the need to disassemble the depth-stop.
Enables users to drill a pilot hole and tapered countersink in one step.
The adjustable depth-stop and independent stop collar prevent marking of the workpiece and perfect countersink depth control.
2-Wing
Quick release 1/4″ hex shank
Slow spiral, HSS M2 fully ground drill bit included
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous*
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling. Disconnect from any vacuum system. Using Low RPM is recommended.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3/8 in |
| Cut Height, Length, or Width | 3/64-3/8 in |
| Diameter (D1) | 5/32 in |
| Replacement Parts | Drill 630-230; set screws 67070, 67083; hex key 5019 |
| Fits | Festool CENTROTEC drill machines and standard quick-change chucks for (6.3mm) hex shank |
| Includes | Double-sided hex key |
| Overall Length | 2 5/8 in |
| Screw Size | #8 |
| Angle | 49 deg |
