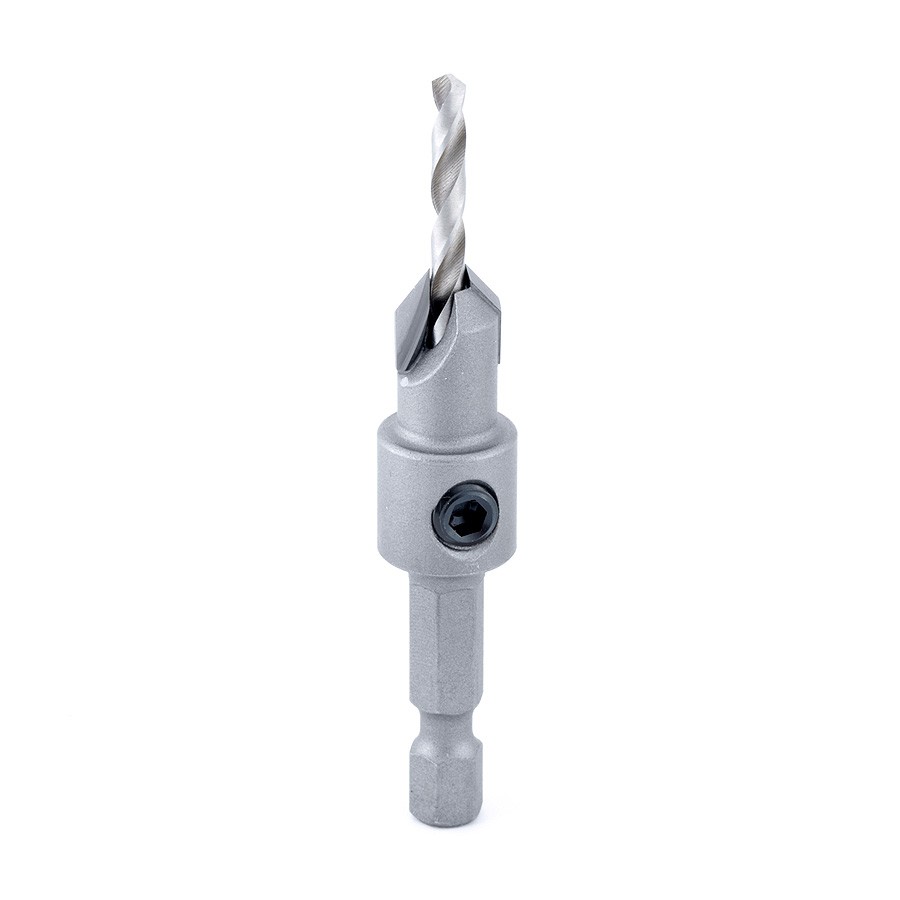

Item # 55264, Amana Tool Carbide-Tipped 82 Degree Countersink 3/8 Dia x 49 Deg x 1/4 Quick Release Hex Shank for Wood Screw #8
$28.69
Download as PDF
Thank you for shopping with us!
Quick release slow spiral; HSS M2 fully ground drill - carbide tipped.
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform and concentric results every time.
Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.
Replacement set screw #67083. Hex key #5009
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Quick release slow spiral; HSS M2 fully ground drill - carbide tipped.
Drill pilot hole and tapered countersink for wood screws. The 2-flute integral design ensures uniform and concentric results every time.
Excellent for Drilling: Natural Woods, Man-Made Boards, MDF, Chipboard, Plywood, Aluminum/Non-Ferrous, Aluminum Composite Material (ACM), Composites, Composite Decking Materials.
Replacement set screw #67083. Hex key #5009
Warning: When drilling aluminum/non-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

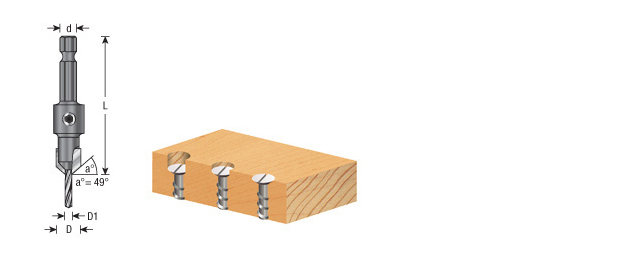

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3/8 in |
| Diameter (D1) | 7/64 in |
| Replacement Parts | 608-120 Optional Depth-Stop; 630-098 Drill Bit; 5009 hex key; 67083 set screw |
| Flute | 2 |
| Hex Shank | 1/4 in |
| Overall Length | 2 1/8 in |
| Screw Size | #8 |
| Angle | 49 deg |
You may also like…
-

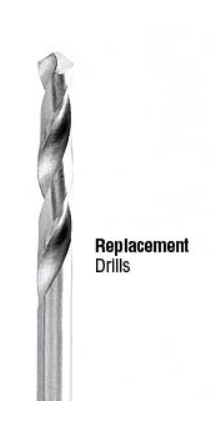

Item #630-098, Amana Timberline HSS Countersink Replacement Drill
$3.19
-
Item #67083, Amana Tool Allen-Type 6mm x 1.0mm Set Screw
$0.90
-

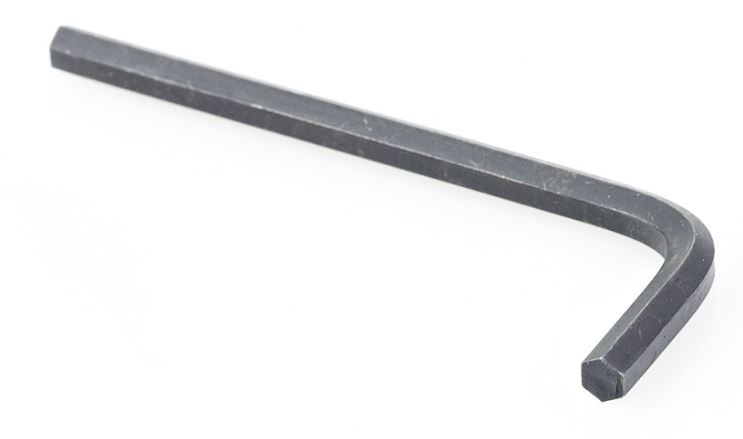

Item #5009, Amana Tool 1/8" Allen-Type Hex Key Short Arm
$0.83
-

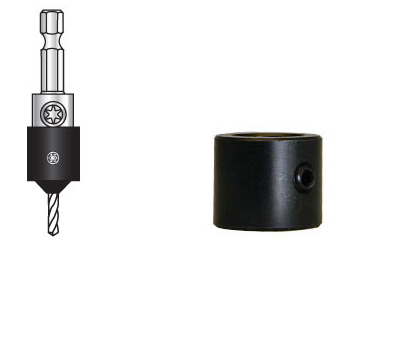

Item #608-120, Amana Timberline Depth Stop for Countersinks
