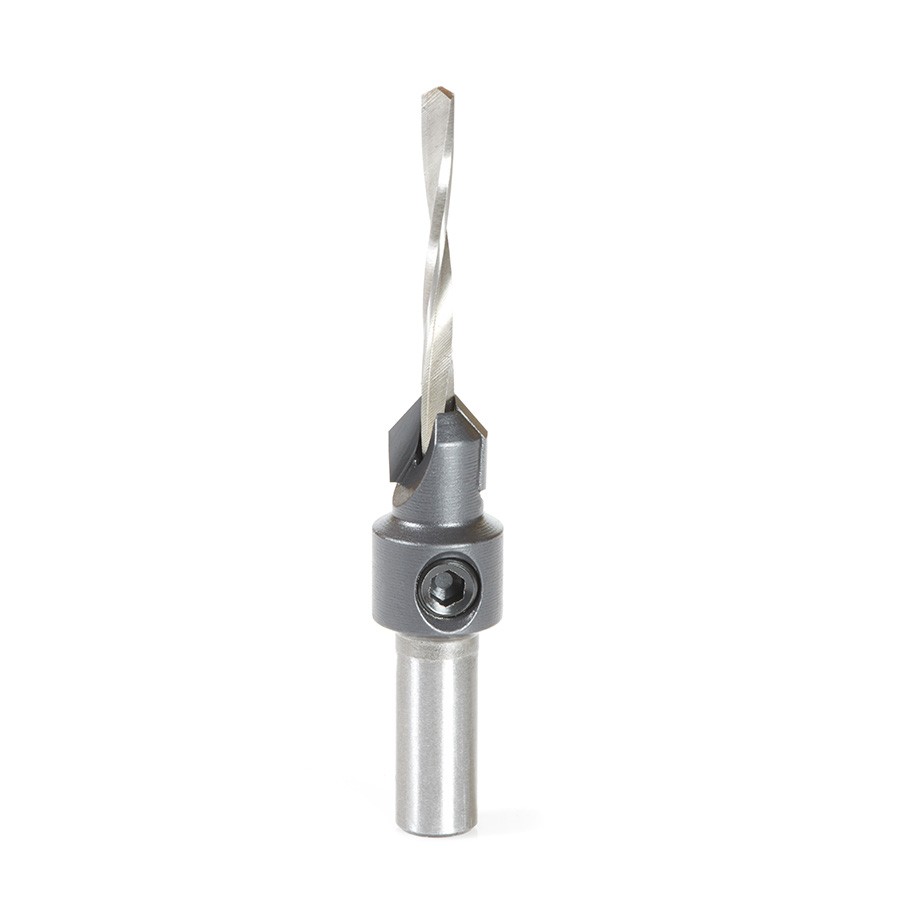

Item # 55202XL, Amana Tool High Performance Carbide-Tipped AlTiN Coated 82 Degree Countersink #6 Screw 3/8 Dia x 1/8 Drill Dia x 5/16 Round Shank
$34.05
Download as PDF
Thank you for shopping with us!
Carbide-tipped. For wood screws. 2-Wing. Slow spiral. HSS M2 DIN 338 fully ground drill.
Used to countersink holes for the heads of screws in woods, plastic, and non-ferrous materials. The 2-flute integral design ensures uniform and concentric results every time. High performance carbide tips with Aluminum Titanium Nitride (AlTiN) coating provide chip free hole edges, last at least 2 times longer than uncoated carbide-tipped, and 100 times longer than steel countersinks. Available in a wide variety of sizes, complete with the HSS M2 fully ground drill bit.
AlTiN coating has many benefits:
Carbide-tipped. For wood screws. 2-Wing. Slow spiral. HSS M2 DIN 338 fully ground drill.
Used to countersink holes for the heads of screws in woods, plastic, and non-ferrous materials. The 2-flute integral design ensures uniform and concentric results every time. High performance carbide tips with Aluminum Titanium Nitride (AlTiN) coating provide chip free hole edges, last at least 2 times longer than uncoated carbide-tipped, and 100 times longer than steel countersinks. Available in a wide variety of sizes, complete with the HSS M2 fully ground drill bit.
AlTiN coating has many benefits:
- Extra wear resistance
- Allows for faster feed and speed rates
- Cutting edge protected from wear
- Better chip evacuation
- Less heat build up
- Superior cutting quality and extended tool life

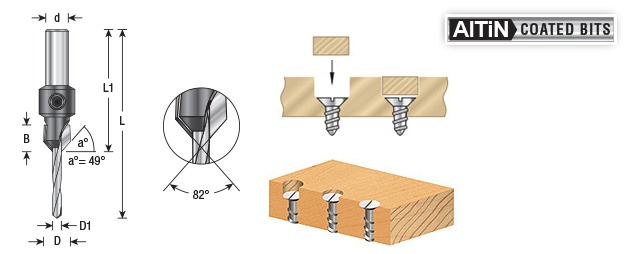

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3/8 in |
| Cut Height, Length, or Width | 1/2 in |
| Diameter (D1) | 1/8 in |
| Replacement Parts | 630-102 |
| Flute | 5/16 in |
| Length | 1 5/8 w/o Drill" |
| Overall Length | 2 9/16 in |
| Screw Size | #6 |
| Shank | 5/16 in |
