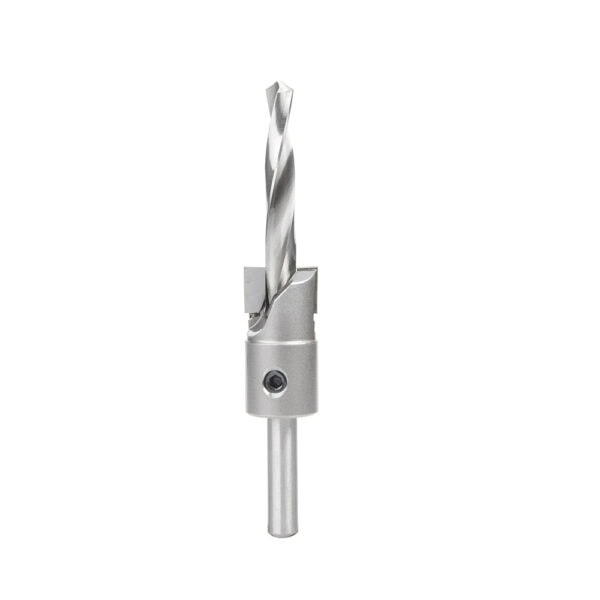

Item # 55142, Amana Tool Carbide-Tipped Shankless Counterbore with Slow Spiral Drill, #24 Screw 3/4 Dia x 3/8 Drill Dia x 3/8 Drill Shank
$50.03
Download as PDF
Thank you for shopping with us!
Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic
Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.
Available in a wide variety of sizes, complete with slow spiral HSS M2 DIN 338 fully ground drill bit.
Excellent for Drilling:
Natural Woods
Man-Made Boards
MDF
Chipboard
Plywood
Aluminum/Non-Ferrous
Aluminum Composite Material (ACM)
Composites
Composite Decking Materials
High Density Polyethylene (HDPE)
Acrylic
Warning: When drilling aluminum-ferrous materials, for optimal results and extended tool life use lubricant or air cooling. Make sure the material is fixed and drill is stable during drilling.

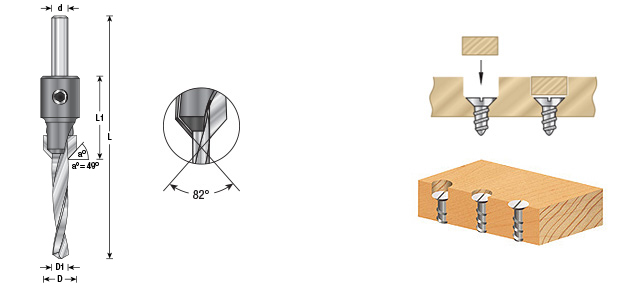

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3/4 in |
| Diameter (D1) | 3/8 in |
| Replacement Parts | 630-706 |
| Length | 1 1/2 in |
| Overall Length | 4 15/16 in |
| Screw Size | #24 |
| Shank | 3/8 in |
| Wings | 2 |
