Item # 514108, Amana Tool Carbide-Tipped Aluminum & Non-Ferrous Metals 14 Inch Dia x 108T TCG, -6 Deg, 1" Bore - For Thin Material

$153.79

Download as PDF
Thank you for shopping with us!

For Thin Material (under 0.25" )

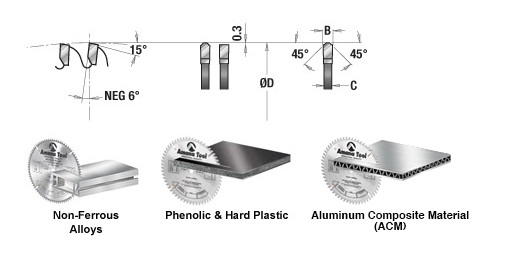

Ideal for cutting aluminum and non-ferrous metal bars such as copper, brass, bronze, and lead. It is also good for cutting extrusions and profiles. The negative hook angle (−6°), triple-chip grind, and thick plate combine to produce a superior finish. The blade can also be used to cut other " difficult" materials such as plastic, PVC tubing, fiberglass, and ACM such as Alucobond®, Dibond®, and Durabond. Use a coolant or blade wax and clamp down the workpiece when cutting non-ferrous metals.

Warning: Never attempt to cut ferrous metals (steel, iron, etc.) with these saw blades!


SPECIFICATIONS
ManufacturerAmana Tool
Bore1 in
Diameter14 in (350 mm)
GrindTCG
Hook Angle6 deg negative hook
Kerf0.126
Pinholes--
Plate.102 in
Teeth108
MaterialFor Thin Material (under 0.25 in)
