Item # 510801C, Amana Tool Electro-Blu™ Carbide-Tipped Aluminum and Non-Ferrous Metals 10 Inch Dia x 80T TCG, -6 Deg, 5/8 Bore, Non-Stick Coated - For Thin Material
$116.03
Download as PDF
For Thin Material (under 0.25" )

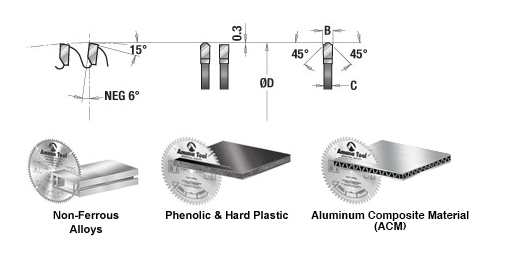

Ideal for cutting aluminum and non-ferrous metal bars such as copper, brass, bronze, and lead. It is also good for cutting extrusions and profiles. The negative hook angle (−6°), triple-chip grind, and thick plate combine to produce a superior finish. The blade can also be used to cut other " difficult" materials such as plastic, PVC tubing, fiberglass, and ACM such as Alucobond®, Dibond®, and Durabond. Use a coolant or blade wax and clamp down the workpiece when cutting non-ferrous metals.
Warning: Never attempt to cut ferrous metals (steel, iron, etc.) with these saw blades!
Benefits of Electro-Blu™ Coating
Reduces resin accumulation and heat build-up
Tips stay sharper longer resulting in extended blade life
Applied by using an electrostatic bonding process
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Bore | 5/8 in |
| Diameter | 10 in (250 mm) |
| Grind | TCG |
| Hook Angle | 6 deg negative hook |
| Kerf | 0.126 |
| Pinholes | --- |
| Plate | .102 in |
| Teeth | 80 |
| Material | For Thin Material (under 0.25 in) |
