Item # 49519, Amana Tool Corner Rounding Carbide-Tipped 2-Flute w/Ball Bearing Guide
$55.46
Download as PDF
Thank you for shopping with us!

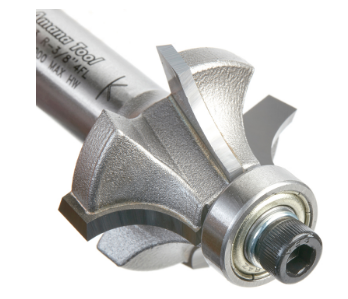

A basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as part of a complex one. Also known as a roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Warning: Maximum RPM = 28,000
A basic edge-forming bit, the corner-rounding bit rounds an edge to a given radius. The tool is shouldered to cut a fillet. The cut can be used to ease edges, as a simple profile, or as part of a complex one. Also known as a roundover, rounding over, and quarter-round. If a smaller pilot bearing is used, a second shoulder can be produced, in effect making the bit a beading bit.
Warning: Maximum RPM = 28,000
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 3/4 in |
| Cut Height, Length, or Width | 7/8 in |
| Diameter (D1) | 0.5 in |
| Bearing(s) | 47706 |
| Flute | 2 w/Bearing |
| Knives | -- |
| Note | -- |
| Overall Length | 2 3/4 in |
| Radius | 5/8 in |
| Shank | 1/2 in |
| RPM | Warning: Maximum RPM = 28,000 |
