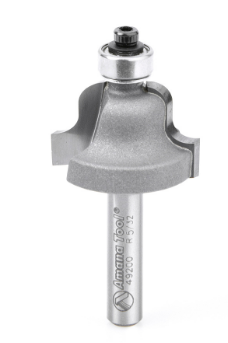

Item # 49200, Amana Tool Roman Ogee Carbide-Tipped 1" Dia x 5/32" Radius x 27/64 CH x 1/4" Shank 2-Flute w/Ball Bearing Guide
$34.84
Download as PDF
Thank you for shopping with us!
Amana Tool Roman Ogee Carbide-Tipped 1" Dia x 5/32" Radius x 27/64 CH x 1/4" Shank 2-Flute w/Ball Bearing Guide
The Roman ogee bit, which has a convex curve coming off the bearing, produces the reverse of the ogee (it isn't an upside down ogee). The curve starts at the top as a concave, and fairs down into a convex curve. Use in a handheld or table-mounted router.
Amana Tool Roman Ogee Carbide-Tipped 1" Dia x 5/32" Radius x 27/64 CH x 1/4" Shank 2-Flute w/Ball Bearing Guide
The Roman ogee bit, which has a convex curve coming off the bearing, produces the reverse of the ogee (it isn't an upside down ogee). The curve starts at the top as a concave, and fairs down into a convex curve. Use in a handheld or table-mounted router.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 in |
| Cut Height, Length, or Width | 5/8 in |
| Bearing(s) | Replacement Bearing 47704 |
| Flute | 2 w/Bearing |
| Overall Length | 2 1/8 in |
| Radius | 5/32 in |
| Shank | 1/4 in |
