Item # 47636, Amana Tool 10mm Shank Dowel Drill/Boring Bit Adapter for CNC Standard Collet/Tool Holder
$24.26
Download as PDF
Thank you for shopping with us!

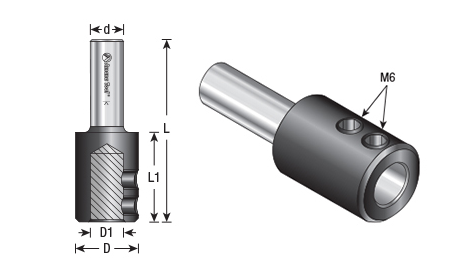

Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.
Total Indicated Run-out (TIR) is 0.00118" (0.03mm) Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.
Warning: Max RPM = 10,000
Made especially to run 10mm shank dowel drills and boring bits on a CNC machine. Accommodates the flat area on the 10mm round drill bit shank, secure with the 2 set screws (M6), same method as on boring machines.
Total Indicated Run-out (TIR) is 0.00118" (0.03mm) Note: When securing drill bit into the adapter, make sure to align the flat part of the shank with both set screws.
Warning: Max RPM = 10,000
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 3/4 in |
| Diameter (D1) | 10 mm |
| Length | 1 1/16 in Body Length |
| Overall Length | 2 5/32 in |
| RPM | Max 8,000 |
| Shank | 1/4 in |
| Replacement Parts | Screws (2) 67075; Wrench 5004 |
