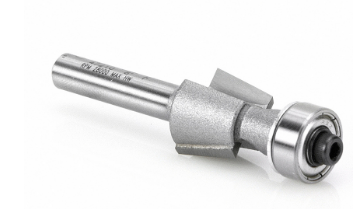

Item # 47210, Amana Tool Special Bevel Trim Carbide-Tipped 8° 5/8" Dia x 15/32" x 1/4" Shank 2-Flute with Ball Bearing Guide
$30.08
Download as PDF
Thank you for shopping with us!
A very shallow bevel angle, the gap between the cutting edges, and the ball bearing pilot are the key features of this Amana Tool Special Bevel Trim Carbide-Tipped 8° 5/8" Dia x 15/32" x 1/4" Shank 2-Flute with Ball Bearing Guide.
The gap collects adhesive residue that usually fouls the pilot and thus degrades the cut.
A very shallow bevel angle, the gap between the cutting edges, and the ball bearing pilot are the key features of this Amana Tool Special Bevel Trim Carbide-Tipped 8° 5/8" Dia x 15/32" x 1/4" Shank 2-Flute with Ball Bearing Guide.
The gap collects adhesive residue that usually fouls the pilot and thus degrades the cut.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 5/8 in |
| Cut Height, Length, or Width | 15/32 in |
| Bearing(s) | Standard replacement bearing (.500 in dia) #47706 or new #47715 (.492 in dia) for use after resharpening |
| Flute | 2 w/Bearing |
| Note | A special 8 deg bevel tool with a gap (.287 in) to reduce glue build-up |
| Overall Length | 2 1/4 in |
| Shank | 1/4 in |
| Angle | 8 deg |
