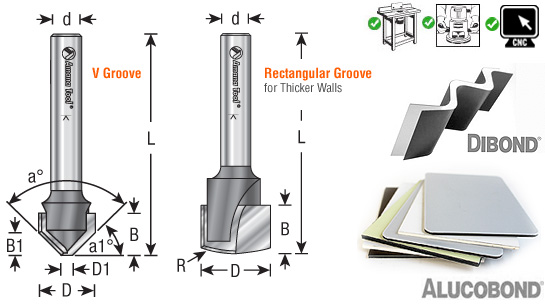

Item # 45792-M, Amana Tool 1/2" D x 3/8" CH x 6mm Shank CNC Double-Edge Folding V & Rectangular Groove for Shaping Aluminum Composite Material Carbide-Tipped Router Bit

$47.70

Download as PDF
Thank you for shopping with us!

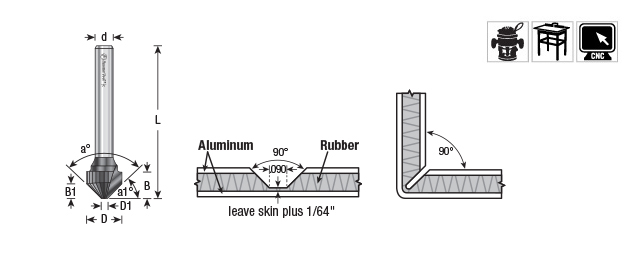

These bits are widely used as cladding for many diverse applications such as office buildings, hospitals, convention centers, airports, hotels. Routing V-shaped & Rectangular grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand.

Designed for cutting and scoring aluminum sandwich materials including:

  • Aluminum, Clay, Zinc & Wood Composite Panels
  • Aluminum Composite Materials (ACM)
  • Aluminum Composite Panel (ACP)*
  • Aluminum 5052
  • ALPOLIC® Copper Composite Material (CCM)
  • Alucobond®
  • Alupanel®
  • Dibond®
  • Durabond**
  • e-panel™
  • Etalbond®
  • Phenolics
  • Plastic/Acrylic
  • Plexiglas®
  • Titanium Composite Material (TCM)
  • Wood

*Aluminum Composite Panel (ACP) is a type of ACM flat panel that consists of two thin aluminum sheets bonded to a non-aluminum core. ACPs are frequently used for external cladding or facades of buildings, insulation, and signage. **Durabond is a polyethylene core with 0.3mm colored aluminum sheet on either side, pre-finished requiring no decoration.


SPECIFICATIONS
Diameter1/2 in
Cut Height, Length, or Width3/8 in
Diameter (D1)0.090 in
Length
ManufacturerAmana Tool
Note--
Overall Length2 in
Shank6 mm
TypeV
Angle90 deg / 45 deg (a1)
