Item # 45762, Amana Tool CNC AlTiN Coated Double Edge Folding V Groove for Shaping Composite Materials, Solid Carbide
$74.66
Download as PDF
Thank you for shopping with us!

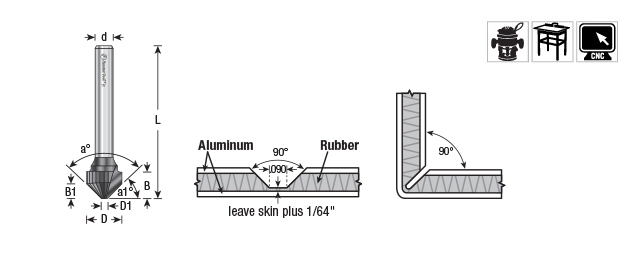

The carbide cutting tip is brazed to a steel shank specially designed to cut grooves in composite building materials. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Special Amana-grade carbide provides much longer tool life, especially compared to carbide-tipped tooling.
Composite Material Panels like TCM, CCM, and ACM are widely used for cladding many diverse exterior and interior applications, such as office buildings, hospitals, convention centers, airports, and hotels. The long-lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.
Designed for cutting and scoring steel sandwich material including: Steel Composite Material (SCM) & Titanium Composite Material (TCM).
AlTiN coating has many benefits:
•Extra wear resistance
•Allows for faster feed and speed rates
•Cutting edge protected from wear
•Better chip evacuation
•Less heat build up
•Superior cutting quality and extended tool life
The carbide cutting tip is brazed to a steel shank specially designed to cut grooves in composite building materials. Routing V-shaped grooves, whereby the aluminum cover and a part of the polyethylene core is removed, allows folding/creasing the remaining material by hand. Special Amana-grade carbide provides much longer tool life, especially compared to carbide-tipped tooling.
Composite Material Panels like TCM, CCM, and ACM are widely used for cladding many diverse exterior and interior applications, such as office buildings, hospitals, convention centers, airports, and hotels. The long-lasting durability of the material makes it an excellent choice for buildings, signage, displays, etc.
Designed for cutting and scoring steel sandwich material including: Steel Composite Material (SCM) & Titanium Composite Material (TCM).
AlTiN coating has many benefits:
•Extra wear resistance
•Allows for faster feed and speed rates
•Cutting edge protected from wear
•Better chip evacuation
•Less heat build up
•Superior cutting quality and extended tool life
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1/2 in |
| Cut Height, Length, or Width | 3/8 in |
| Overall Length | 2 1/8 in |
| Shank | 1/4 in |
| Angle | 90 deg |
