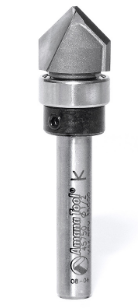

Item # 45750, Amana Tool Carbide-Tipped V-Groove 90° x 1/2" Dia x 1/2" CH x 1/4" Shank with Upper BB
$47.85
Download as PDF
Thank you for shopping with us!
Designed for fluting and V-grooving cuts guided by a template or pattern. The shank-mounted ball-bearing pilot rides along the template edge, and the cutter duplicates the template contour in the workpiece. With a handheld router, the template must be on top of the workpiece; with a table-mounted router, the template must be on the bottom of the workpiece.
45750: 90° V-Groove bit is for decorative purposes and is not intended for 'miter-folding,' etc.
Designed for fluting and V-grooving cuts guided by a template or pattern. The shank-mounted ball-bearing pilot rides along the template edge, and the cutter duplicates the template contour in the workpiece. With a handheld router, the template must be on top of the workpiece; with a table-mounted router, the template must be on the bottom of the workpiece.
45750: 90° V-Groove bit is for decorative purposes and is not intended for 'miter-folding,' etc.
| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1/2 in |
| Cut Height, Length, or Width | 1/2 in |
| Flute | 2 w/Bearing |
| Note | For decorative purposes; not intended for miter-folding, etc. |
| Overall Length | 2 in |
| Radius | -- |
| Shank | 1/4 in |
| Type | V-Groove |
| Angle | 90 deg |
| Replacement Parts | Bearing 47701; Collar 47724 |
