Item # 45700, Amana Tool Carbide-Tipped V-Groove 90 Deg x 3/8" Dia x 5/8" CH x 1/4" Shank
$29.03
Download as PDF
Thank you for shopping with us!
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted, and CNC routers.
2 flute 60° V-Groove bit designed for lettering, signmaking, and decorative work.
Excellent for cutting:
Cut decorative V-Grooves and lettering on signs with these V-Groove bits. Use with an edge guide to chamfer and bevel edges. Can be used with handheld, table-mounted, and CNC routers.
2 flute 60° V-Groove bit designed for lettering, signmaking, and decorative work.
Excellent for cutting:
- Wood
- PVC Plastic
- Sign Board
- Solid Surface
- Plywood
- Veneered Plywood
- Xanita® Board
- 20lbs High Density Urethane
- Acrylic
- Foam
- Laminate
- Melamine
- MDF/HDF

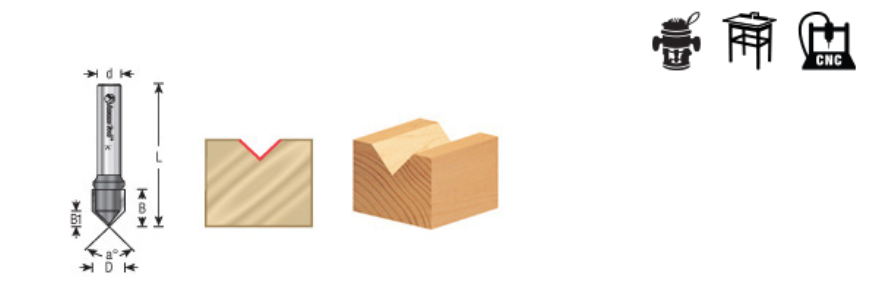

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| B1 | 3/16 in |
| Diameter | 3/8 in |
| Cut Height, Length, or Width | 7/16 in |
| Flute | 2 |
| Note | -- |
| Overall Length | 1 5/8 in |
| Shank | 1/4 in |
| Angle | 90 deg |
