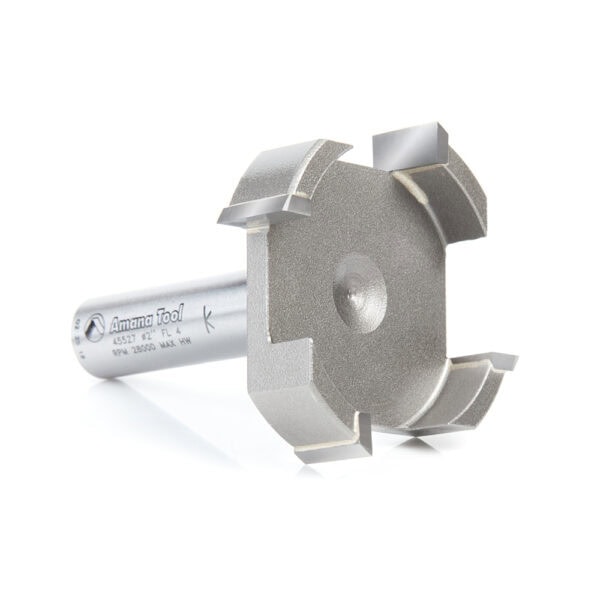

Item # 45527, Amana Tool Carbide-Tipped Spoilboard Surfacing, Rabbeting, Flycutter, Slab Leveler, Surface Planer & Flattening 2 Dia x 1/2 x 1/2 Inch Shank Router Bit
$78.30
Download as PDF
Thank you for shopping with us!
Carbide-tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing. Perfect for removing fine layers of materials.
Also suitable for router sled machines. Make sure your router sled is fully stable and squared.
Perfect for:
Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting
Designed for planing & rabbeting the following materials:
MDF
Fiberboard
HDF/LDF
Balsa Core
Plastic/Acrylic**
Chipboard
Hardwood/Softwood
**Use lower CNC spindle RPM and adjusted feed-rate to prevent melting and adhesion of the acrylic material to the tool.
Featuring:
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process
Carbide-tipped spoilboard surfacing & rabbeting router bit great for cutting tight corners and surface planing. Perfect for removing fine layers of materials.
Also suitable for router sled machines. Make sure your router sled is fully stable and squared.
Perfect for:
Resurfacing spoilboards using CNC
Planing large glued up panels using CNC
Surfacing and finishing wood using timber slab machines
Rabbeting or slotting
Designed for planing & rabbeting the following materials:
MDF
Fiberboard
HDF/LDF
Balsa Core
Plastic/Acrylic**
Chipboard
Hardwood/Softwood
**Use lower CNC spindle RPM and adjusted feed-rate to prevent melting and adhesion of the acrylic material to the tool.
Featuring:
Exclusive carbide grade for highest quality of cut
Maximum cutting efficiency
Faster material removal process

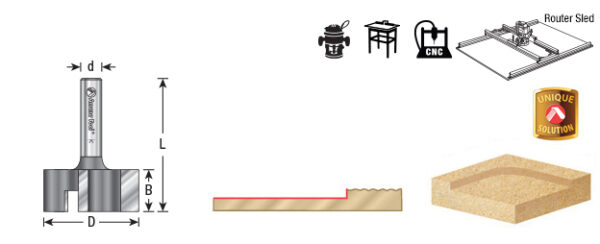

SPECIFICATIONS | |
Manufacturer | Amana Tool |
---|---|
Diameter | 2 in |
Cut Height, Length, or Width | 1/2 in |
Flute | 4 |
Overall Length | 2 1/2 in |
RPM | 28,000 |
Shank | 1/2 in |
