Item # 420-60, Amana Professional Quality Ogee Window Sash & Rail
$119.98
Download as PDF
Thank you for shopping with us!

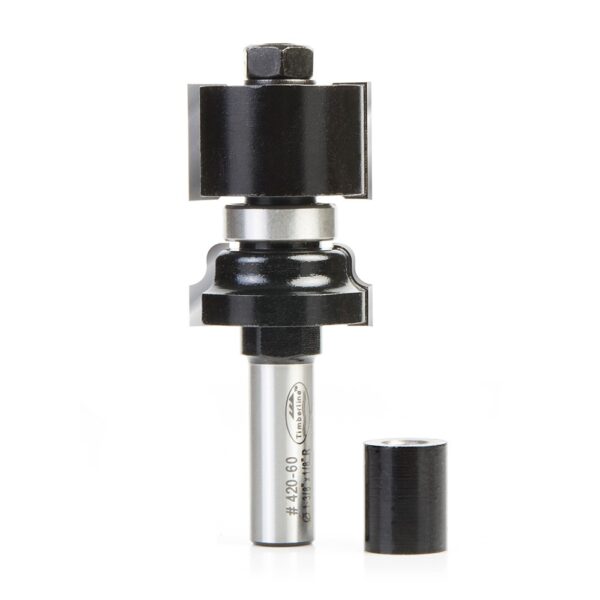

Designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins. Assembly includes an ogee profile cutter, a rabbet cutter, one bearing, a 1/2" shank arbor, spacers, shims, and washers.

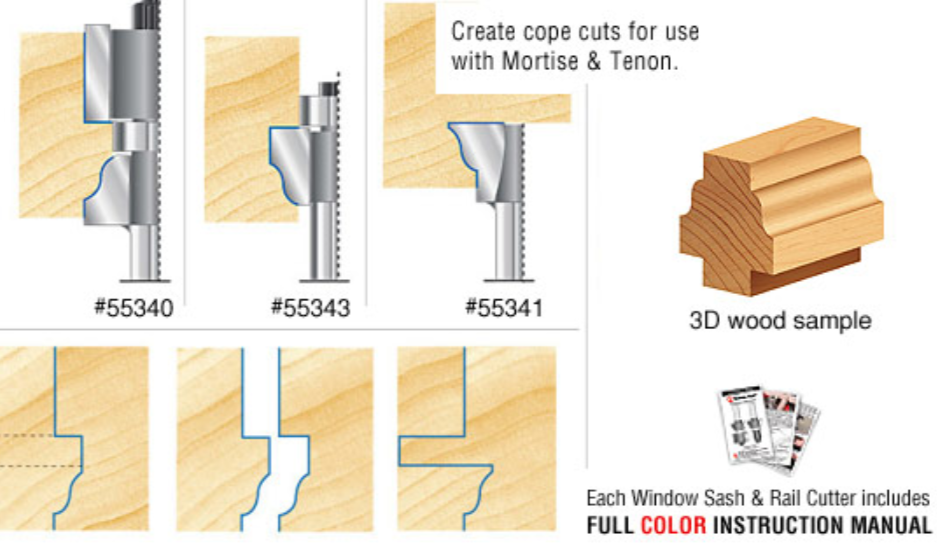

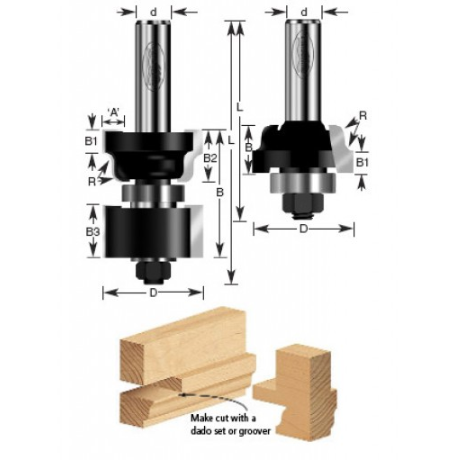

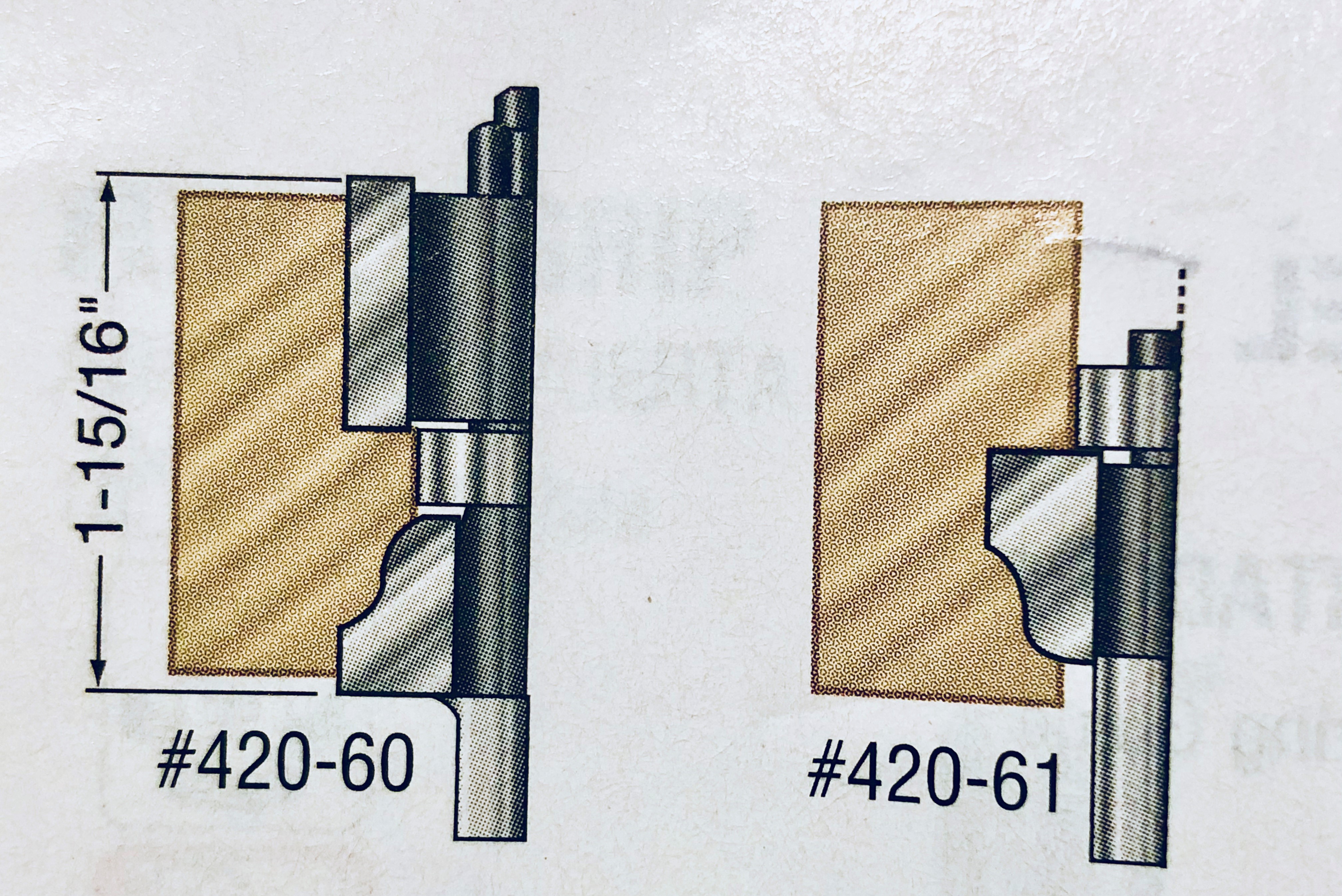

Configure as shown in the drawing to cut profile and rabbet on all parts. Switch bearing and profile cutter and replace rabbet cutter with spacers to rout the copes. Use in a table-mounted router.
Warning! Maximum RPM = 18,000
1/2" shank - 2-wing w/ball bearing guide
3/4" to 1 3/4" material
Designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins. Assembly includes an ogee profile cutter, a rabbet cutter, one bearing, a 1/2" shank arbor, spacers, shims, and washers.
Configure as shown in the drawing to cut profile and rabbet on all parts. Switch bearing and profile cutter and replace rabbet cutter with spacers to rout the copes. Use in a table-mounted router.
Warning! Maximum RPM = 18,000
1/2" shank - 2-wing w/ball bearing guide
3/4" to 1 3/4" material

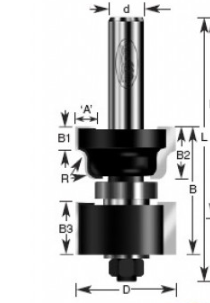

| SPECIFICATIONS | |
| Manufacturer | Amana Tool |
|---|---|
| Diameter | 1 3/8 in |
| B1 | 5/16 in |
| Cut Depth | 1/4 in |
| Cut Height, Length, or Width | 1 13/16 in |
| Overall Length | 3 3/4 in |
| Radius | 1/8 in |
| Shank | 1/2 in |
| Wings | 2 |
