Item # 3520, Whiteside Machine Radius Flute Cutter
$41.70
Discount per Quantity
| Quantity | 10 - 24 | 25 - 49 | 50 + |
|---|---|---|---|
| Discount | 10% | 15% | 20% |
| Price | $37.53 | $35.45 | $33.36 |
Download as PDF
Thank you for shopping with us!

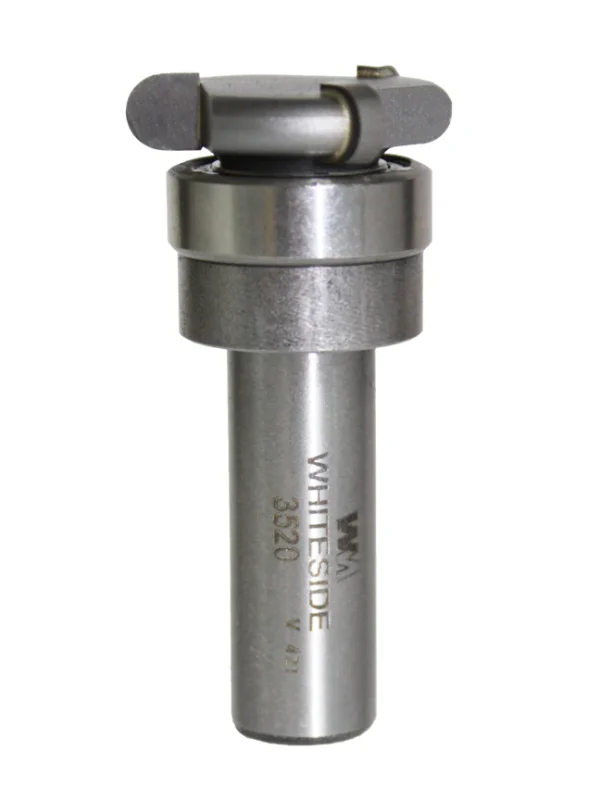

This bit is sold individually as a 1/8" Radius Fluting Bit (#3520) or Beading Bit (#3530). When used together to edge 1/4" thick stock, the resulting joint allows each strip to be angled. This allows assembly in a curved configuration for numerous projects such as canoe hulls.
Wood block shows the joint made using both the #3520 and #3530.
Materials: Natural woods, composite woods, hard plastics
Recommended RPM: 14,000-16,000 (max 18,000)
| SPECIFICATIONS | |
| Manufacturer | Whiteside Machine |
|---|---|
| Cut Depth | 1/8 in |
| Cut Height, Length, or Width | 1/4 in cut length |
| Large Diameter | 1 1/8 in |
| Overall Length | 2 1/4 in |
| Radius | 1/8 in |
| RPM | 14,000-16,000 (max 18,000) |
| Shank | 1/2 in |
| Style | Flute Style Canoe Making |
