Amana Tool In-Tech™ Replaceable Insert Solid Carbide Knife Router Bit SystemThank you for shopping with us! These popular insert router bit profiles provide all woodworkers access to the industrial-grade technology, at an affordable price. By replacing worn knives instead of sharpening standard carbide-tipped bits, router bit dimensions, cutting quality, and accuracy remain constant during the life of the tool.
Benefits of the in-Tech™ Series include:
Profile Sample RC-45904: |
Download as PDF| Item # | Images | Manufacturer | Diameter | Bearing(s) | Cut Height, Length, or Width | Flute | Knives | Overall Length | Radius | Shank | Angle | Style | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

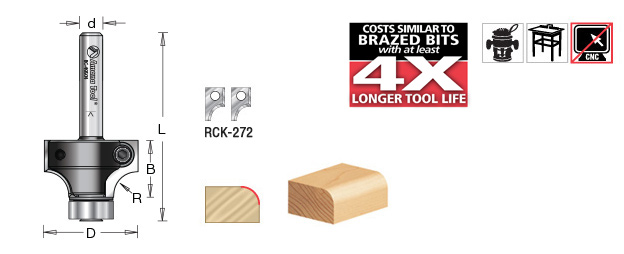

| RC-49504 |
0
|
Amana Tool | 1 in | 47706 | 1/2 in | 2 | RCK-272 (2) | 2 1/16 in | 1/4 in | 1/4 in | -- | Corner Round | $42.75 | Add to cart | |
| RC-49104 |
1
|
Amana Tool | 1 in | -- | 1/2 in | -- | RCK-274 (2) | 2 1/16 in | 1/4 in | 1/4 in | -- | Cove | $38.93 | Add to cart | |
| RC-54111 |
2
|
Amana Tool | 1 1/32 in | 47706 | 5/8 in | 2 | RCK-276 (2) | 2 3/8 in | 3/16 in | 1/4 in | -- | Ogee Fillet | $30.75 | Add to cart | |
| RC-49300 |
3
|
Amana Tool | 1 1/8 in | 1/2 in | 2 | RCK-274 (2) | 1 7/8 in | -- | 1/4 in | -- | Insert Rabbeting | $40.76 | Add to cart | ||
| RC-47104 |
4
|
Amana Tool | 1/2 in | 47706 | 20 mm | 2 | RCK-262 (2) | 2 5/16 in | -- | 1/4 in | -- | Flush Trim | $38.85 | Add to cart | |
| RC-49496 |
5
|
Amana Tool | 1 in | 47706 | 3/8 in | -- | RCK-268 (2) | 2 3/16 in | 1/8 in | 1/4 in | 45 deg | (2 in 1) Corner Round or Bevel | $68.33 | Add to cart | |
| RC-45711 |
6
|
Amana Tool | 11/16 in | -- | 21/64 in | 1 | AMA-12 (1) | 1 61/64 in | -- | 1/4 in | 90 deg | V-Groove/Signmaking | $29.81 | Add to cart | |
| RC-45712 |
7
|
Amana Tool | 11/16 in | -- | 21/64 in | 1 | AMA-12 (1) | 2 3/16 in | -- | 1/2 in | 90 deg | V-Groove/Signmaking | $58.24 | Add to cart | |
| RC-45910 |
8
|
Amana Tool | 1/2 in | 47701 | 1/2 in | 1 | RCK-266 (1) | 2 1/8 in | 1/4 in | 1/4 in | -- | Core Box | $34.76 | Add to cart | |
| RC-45226 |
9
|
Amana Tool | 1/2 in | -- | 30 mm | 1 | AMA-30 (1) | 2 5/8 in | -- | 1/4 in | -- | Straight Plunge | $23.25 | Add to cart | |
| RC-45711-M |
10
|
Amana Tool | 17.6 mm | -- | 8.5 mm | 1 | AMA-12 (1) | 52 mm | -- | 6 mm | 90 deg | V-Groove/Sign-making | $29.81 | Add to cart | |
| RC-49492 |
11
|
Amana Tool | 1 5/64 in | 47706 | 3/8 in | 2 | RCK-265 | 2 3/8 in | 1/16 in | 1/4 in | 45 deg | (2 in 1) Corner Round or Bevel | $83.40 | Add to cart | |
| RC-49495 |
12
|
Amana Tool | 1 5/64 in | 47706 | 43/64 in | 2 | RCK-267 | 2 13/32 in | 2mm | 1/4 in | 45 deg | (2 in 1) Corner Round or Bevel | $68.33 | Add to cart | |
| RC-49497 |
13
|
Amana Tool | 1 5/64 in | 47706 | 3/8 in | 2 | RCK-269 | 2 3/8 in | 3mm | 1/4 in | 45 deg | (2 in 1) Corner Round or Bevel | $83.40 | Add to cart |
