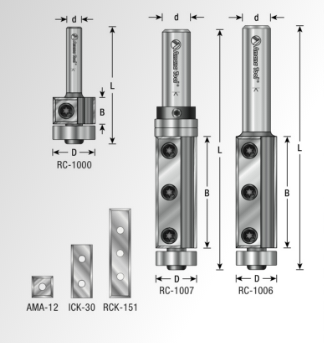

Amana Tool Flush Trim Insert Solid Carbide 2-Flute with Upper Ball Bearing GuideThank you for shopping with us! In a production environment, insert tooling reduces downtime to a minimum. Each throw-away insert knife in this flush trimming bit has multiple edges. Rotate the knife to expose a fresh cutting edge. Tips can be replaced at any time, even mid-job, without changing the router setup. Replacement parts: Torx® key included – #5005 Note: RC-1000, RC-1006, and RC-1007 have four cutting edges per knife. RC-1004 has two cutting edges per knife.  |
Download as PDF| Item # | Images | Manufacturer | Bearing(s) | Diameter | Cut Height, Length, or Width | Flute | Replacement Parts | Knives | Note | Overall Length | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RC-1000 |
0
|
Amana Tool | 47711, Bearing Screws #67137 | 3/4 in | 12 mm | 2 w/Bearing | Knife Screws #67115; Dust Shield #67116; Collar 47739; Torx #5005 key included | AMA-12 | Note: RC-1000 has four cutting edges per knife. | 2 1/8 in | 1/4 in | $93.30 | Add to cart | |
| RC-1004 |
1
|
Amana Tool | 47711, Bearing Screws #67138 | 3/4 in | 30 mm | 2 w/Bearing | Knife Screws #67115; Dust Shield #67116; Collar 47739; Torx #5005 key included | ICK-30 | RC-1004 has two cutting edges per knife. | 3 1/4 in | 1/2 in | $112.54 | Add to cart | |
| RC-1006 |
2
|
Amana Tool | 47711; Bearing Screws #67137 | 3/4 in | 50 mm | 2 w/Bearing | Knife Screws #67115; Dust Shield #67116; Collar 47739; Torx #5005 key included | RCK-151 | Four cutting edges per knife. RC-1006 is meant for difficult work. The knives are held with three screws. | 4 5/16 in | 1/2 in | $136.69 | Add to cart | |
| RC-1007 |
3
|
Amana Tool | 47711 (bottom), 47721 (2 top); Bearing Screws #67137 | 3/4 in | 50 mm | 2 w/Bearing | Knife Screws #67115; Dust Shield #67116; Collar 47739; Torx #5005 key included | RCK-151 | Four cutting edges per knife. | 4 1/4 in | 1/2 in | $125.59 | Add to cart |
