Amana Tool Adjustable ChamferThank you for shopping with us! Cutterhead bodies available in hard wearing aluminum or steel, complete with tungsten carbide knives. Suitable for producing chamfer cuts at various angles in softwood, hardwood, and man-made boards on a spindle molder. Cutting angle can be adjusted in 7.5° increments by using notched scale. Fine adjustment of 1° is also possible.
|
Download as PDF| Item # | Images | Manufacturer | Diameter | Bore | Cut Height, Length, or Width | Knives | Overall Length | RPM | Note | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 61303 |
0
|
Amana Tool | 4 11/32 in | 1 1/4 in | 1 1/2 in | RCK-40 | 4 11/32 in | 7,000 to 9,000 | -- | $341.73 | Add to cart | |
| 61304 |
1
|

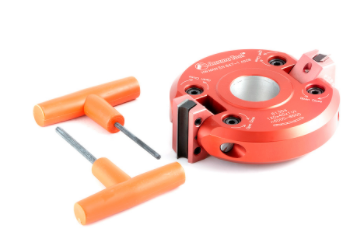

Amana Tool | 4 3/4 in | 1 1/4 in | 1 1/2 in | RCK-40 | 4 3/4 in | 6,000 to 8,500 | Aluminum | $215.71 | Add to cart | |
| 61306 |
2
|

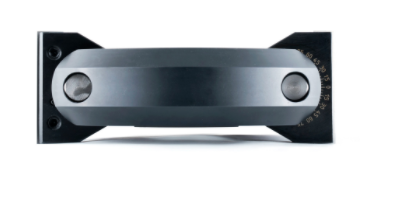

Amana Tool | 5 1/8 in | 1 1/4 in | 2 in | ICK-50 | 5 1/8 in | 5,000 to 8,500 | -- | $404.62 | Add to cart | |
| 61307 |
3
|

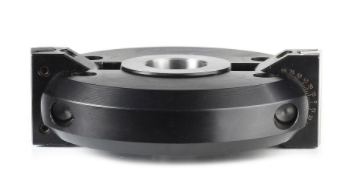

Amana Tool | 5 7/8 in | 1 1/4 in | 2 in | ICK-50 | 5 7/8 in | 5,100 to 7,400 | -- | $420.63 | Add to cart | |
| 61310 |
4
|

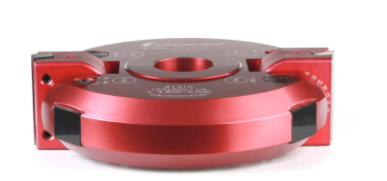

Amana Tool | 6 1/4 in | 1 1/4 in | 2 in | ICK-50 | 6 1/4 in | 4,800 to 6,000 | Has special mechanism to enable fine tuning angle of 1 deg | $469.56 | Add to cart | |
| 61311 |
5
|

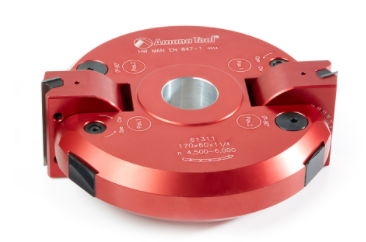

Amana Tool | 6 11/16 in | 1 1/4 in | 2 in | ICK-60 | 6 11/16 in | 4,500 to 6,000 | Has special mechanism to enable fine tuning angle of 1 deg | $470.24 | Add to cart |
