FS Tool XL4000 Extended Life Panel Sizing Saw Blades: TCG Archives

FS Tool XL4000 Extended Life Panel Sizing Saw Blades: TCG

Thank you for shopping with us!

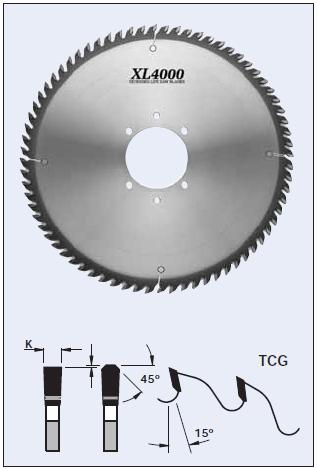

XL4000: 20 years of development has refined every aspect of our saw blade manufacturing, materials, and geometries. We offer nearly 1500 models all derived from the same engineering resources compiled over three decades of application experience. From plate to finished saw blade, each is manufactured using the latest technology. Once the plate has been transformed into the most formidable TCT saw blade on the market, it undergoes a nearly artisan, manual tensioning process. Renowned as the premier saw blade available throughout our industry, the XL4000 series will provide measurable cost savings by reducing machine downtime and by increasing your production’s efficiency and quality of cut.

Design:

Tooth configuration: TCG
Carbide Grade: TC XL4000
Expansion slots: Cu plugged

Application:

For sizing cuts in plastic laminated panels and plywood in single sheets and stacks
On panel sizing saws (Beam Saws)

Download as PDF

	Item #	Images	Manufacturer	Diameter	Bore	Grind	Kerf	Machine	Plate	Teeth	Note	Price	Add To Cart
Compare	L5224054-30	0	FS Tool	240 mm	30 mm	TCG	3.2 mm	Scheer FM10	2.2 mm	54	CU Plugged Expansion Slots	$179.80	Add to cart
Compare	L5225072-30	1	FS Tool	250 mm	30 mm	TCG	3.2 mm	Casadei Linea	2.2 mm	72	CU Plugged Expansion Slots	$203.44	Add to cart
Compare	L5230160-30	2	FS Tool	305 mm	30 mm	TCG	3.4 mm	Scheer FM16	2.4 mm	60	CU Plugged Expansion Slots	$245.72	Add to cart
Compare	L5230048-30	3	FS Tool	305 mm	30 mm	TCG	4.4 mm	Mayer Panhans	3 mm	48	CU Plugged Expansion Slots	$224.12	Add to cart
Compare	L5230060-30	4	FS Tool	305 mm	30 mm	TCG	4.4 mm	Mayer Panhans	3 mm	60	CU Plugged Expansion Slots	$245.72	Add to cart
Compare	L5230060-75	5	FS Tool	305 mm	75 mm	TCG	4.4 mm	Giben Junior	3 mm	60	CU Plugged Expansion Slots	$245.72	Add to cart
Compare	L5230072-80	6	FS Tool	300 mm	80 mm	TCG	4.4 mm	SCM Sigma 65	3 mm	72	CU Plugged Expansion Slots	$272.44	Add to cart
Compare	L5232072-50	7	FS Tool	320 mm	50 mm	TCG	4.4 mm	Giben Smart 75	3.2 mm	72	CU Plugged Expansion Slots	$314.00	Add to cart
Compare	L5232060-75	8	FS Tool	320 mm	75 mm	TCG	4.6 mm	Giben	3.2 mm	60	CU Plugged Expansion Slots	$279.36	Add to cart
Compare	L5235054-30	9	FS Tool	355 mm	30 mm	TCG	4.4 mm	Mayer Panhans SCM	3 mm	54	CU Plugged Expansion Slots	$272.44	Add to cart
Compare	L5235054-75	10	FS Tool	355 mm	75 mm	TCG	4.4 mm	Giben Trend	3 mm	54	CU Plugged Expansion Slots	$272.44	Add to cart
Compare	L5235072-30	11	FS Tool	355 mm	30 mm	TCG	4.4 mm	SCM, Panhans, Mayer, Schelling	3 mm	72	CU Plugged Expansion Slots	$290.92	Add to cart
Compare	L5235072-75	12	FS Tool	355 mm	75 mm	TCG	4.4 mm	Giben	3 mm	72	CU Plugged Expansion Slots	$290.92	Add to cart
Compare	L5235072-114	13	FS Tool	350 mm	1-1/4 in	TCG	4.4 mm	SCMI	3 mm	72	CU Plugged Expansion Slots	$290.92	Add to cart
Compare	L5235072-80	14	FS Tool	350 mm	80 mm	TCG	4.4 mm	Gabbiani, Casadei	3 mm	72	CU Plugged Expansion Slots	$299.68	Add to cart
Compare	L5235172-80	15	FS Tool	350 mm	80 mm	TCG	4.4 mm	SCM Sigma 90	3 mm	72	CU Plugged Expansion Slots	$299.68	Add to cart
Compare	L5235272-80	16	FS Tool	355 mm	80 mm	TCG	4.4 mm	Selco EB90	3 mm	72	CU Plugged Expansion Slots	$300.20	Add to cart
Compare	L5236072-65	17	FS Tool	360 mm	65 mm	TCG	4.4 mm	Selco EB100	3.2 mm	72	CU Plugged Expansion Slots	$333.40	Add to cart
Compare	L5237072-30	18	FS Tool	370 mm	30 mm	TCG	4.4 mm	Schelling	3.2 mm	72	CU Plugged Expansion Slots	$319.04	Add to cart
Compare	L5238060-60	19	FS Tool	380 mm	60 mm	TCG	4.4 mm	Holzma	3.2 mm	60	CU Plugged Expansion Slots	$303.24	Add to cart
Compare	L5238072-60	20	FS Tool	380 mm	60 mm	TCG	4.4 mm	Holzma	3.2 mm	72	CU Plugged Expansion Slots	$333.40	Add to cart
Compare	L5238872-60	21	FS Tool	380 mm	60 mm	TCG	4.8 mm	Holzma Series 82	3.5 mm	72	CU Plugged Expansion Slots	$354.52	Add to cart
Compare	L5240060-30	22	FS Tool	400 mm	30 mm	TCG	4.4 mm	Irion, Mayer, Schelling	3.2 mm	60	CU Plugged Expansion Slots	$292.80	Add to cart
Compare	L5240060-75	23	FS Tool	400 mm	75 mm	TCG	4.4 mm	Giben	3.2 mm	60	CU Plugged Expansion Slots	$267.40	Add to cart
Compare	L5240060-80	24	FS Tool	400 mm	80 mm	TCG	4.4 mm	Gabbiani	3.2 mm	60	CU Plugged Expansion Slots	$301.92	Add to cart
Compare	L5240072-30	25	FS Tool	400 mm	30 mm	TCG	4.4 mm	Irion Mayer Schelling	3.2 mm	72	CU Plugged Expansion Slots	$321.72	Add to cart
Compare	L5240072-60	26	FS Tool	400 mm	60 mm	TCG	4.4 mm	Holzma, Anthon	3.2 mm	72	CU Plugged Expansion Slots	$321.72	Add to cart
Compare	L5240072-75	27	FS Tool	400 mm	75 mm	TCG	4.4 mm	Giben	3.2 mm	72	CU Plugged Expansion Slots	$321.72	Add to cart
Compare	L5240172-75	28	FS Tool	400 mm	75 mm	TCG	4.4 mm	Giben Prismatic-1	3.2 mm	72	CU Plugged Expansion Slots	$330.44	Add to cart
Compare	L5240072-80	29	FS Tool	400 mm	80 mm	TCG	4.4 mm	Gabbiani	3.2 mm	72	CU Plugged Expansion Slots	$330.44	Add to cart
Compare	L5240272-80	30	FS Tool	400 mm	80 mm	TCG	4.4 mm	SCM Sigma 115	3.2 mm	72	CU Plugged Expansion Slots	$330.44	Add to cart
Compare	L5240172-80	31	FS Tool	400 mm	80 mm	TCG	4.4 mm	Selco	3.2 mm	72	CU Plugged Expansion Slots	$330.44	Add to cart
Compare	L5240860-75	32	FS Tool	400 mm	75 mm	TCG	4.8 mm	Giben	3.5 mm	60	CU Plugged Expansion Slots	$343.04	Add to cart
Compare	L5241072-80	33	FS Tool	410 mm	80 mm	TCG	4.6 mm	Gabbiani	3.2 mm	72	CU Plugged Expansion Slots	$386.92	Add to cart
Compare	L5242072-60	34	FS Tool	420 mm	60 mm	TCG	4.4 mm	Holzma	3.2 mm	72	CU Plugged Expansion Slots	$331.16	Add to cart
Compare	L5242672-60	35	FS Tool	420 mm	60 mm	TCG	4.6 mm	Holzma	3.2 mm	72	CU Plugged Expansion Slots	$340.80	Add to cart
Compare	L5242860-60	36	FS Tool	420 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	60	CU Plugged Expansion Slots	$337.48	Add to cart
Compare	L5242872-60	37	FS Tool	420 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	72	CU Plugged Expansion Slots	$364.88	Add to cart
Compare	L5243072-30	38	FS Tool	430 mm	30 mm	TCG	4.4 mm	--	3.2 mm	72	CU Plugged Expansion Slots	$352.12	Add to cart
Compare	L5243072-60	39	FS Tool	430 mm	60 mm	TCG	4.4 mm	Anthon	3.2 mm	72	CU Plugged Expansion Slots	$352.12	Add to cart
Compare	L5243072-75	40	FS Tool	430 mm	75 mm	TCG	4.4 mm	Giben Prismatic-2	3.2 mm	72	CU Plugged Expansion Slots	$352.12	Add to cart
Compare	L5243096-75	41	FS Tool	430 mm	75 mm	TCG	4.4 mm	Giben Prismatic-2	3.2 mm	96	CU Plugged Expansion Slots	$400.36	Add to cart
Compare	L5243072-80	42	FS Tool	430 mm	80 mm	TCG	4.4 mm	Selco	3.2 mm	72	CU Plugged Expansion Slots	$359.32	Add to cart
Compare	L5245072-30	43	FS Tool	450 mm	30 mm	TCG	4.4 mm	Irion Panhans Schelling	3.2 mm	72	CU Plugged Expansion Slots	$380.16	Add to cart
Compare	L5245072-60	44	FS Tool	450 mm	60 mm	TCG	4.4 mm	Holzma	3.2 mm	72	CU Plugged Expansion Slots	$380.16	Add to cart
Compare	L5245072-80	45	FS Tool	450 mm	80 mm	TCG	4.4 mm	Selco	3.2 mm	72	CU Plugged Expansion Slots	$389.60	Add to cart
Compare	L5245172-80	46	FS Tool	450 mm	80 mm	TCG	4.4 mm	Gabbiani	3.2 mm	72	CU Plugged Expansion Slots	$389.84	Add to cart
Compare	L5245672-80	47	FS Tool	450 mm	80 mm	TCG	4.6 mm	Selco	3.2 mm	72	CU Plugged Expansion Slots	$394.52	Add to cart
Compare	L5245872-60	48	FS Tool	450 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	72	CU Plugged Expansion Slots	$394.52	Add to cart
Compare	L5245872-80	49	FS Tool	450 mm	80 mm	TCG	4.8 mm	Selco	3.5 mm	72	CU Plugged Expansion Slots	$394.52	Add to cart
Compare	L5246060-30	50	FS Tool	460 mm	30 mm	TCG	4.4 mm	Schelling	3.2 mm	60	CU Plugged Expansion Slots	$407.64	Add to cart
Compare	L5246072-30	51	FS Tool	460 mm	30 mm	TCG	4.4 mm	Schelling	3.2 mm	72	CU Plugged Expansion Slots	$380.56	Add to cart
Compare	L5247072-30	52	FS Tool	470 mm	30 mm	TCG	4.4 mm	Schelling	3.2 mm	72	CU Plugged Expansion Slots	$394.00	Add to cart
Compare	L5247096-75	53	FS Tool	470 mm	75 mm	TCG	4.4 mm	Giben Prismatic-3	3.2 mm	96	CU Plugged Expansion Slots	$477.72	Add to cart
Compare	L5248072-30	54	FS Tool	480 mm	30 mm	TCG	4.4 mm	Schelling	3.2 mm	72	CU Plugged Expansion Slots	$388.32	Add to cart
Compare	L5248872-80	55	FS Tool	480 mm	80 mm	TCG	4.8 mm	Selco	3.5 mm	72	CU Plugged Expansion Slots	$448.44	Add to cart
Compare	L5250060-30	56	FS Tool	500 mm	30 mm	TCG	4.4 mm	Irion Schelling	3.2 mm	60	CU Plugged Expansion Slots	$387.60	Add to cart
Compare	L5250060-75	57	FS Tool	500 mm	75 mm	TCG	4.4 mm	Giben	3.2 mm	60	CU Plugged Expansion Slots	$423.32	Add to cart
Compare	L5250060-80	58	FS Tool	500 mm	80 mm	TCG	4.4 mm	Gabbiani, Teutomatic	3.2 mm	60	CU Plugged Expansion Slots	$430.68	Add to cart
Compare	L5250072-75	59	FS Tool	500 mm	75 mm	TCG	4.4 mm	Giben	3.2 mm	72	CU Plugged Expansion Slots	$401.40	Add to cart
Compare	L5250860-60	60	FS Tool	500 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	60	CU Plugged Expansion Slots	$434.36	Add to cart
Compare	L5250860-75	61	FS Tool	500 mm	75 mm	TCG	4.8 mm	Giben Type 21	3.5 mm	60	CU Plugged Expansion Slots	$434.36	Add to cart
Compare	L5250872-60	62	FS Tool	500 mm	60 mm	TCG	4.8 mm	Holzma Type 22	3.5 mm	72	CU Plugged Expansion Slots	$452.48	Add to cart
Compare	L5250872-75	63	FS Tool	500 mm	75 mm	TCG	4.8 mm	Giben	3.5 mm	72	CU Plugged Expansion Slots	$452.48	Add to cart
Compare	L5250872-80	64	FS Tool	500 mm	80 mm	TCG	4.8 mm	Gabbiani	3.5 mm	72	CU Plugged Expansion Slots	$457.68	Add to cart
Compare	L5250572-60	65	FS Tool	500 mm	60 mm	TCG	5.0 mm	Holzma Type 22	3.5 mm	72	CU Plugged Expansion Slots	$452.48	Add to cart
Compare	L5252060-60	66	FS Tool	520 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	60	CU Plugged Expansion Slots	$454.08	Add to cart
Compare	L5252072-60	67	FS Tool	520 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	72	CU Plugged Expansion Slots	$511.16	Add to cart
Compare	L5253060-30	68	FS Tool	530 mm	30 mm	TCG	5.0 mm	Schelling	3.5 mm	60	CU Plugged Expansion Slots	$549.28	Add to cart
Compare	L5253060-60	69	FS Tool	530 mm	60 mm	TCG	5.8 mm	Anthon	4.0 mm	60	CU Plugged Expansion Slots	$549.28	Add to cart
Compare	L5254060-60	70	FS Tool	540 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	60	CU Plugged Expansion Slots	$476.76	Add to cart
Compare	L5254084-60	71	FS Tool	540 mm	60 mm	TCG	4.8 mm	Holzma	3.5 mm	84	CU Plugged Expansion Slots	$502.16	Add to cart
Compare	L5255060-40	72	FS Tool	550 mm	40 mm	TCG	5.0 mm	Schelling	3.5 mm	60	CU Plugged Expansion Slots	$489.36	Add to cart
Compare	L5255260-60	73	FS Tool	550 mm	60 mm	TCG	5.2 mm	Holzma	3.5 mm	60	CU Plugged Expansion Slots	N/A	Add to cart
Compare	L5255060-80	74	FS Tool	550 mm	80 mm	TCG	5.0 mm	Teutomatic	3.5 mm	60	CU Plugged Expansion Slots	$489.36	Add to cart
Compare	L5255272-100	75	FS Tool	550 mm	100 mm	TCG	5.2 mm	Giben, Matic	3.5 mm	72	CU Plugged Expansion Slots	$566.20	Add to cart
Compare	L5256560-100	76	FS Tool	565 mm	100 mm	TCG	5.0 mm	Giben, Matic	3.5 mm	60	CU Plugged Expansion Slots	$532.32	Add to cart
Compare	L5256572-100	77	FS Tool	565 mm	100 mm	TCG	5.0 mm	Giben, Matic	3.5 mm	72	CU Plugged Expansion Slots	$566.20	Add to cart
Compare	L5257860-60	78	FS Tool	570 mm	60 mm	TCG	5.8 mm	Holzma	4.3 mm	60	CU Plugged Expansion Slots	$603.72	Add to cart
Compare	L5258060-40	79	FS Tool	580 mm	40 mm	TCG	5.5 mm	Schelling	4.0 mm	60	CU Plugged Expansion Slots	$441.80	Add to cart
Compare	L5260060-60	80	FS Tool	600 mm	60 mm	TCG	5.8 mm	Holzma	4.2 mm	60	CU Plugged Expansion Slots	$589.96	Add to cart
Compare	L5260072-60	81	FS Tool	600 mm	60 mm	TCG	5.8 mm	Holzma	4.2 mm	72	CU Plugged Expansion Slots	$641.16	Add to cart
Compare	L5263060-40	82	FS Tool	630 mm	40 mm	TCG	6.2 mm	Schelling	4.2 mm	60	CU Plugged Expansion Slots	$688.92	Add to cart
Compare	L5265060-100	83	FS Tool	650 mm	100 mm	TCG	6.0 mm	Giben	4.2 mm	60	CU Plugged Expansion Slots	$780.84	Add to cart
Compare	L5265072-40	84	FS Tool	650 mm	40 mm	TCG	6.2 mm	Schelling	4.0 mm	72	CU Plugged Expansion Slots	N/A	Add to cart
Compare	L5267072-40	85	FS Tool	670 mm	40 mm	TCG	6.2 mm	Schelling	4.2 mm	72	CU Plugged Expansion Slots	$873.68	Add to cart
Compare	L5267060-60	86	FS Tool	670 mm	60 mm	TCG	6.0 mm	Holzma	4.0 mm	60	CU Plugged Expansion Slots	$786.24	Add to cart
Compare	L5267072-60	87	FS Tool	670 mm	60 mm	TCG	6.0 mm	Holzma Type 61	4.0 mm	72	CU Plugged Expansion Slots	$873.68	Add to cart
Compare	L5268060-40	88	FS Tool	680 mm	40 mm	TCG	6.2 mm	Schelling	4.2 mm	60	CU Plugged Expansion Slots	$821.12	Add to cart
Compare	L5230060-65	89	FS Tool	300 mm	65 mm	TCG	4.4 mm	Selco EB70	3.2 mm	60	CU Plugged Expansion Slots	$253.04	Add to cart
Compare	L5235072-60	90	FS Tool	350 mm	60 mm	TCG	4.4 mm	Holzma HPP350	3 mm	72	CU Plugged Expansion Slots	$299.68	Add to cart
Compare	L5235272-30	91	FS Tool	350 mm	30 mm	TCG	4.4 mm	Schelling FX-H430	3.2 mm	72	CU Plugged Expansion Slots	$305.48	Add to cart
Compare	L5238072-50	92	FS Tool	380 mm	50 mm	TCG	4.4 mm	Giben, Icon 2	3.2 mm	72	CU Plugged Expansion Slots	$333.40	Add to cart
Compare	L5239072-50	93	FS Tool	390 mm	50 mm	TCG	4.4 mm	Giben, Onix, H105	3.2 mm	72	CU Plugged Expansion Slots	$330.44	Add to cart
Compare	L5250072-60	94	FS Tool	500 mm	60 mm	TCG	4.4 mm	Holzma	3.2 mm	72	CU Plugged Expansion Slots	$421.68	Add to cart
Compare	L5035072-80	95	FS Tool	350 mm	80 (4/2PH)	TCG	4.4 mm	Gabbiani, Casadei	3 mm	72	CU Plugged Expansion Slots	$290.28	Add to cart

FS Tool XL4000 Extended Life Panel Sizing Saw Blades: TCG

FS Tool XL4000 Extended Life Panel Sizing Saw Blades: TCG

You may also like…

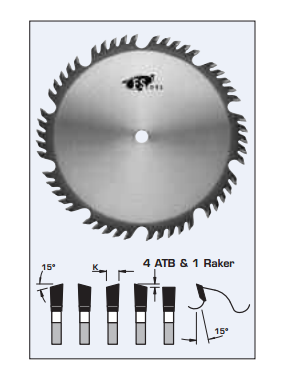

Item #L55180, FS Tool Industrial Quality Combination Saw Blades
