Vortex Tool Series 3100 Two Flute Compression Spirals: the "Viper"Thank you for shopping with us! Compression means the upcut and downcut spiral flutes compress the material being cut, preventing chipping or fuzzing on the top and bottom of the cut. Our unique flute geometry allows the “Viper” to cut faster and longer than other compression spirals on the market today. It also allows for extended sharpening life with excellent performance throughout the tool’s useful life. Compression spirals are used extensively for cutting double-sided laminates (melamine, vinyl, high pressure laminates, painted board, etc). This series of compression spirals is not recommended for cutting materials thinner than 5/8″. |
Download as PDF| Item # | Images | Diameter | Rotation | Cut Height, Length, or Width | Shank | Overall Length | Upcut Length | Flute | Flute Geometry | Manufacturer | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3108 |
0
|
6 mm | Right | 25 mm | 6 mm | 64mm | 0.354 in | 2 | Compression | Vortex Tool | $106.02 | Add to cart | |
| 3122 |
1
|
8 mm | Right | 28 mm | 8 mm | 64mm | 0.433 in | 2 | Compression | Vortex Tool | $141.19 | Add to cart | |
| 3145 |
2
|
10.0 mm | Right | 35 mm | 10 mm | 76mm | 0.5 in | 2 | Compression | Vortex Tool | $154.35 | Add to cart | |
| 3155 |
3
|
12 mm | Right | 35 mm | 12 mm | 76mm | 0.65 in | 2 | Compression | Vortex Tool | $198.30 | Add to cart | |
| 3110L |
4
|
1/4 in | Left | 7/8 in | 1/4 in | 3 in | 0.25 in | 2 | Compression | Vortex Tool | $115.80 | Add to cart | |
| 3135 |
5
|
1/2 in | Right | 1 in | 1/2 in | 3 in | 0.55 in | 2 | Compression | Vortex Tool | $122.66 | Add to cart | |
| 3135L |
6
|
1/2 in | Left | 1 in | 1/2 in | 3 in | 0.55 in | 2 | Compression | Vortex Tool | $157.15 | Add to cart | |
| 3152 |
7
|
1/2 in | Right | 1 3/8 in | 1/2 in | 3 1/2 in | 0.65 in | 2 | Compression | Vortex Tool | $130.38 | Add to cart | |
| 3152L |
8
|
1/2 in | Left | 1 3/8 in | 1/2 in | 3 1/2 in | 0.65 in | 2 | Compression | Vortex Tool | $167.16 | Add to cart | |
| 3160L |
9
|
1/2 in | Left | 1 3/4 in | 1/2 in | 3 1/2 in | 0.8 in | 2 | Compression | Vortex Tool | $176.69 | Add to cart | |
| 3162L |
10
|
1/2 in | Left | 2 in | 1/2 in | 4 in | 0.8 in | 2 | Compression | Vortex Tool | $225.53 | Add to cart | |
| 3170L |
11
|
5/8 in | Left | 2 in | 5/8 in | 4 in | 0.9 in | 2 | Compression | Vortex Tool | $437.50 | Add to cart | |
| 3179 |
12
|
3/4 in | Right | 1 5/8 in | 3/4 in | 4 in | 0.75 in | 2 | Compression | Vortex Tool | $351.64 | Add to cart | |
| 3180L |
13
|
3/4 in | Left | 2 in | 3/4 in | 4 in | 1 in | 2 | Compression | Vortex Tool | $503.63 | Add to cart | |
| 3183L |
14
|
3/4 in | Left | 2 1/2 in | 3/4 in | 5 in | 1.25 in | 2 | Compression | Vortex Tool | $550.40 | Add to cart | |
| 3130 |
15
|
3/8 in | Right | 1 1/8 in | 3/8 in | 3 in | 0.5 in | 2 | Compression | Vortex Tool | $99.50 | Add to cart | |
| 3130L |
16
|
3/8 in | Left | 1 1/8 in | 3/8 in | 3 in | 0.5 in | 2 | Compression | Vortex Tool | $127.57 | Add to cart | |
| 3110 |
17
|
1/4 in | Right | 7/8 in | 1/4 in | 3 in | 0.250 in | 2 | Compression | Vortex Tool | $90.56 | Add to cart | |

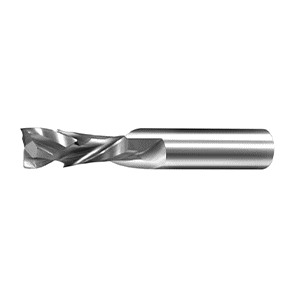

| 3160 |
18
|
1/2 in | Right | 1 3/4 in | 1/2 in | 3 1/2 in | 0.800 in | 2 | Compression | Vortex Tool | $138.02 | Add to cart | |
| 3162 |
19
|
1/2 in | Right | 2 in | 1/2 in | 4 in | 0.800 in | 2 | Compression | Vortex Tool | $176.09 | Add to cart | |
| 3170 |
20
|
5/8 in | Right | 2 in | 5/8 in | 4 in | 0.900 in | 2 | Compression | Vortex Tool | $341.50 | Add to cart | |
| 3180 |
21
|
3/4 in | Right | 2 in | 3/4 in | 4 in | 1.000 in | 2 | Compression | Vortex Tool | $423.62 | Add to cart | |
| 3183 |
22
|
3/4 in | Right | 2 1/2 in | 3/4 in | 5 in | 1.250 in | 2 | Compression | Vortex Tool | $456.53 | Add to cart |
