Amana Tool Spektra™ Plastic Cutting CNC Spiral O Flute Mirror Finish Solid Carbide Router Bits

Thank you for shopping with us!

To be used only on CNC machines and routers with automatic feeding.

Produce super clean, smooth cuts especially in acrylic materials (Plexiglas® Lucite®) other plastics and wood. Bits are made according to strict tolerances from an exclusive carbide grade and polished to a mirror finish using Amana’s unique process. Designed to eject chips up. Ideal for industrial applications and CNC machines. Right hand helix right hand cut.

Excellent for cutting:

  • Plastic/Acrylic
  • Acetal and Nylon
  • Acrylic Stone
  • Acrylonitrile Butadiene Styrene (ABS)
  • Aluminum Composite Material (ACM)
  • Alupanel®
  • Corian
  • Coroplast®**
  • Corrugated Plastics* such as Correx Boards and Polypropylene
  • Crosslinked Polyethylene (XPE, PEX, XLPE)
  • Delrin
  • Dibond®
  • Extruded Acrylic
  • Foam Board
  • Fomex®
  • Gatorfoam®***
  • Hard Plastic
  • High Density Polyethylene (HDPE)
  • High Density Urethane (HDU Board)
  • High Impact Polystyrene (HIPS)
  • High Impact Polystyrene (HIPS) for digital printing
  • High Pressure Laminates (HPL)
  • Hydroxy-Terminated Polyether (HTPE)
  • King ColorCore® The Multi-Color Engravable Polymer Sheet.
  • Laminate
  • Low Density Polyethylene (LDPE)
  • LubX®
  • Lucite®
  • Mechanical/Engineered Plastics
  • Perspex® Cast Acrylic Sheet
  • Plexiglas®
  • Poly (methyl methacrylate) (PMMA)
  • Polycarbonate (Lexan™)†
  • Polyethylene Terephthalate Glycol-Modified (PETG / PET-G)
  • Polyoxymethylene (POM), also known as Acetal, Polyacetal and Polyformaldehyde.
  • Polystyrene (PS)
  • PVC
  • Sign Foam
  • Sintra PVC
  • Solid Surface
  • StarBoard® (King StarBoard ‘R’) High Density Polyethylene Sheet (HDPE)
  • Teflon®
  • Thermoplastic Polyolefin (TPO)
  • Trespa® Meteon®****
  • Ultra High Molecular Weight Polyethylene (UHMWPE)
  • Urethane
  • Vinyl Flooring
  • Wood

*Corrugated Plastics such as Correx refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact Polypropylene resin with a similar make-up to corrugated fiberboard. They are used in a variety of applications including boat building packaging signage outdoor advertising and the production of pet cages.

**A soft plastic cardboard made with super soft super flexible PVC.

***Gatorfoam® Foam Board a polystyrene foam board bonded between two layers of Luxcell® wood-fiber veneer.

****Decorative high-pressure compact laminate (HPL) with an integral surface.

†Recommendation: Use the slowest suggested feed rates and the shortest bits necessary for cutting and routing Lexan™.

Benefits of Mirror-Finish:

  • Razor sharp cutting edge
  • Effortless chip removal
  • Helps prevent chip re-welding
  • Extends tool life
  • Exceptional cut quality
  • Dissipates heat well and
    prevents melting

Our Spektra™ bits feature a nACo® nanocomposite coating with an extreme nanohardness and heat resistance. With a brilliant distinctively-tinted coloring nACo provides additional improvements in four critical aspects of router tooling.

  • nACo coating is a micro-thin ceramic coating which enables the tool’s cutting edge to retain crucial sharpness and lubricity. This provides longevity and produces cutting results of the highest quality.
  • Coating prevents high heat and oxidation which is detrimental to cutting tool performance.
  • Multi-colored hues, while attractive, will dissipate upon use and yet coating will remain fully effective.
  • nACo offers approximately 4,500 Vickers for impressive solid hardness on cutting areas of the tool, for an increase up to 2.5 times compared to uncoated bits.

Note: Blue based color dissipates immediately upon use. nACo® nanocomposite coating will not wear off.

Maximum RPM: 35,000





Item # Images ManufacturerDiameterCut Height, Length, or WidthFlute GeometryFluteOverall LengthShank Price Add To Cart
Compare 51649-K
0
Amana Tool1/32 in3/16 inUpcut12 in1/4 in $49.88 Add to cart

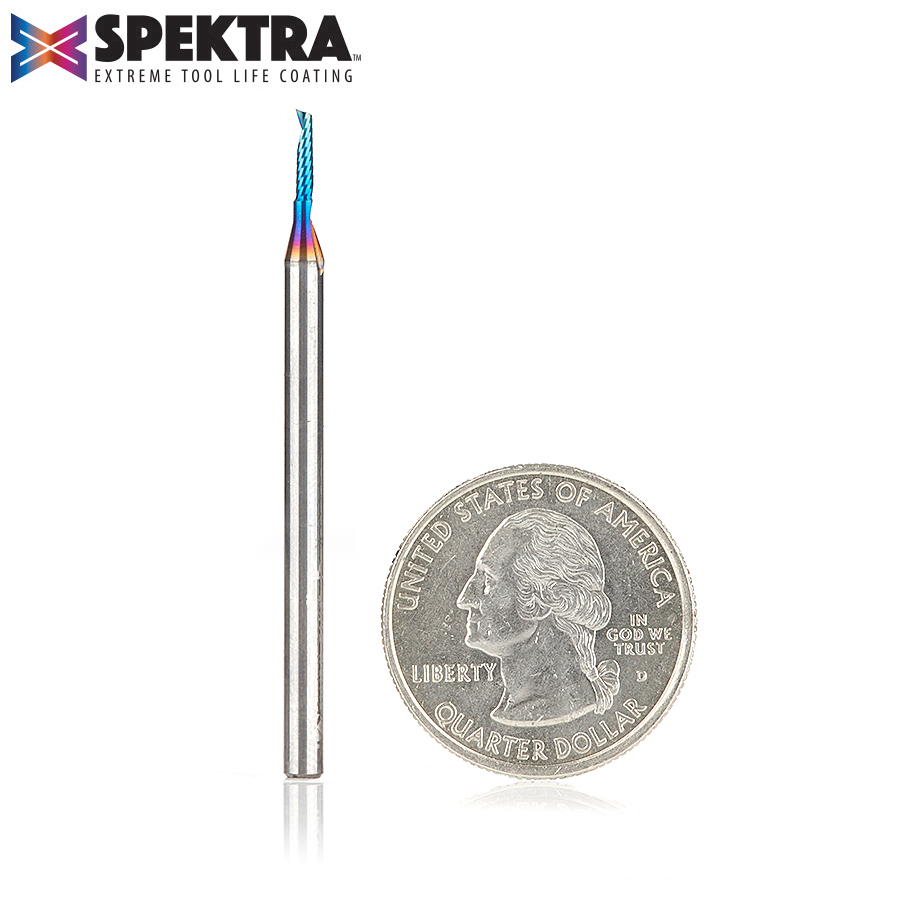

Compare 51415-K
1
Amana Tool1/16 in1/4 inUpcut12 in1/8 in $34.58 Add to cart

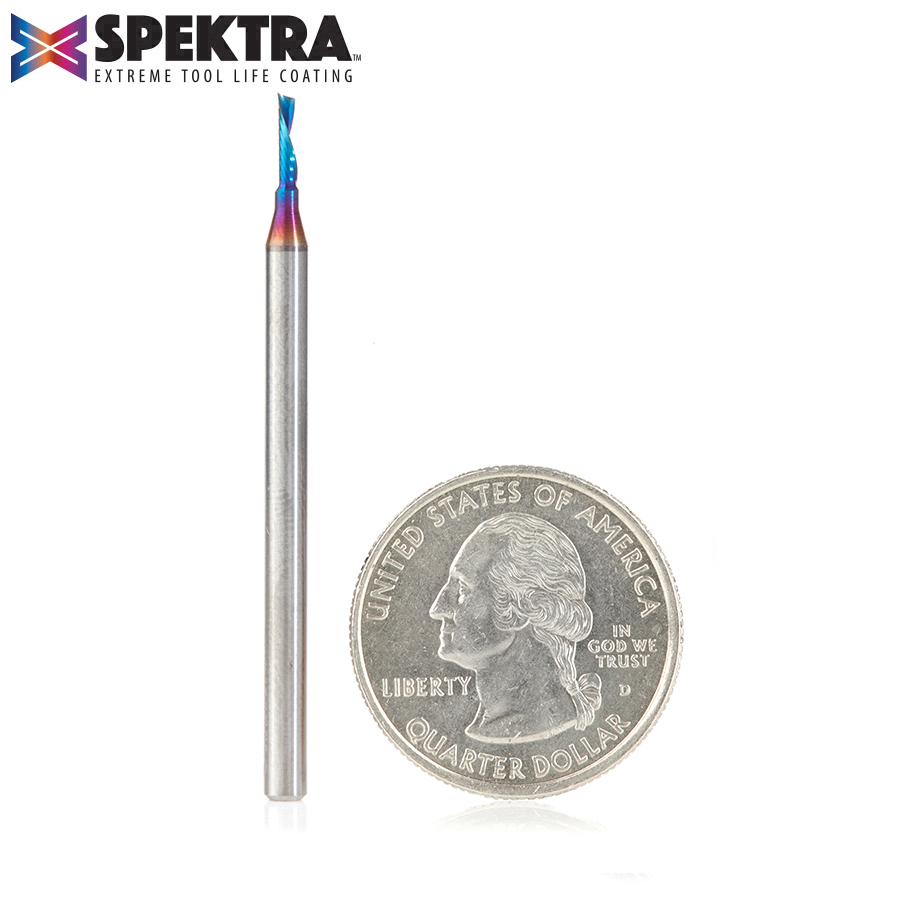

Compare 51515-K
2
Amana Tool1/16 in1/4 inDowncut12 in1/8 in $34.58 Add to cart
Compare 51441-K
3
Amana Tool1/16 in1/4 inUpcut12 in1/4 in $46.65 Add to cart

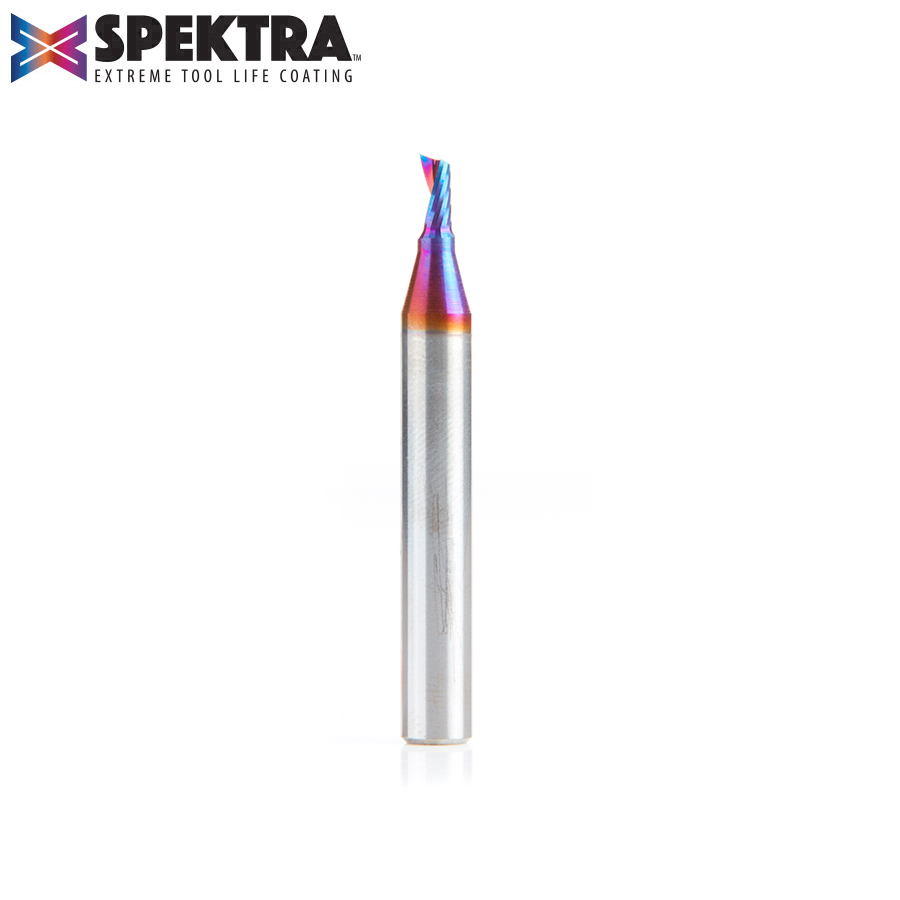

Compare 51416-K
4
Amana Tool1/8 in1/4 inUpcut12 in1/4 in $43.88 Add to cart
Compare 51445-K
5
Amana Tool1/8 in5/8 inUpcut12 1/2 in1/4 in $48.56 Add to cart
Compare 51410-K
6
Amana Tool1/8 in1/2 inUpcut12 in1/8 in $37.31 Add to cart

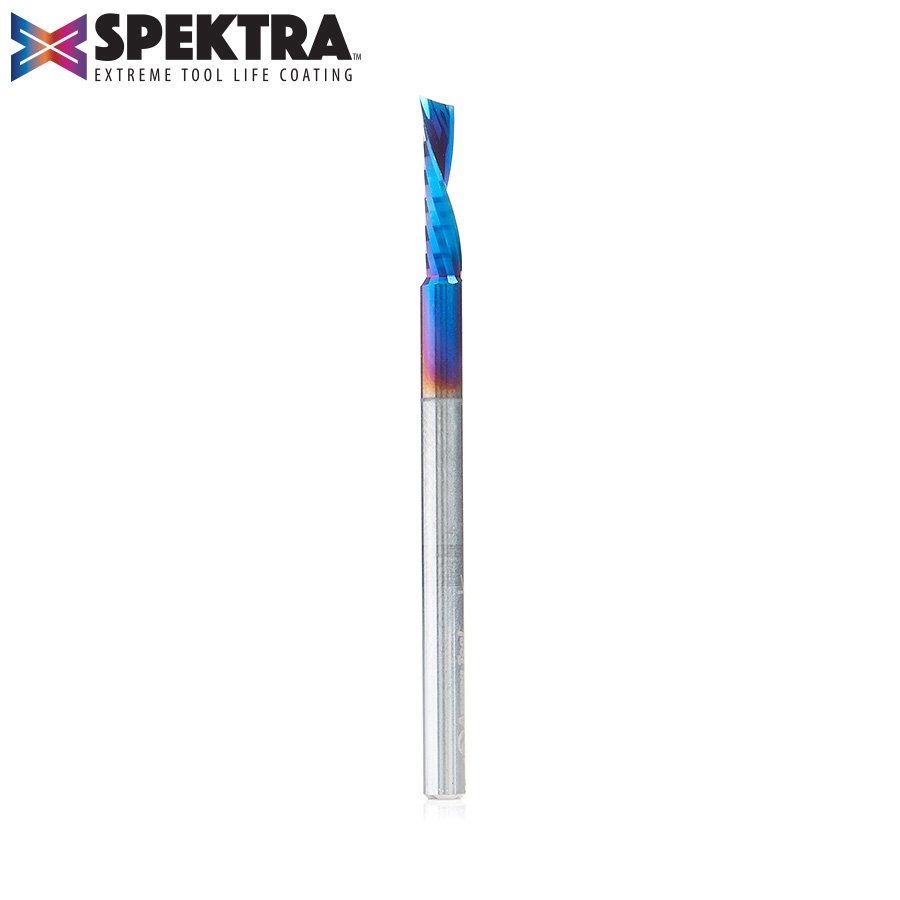

Compare 51510-K
7
Amana Tool1/8 in1/2 inDowncut12 in1/8 in $37.31 Add to cart

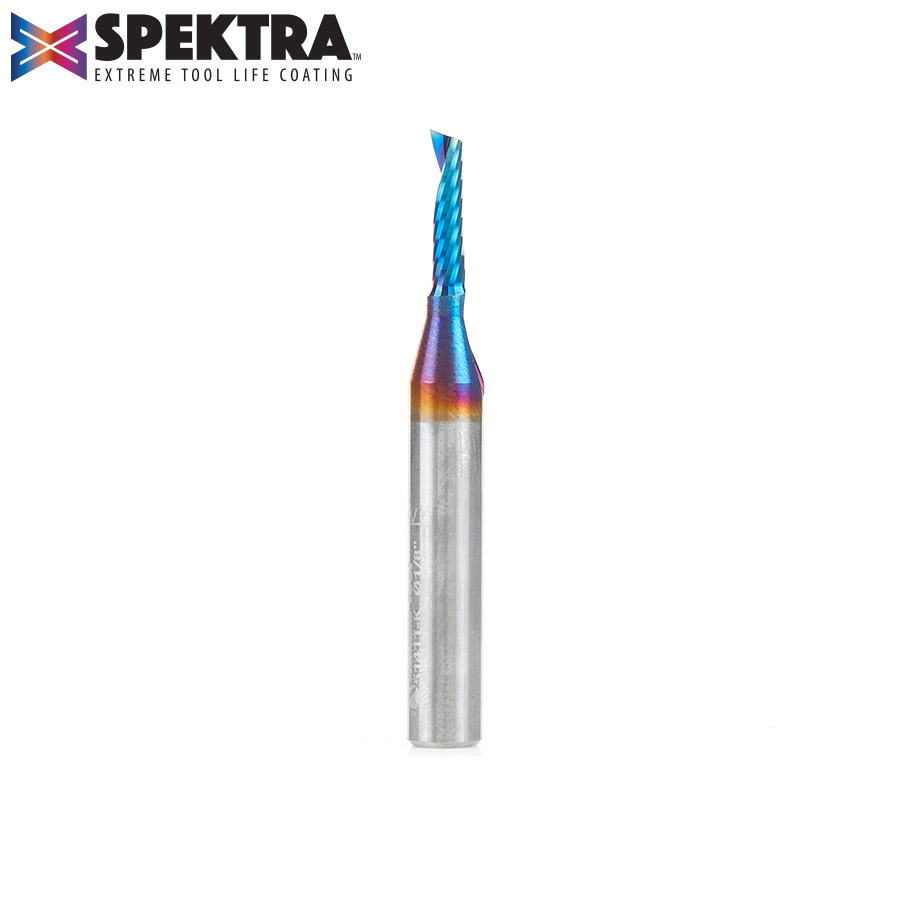

Compare 51411-K
8
Amana Tool1/8 in1/2 inUpcut12 in1/4 in $44.81 Add to cart

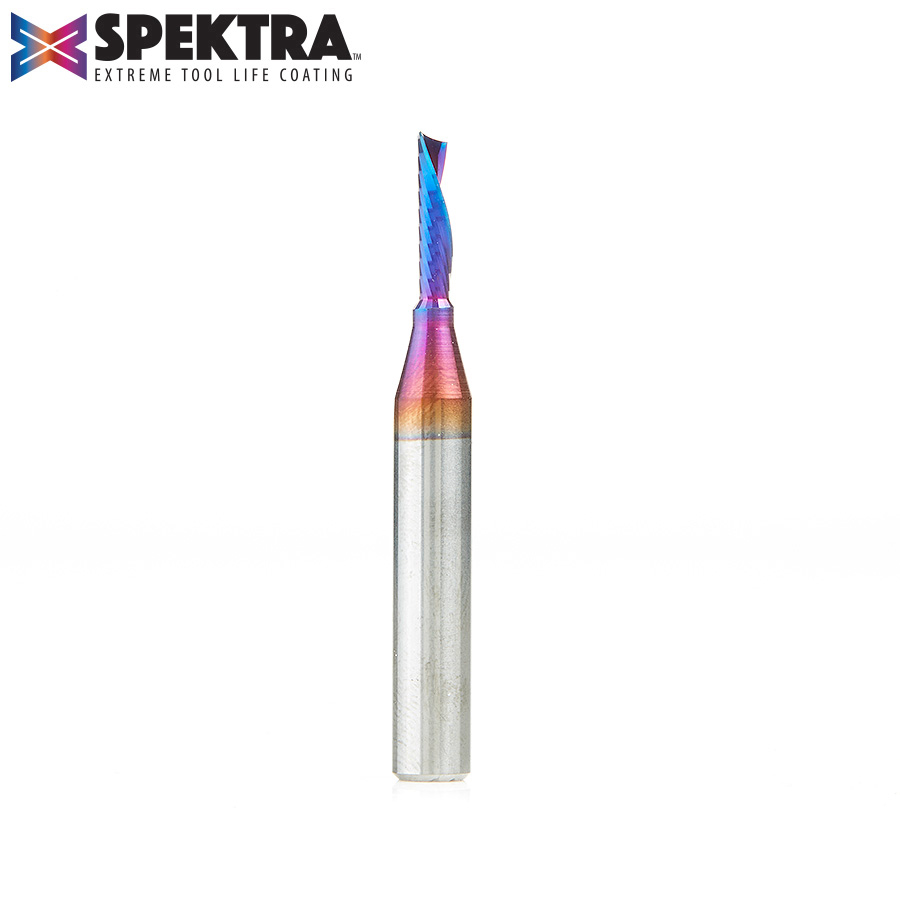

Compare 51511-K
9
Amana Tool1/8 in1/2 inDowncut12 in1/4 in $44.81 Add to cart

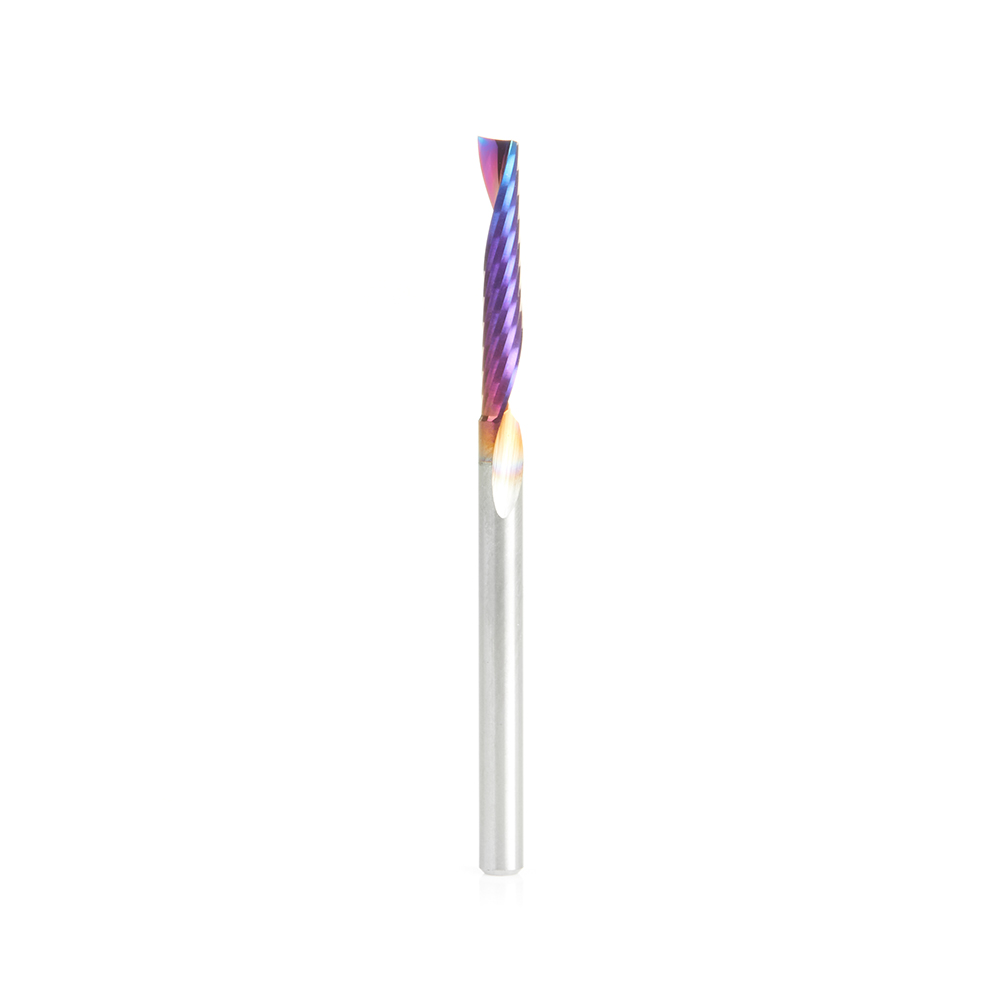

Compare 51437-K
10
Amana Tool1/8 in3/4 inUpcut12 in1/8 in $42.19 Add to cart
Compare 51446-K
11
Amana Tool1/8 in3/4 inUpcut12 1/2 in1/4 in $49.50 Add to cart

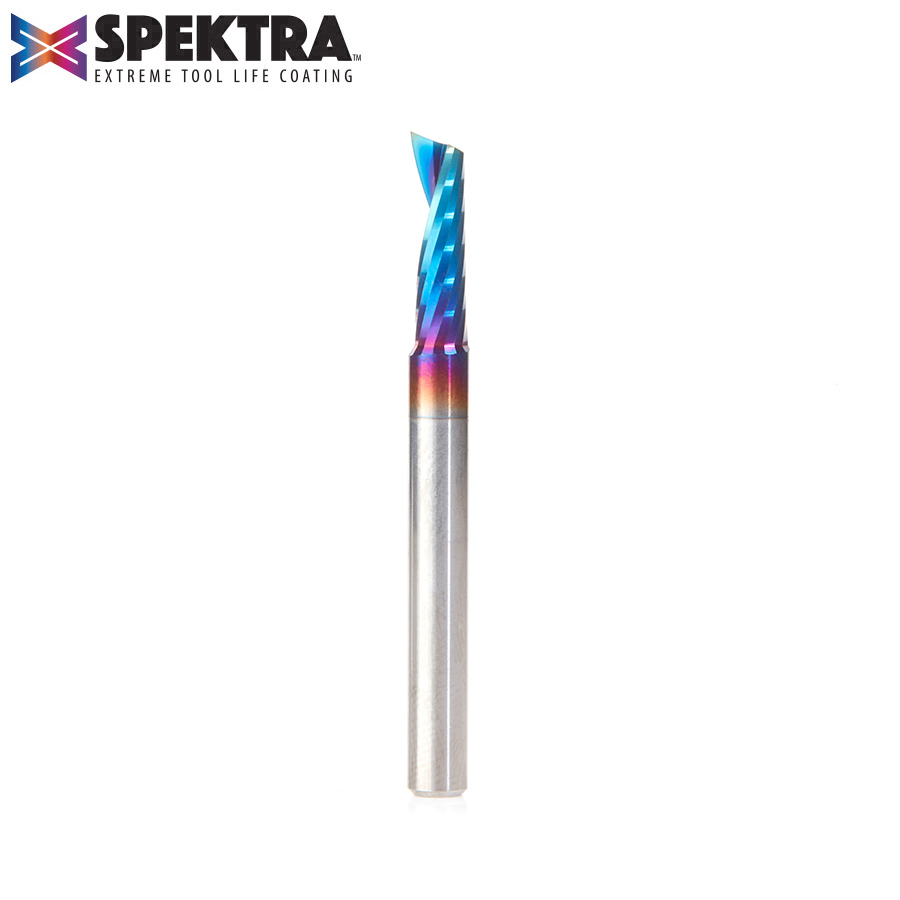

Compare 51412-K
12
Amana Tool3/16 in5/8 inUpcut12 in3/16 in $40.13 Add to cart

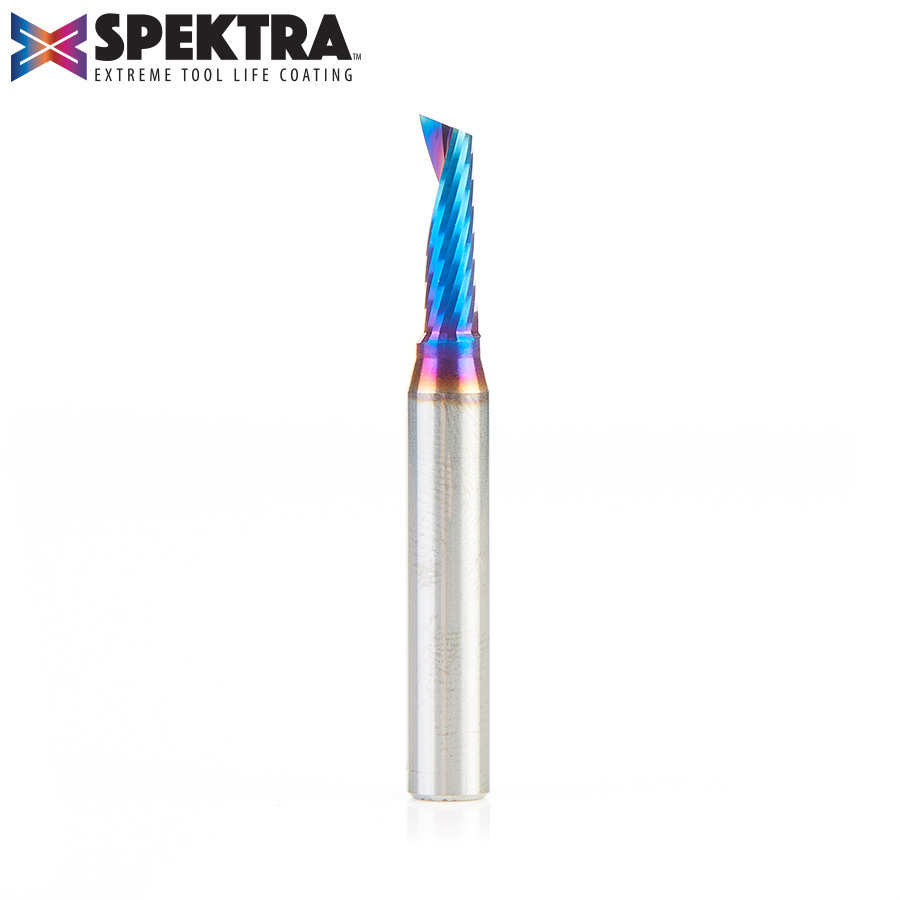

Compare 51417-K
13
Amana Tool3/16 in5/8 inUpcut12 in1/4 in $48.56 Add to cart
Compare 51517-K
14
Amana Tool3/16 in5/8 inDowncut12 in1/4 in $48.56 Add to cart
Compare 51442-K
15
Amana Tool3/16 in7/8 inUpcut12 1/2 in1/4 in $53.25 Add to cart
Compare 51418-K
16
Amana Tool3/16 in1 1/4 inUpcut13 in1/4 in $65.33 Add to cart
Compare 51425-K
17
Amana Tool1/4 in3/8 inUpcut12 in1/4 in $41.29 Add to cart

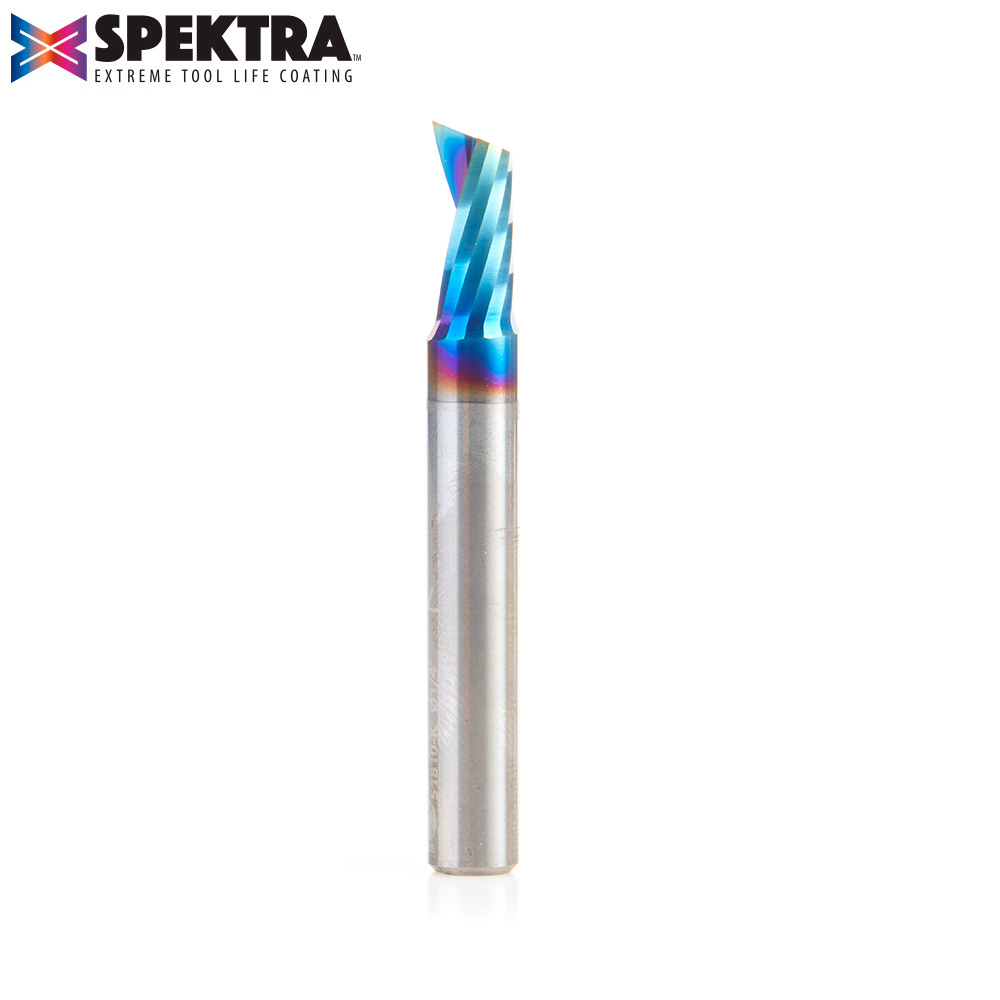

Compare 51810-K
18
Amana Tool1/4 in1/2 inUpcut12 in1/4 in $36.98 Add to cart

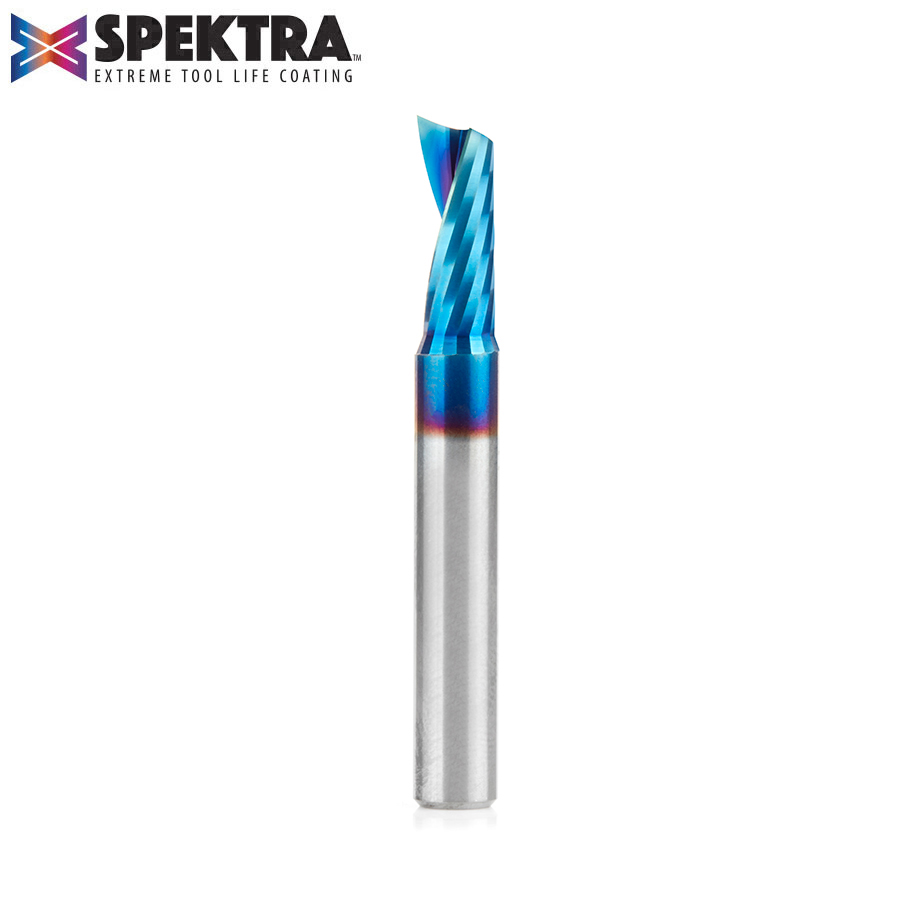

Compare 51419-K
19
Amana Tool1/4 in5/8 inUpcut12 in1/4 in $45.75 Add to cart
Compare 51404-K
20
Amana Tool1/4 in3/4 inUpcut12 in1/4 in $46.65 Add to cart

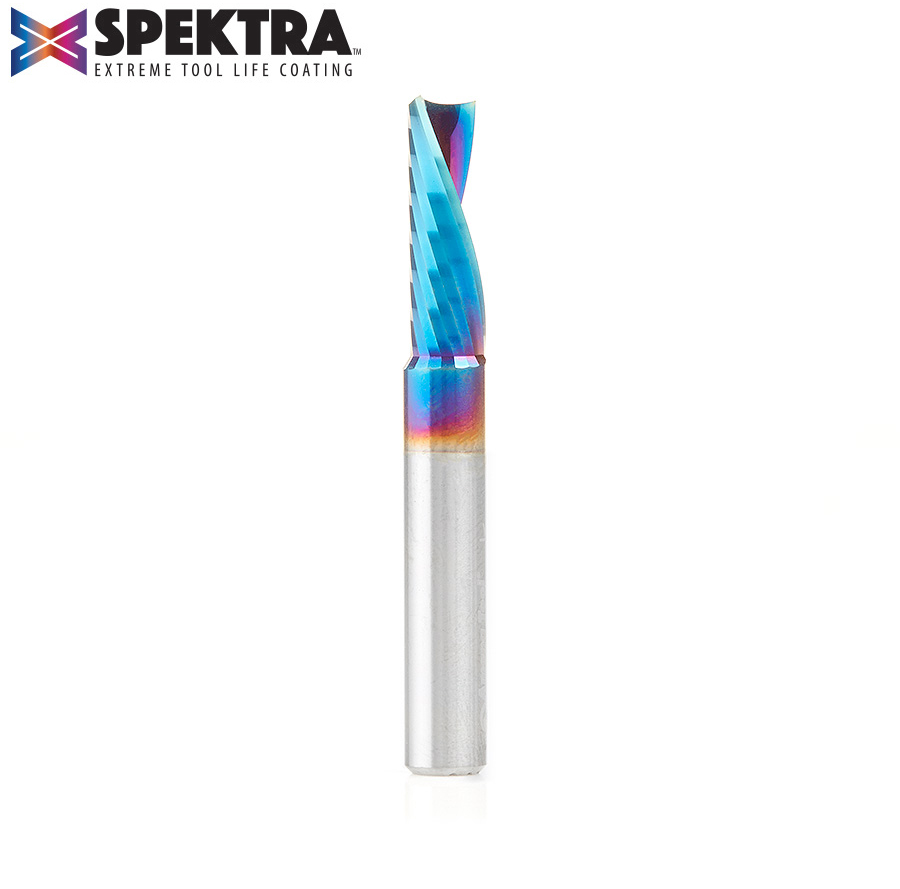

Compare 51504-K
21
Amana Tool1/4 in3/4 inDowncut12 in1/4 in $54.19 Add to cart

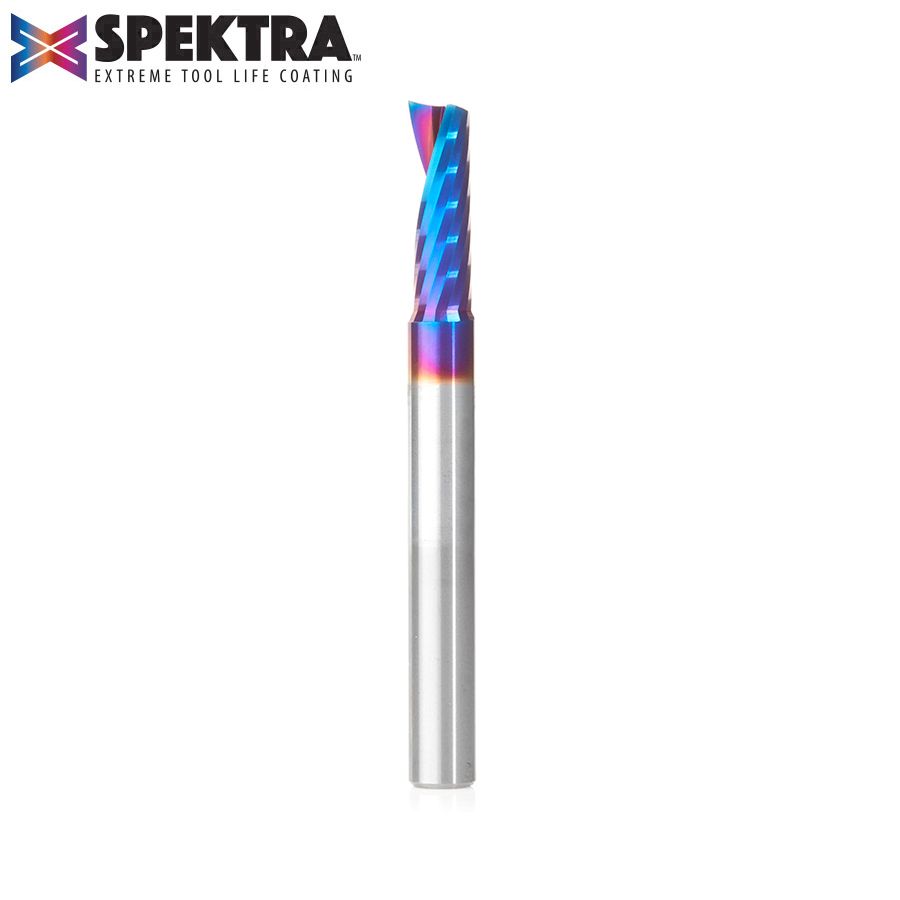

Compare 51421-K
22
Amana Tool1/4 in3/4 inUpcut12 1/2 in1/4 in $49.50 Add to cart

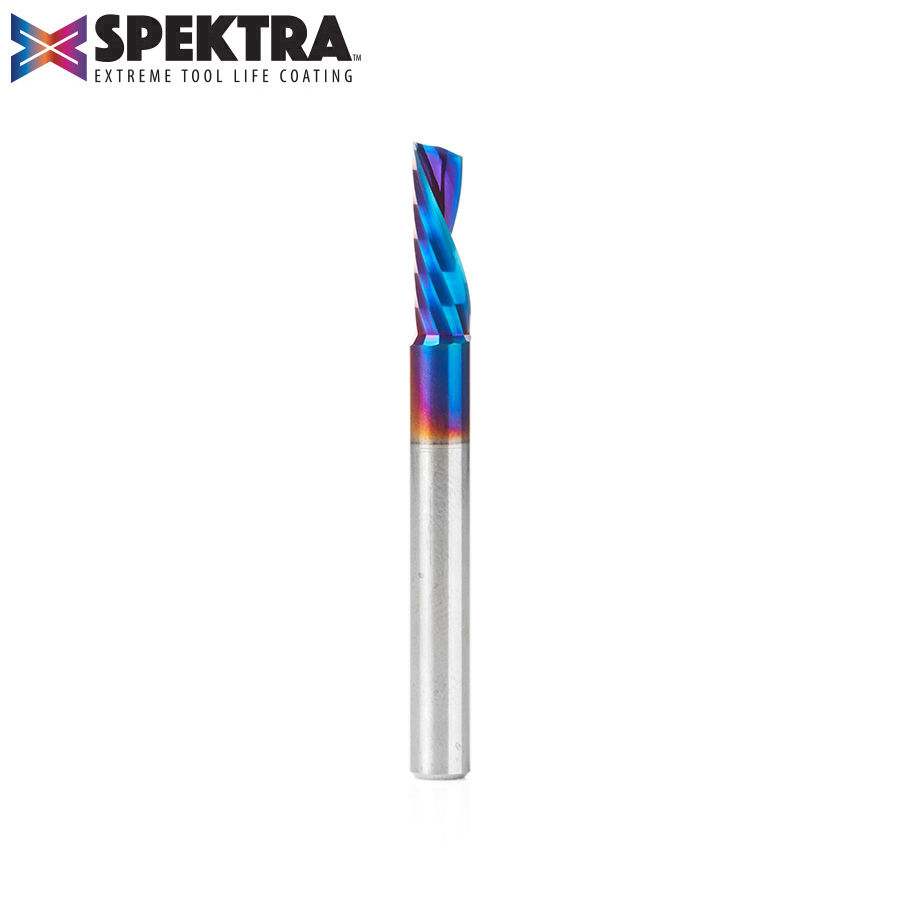

Compare 51524-K
23
Amana Tool1/4 in3/4 inDowncut12 1/2 in1/4 in $49.50 Add to cart

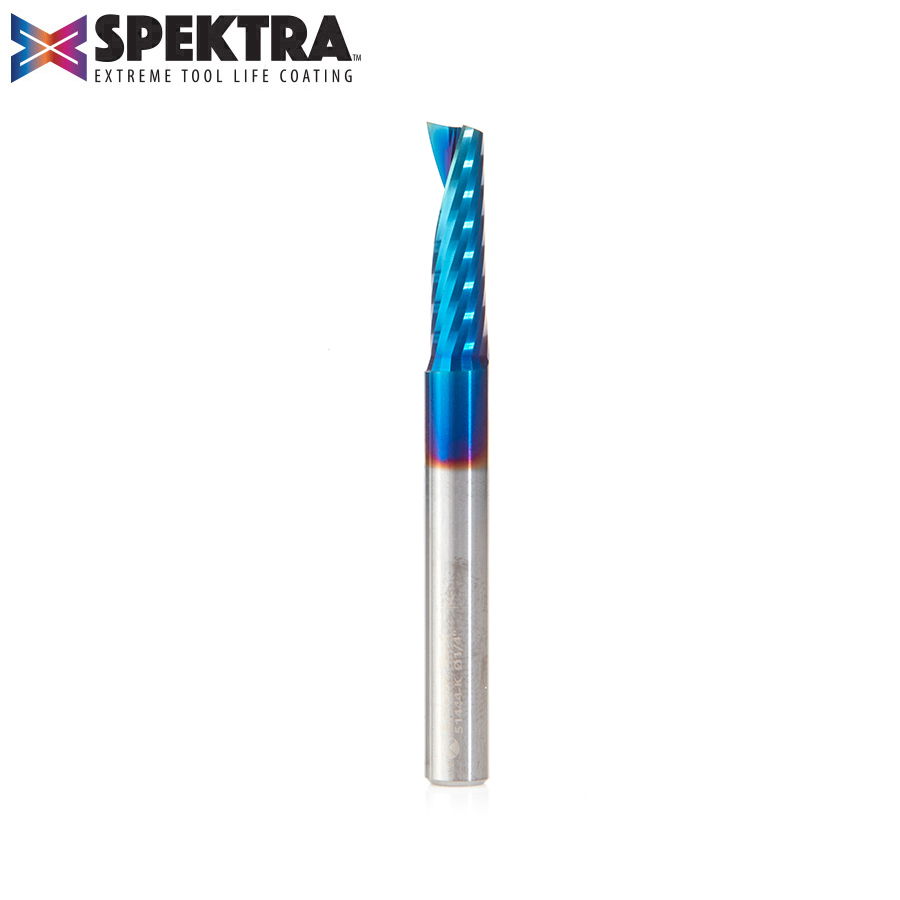

Compare 51444-K
24
Amana Tool1/4 in7/8 inUpcut12 1/2 in1/4 in $51.38 Add to cart
Compare 51405-K
25
Amana Tool1/4 in1 inUpcut12 1/2 in1/4 in $54.19 Add to cart
Compare 51505-K
26
Amana Tool1/4 in1 inDowncut12 1/2 in1/4 in $54.19 Add to cart
Compare 51407-K
27
Amana Tool1/4 in1 1/4 inUpcut13 in1/4 in $60.64 Add to cart

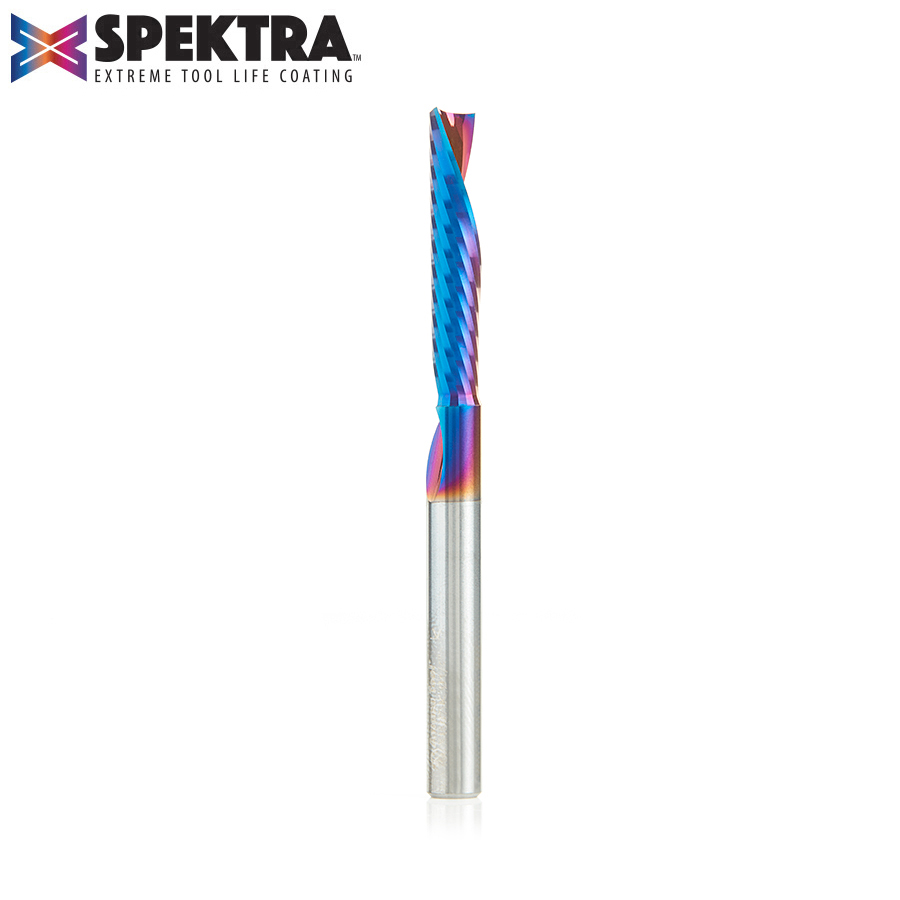

Compare 51507-K
28
Amana Tool1/4 in1 1/4 inDowncut13 in1/4 in $60.64 Add to cart
Compare 51413-K
29
Amana Tool1/4 in1 1/2 inUpcut13 in1/4 in $62.55 Add to cart
Compare 51513-K
30
Amana Tool1/4 in1 1/2 inDowncut13 in1/4 in $62.55 Add to cart
Compare 51646-K
31
Amana Tool1/4 in2 1/4 inUpcut13 3/4 in1/4 in $80.74 Add to cart

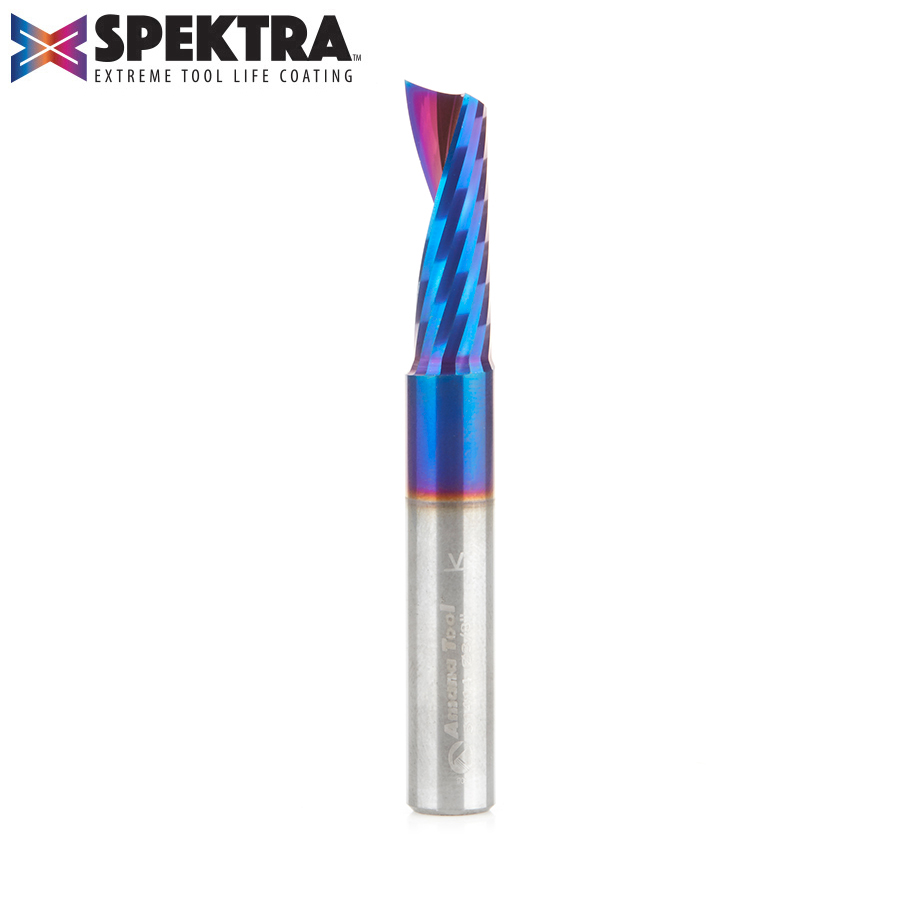

Compare 51414-K
32
Amana Tool3/8 in1 1/8 inUpcut13 in3/8 in $78.41 Add to cart
Compare 51427-K
33
Amana Tool3/8 in1 5/8 inUpcut13 1/2 in3/8 in $84.00 Add to cart

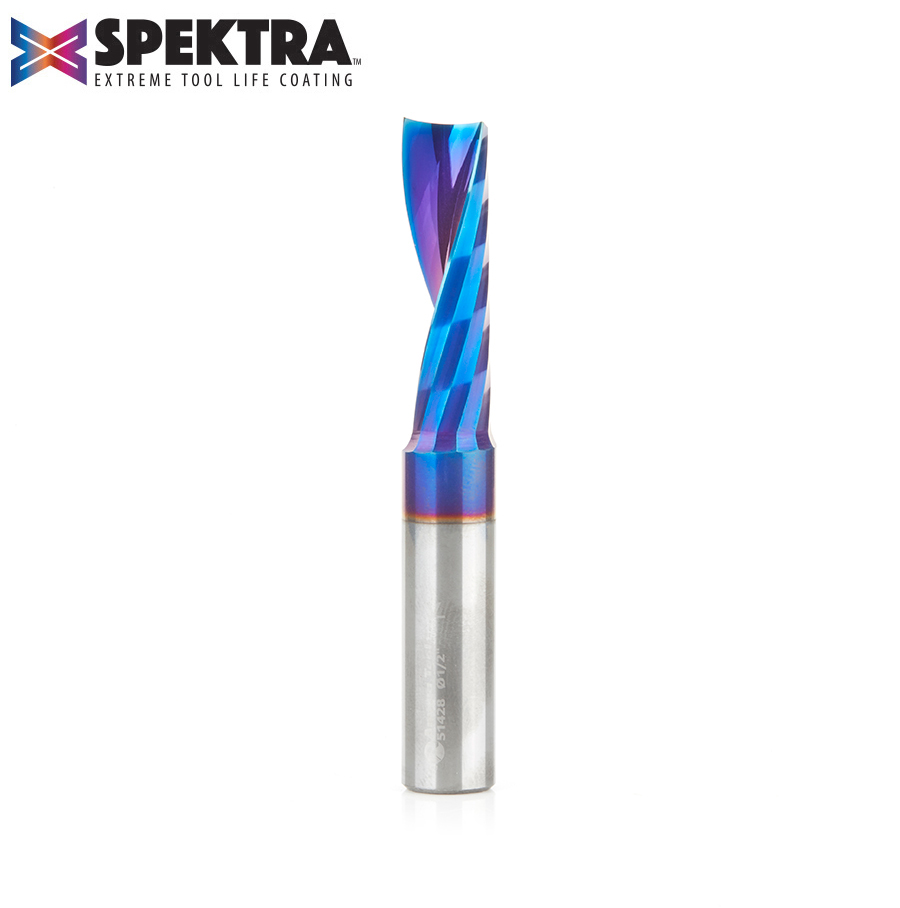

Compare 51428-K
34
Amana Tool1/2 in1 5/8 inUpcut13 1/2 in1/2 in $130.61 Add to cart
