Amana Tool CNC Compression Spiral Flute, 1- 2- & 3-Flute For MDF/LaminateThank you for shopping with us! Special carbide for longer lifetime in abrasive material. Designed for CNC applications requiring high feed rates and a clean finish. Particularly suitable for double-sided melamine or laminated materials. 3-Flute design provides an extra-smooth finish. Excellent for cutting: laminate, laminate plywood, melamine, melamine particle board, MDF/HDF, oriented strand board (OSB), veneered plywood, softwood, hardwood.
|
Download as PDF| Item # | Images | Manufacturer | B1 | Diameter | Cut Height, Length, or Width | Flute | Note | Overall Length | RPM | Shank | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46137 |
0
|
Amana Tool | 5/32 in | 1/8 in | 3/8 in | 1 | Router collet reducer RB-102 (1/4 in to 1/8 in) available for 1/8 in shank bits | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/8 in | $43.88 | Add to cart | |
| 46139 |
1
|
Amana Tool | 5/32 in | 1/8 in | 3/8 in | 1 | -- | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/4 in | $54.79 | Add to cart | |

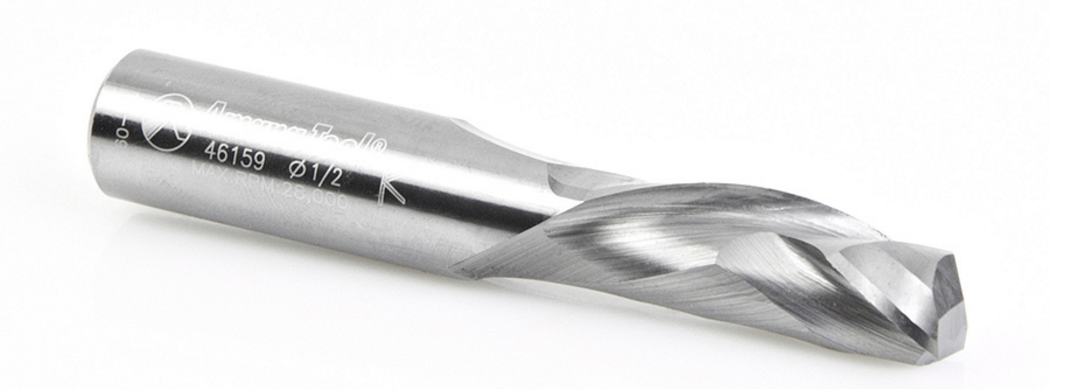

| 46159 |
2
|
Amana Tool | 7/16 in | 1/2 in | 1 1/4 in | 1 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $111.94 | Add to cart | |

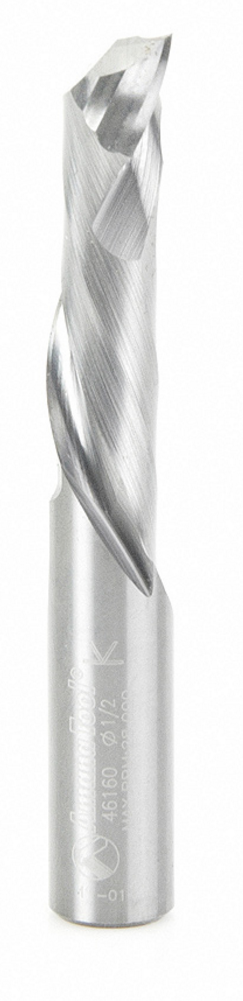

| 46160 |
3
|
Amana Tool | 7/16 in | 1/2 in | 1 5/8 in | 1 | -- | 3 1/2 in | Recommended RPM 20,000-21,000 | 1/2 in | $103.16 | Add to cart | |

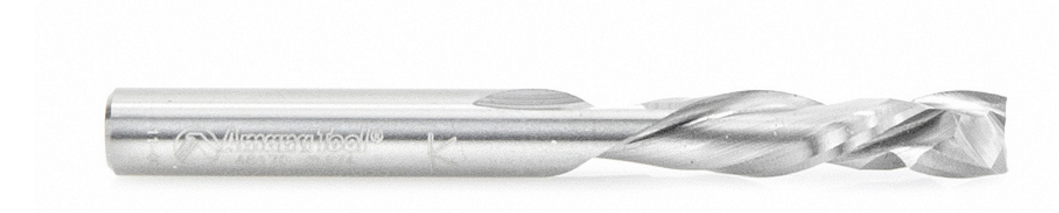

| 46170 |
4
|
Amana Tool | 7mm | 1/4 in | 7/8 in | 2 | -- | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/4 in | $59.93 | Add to cart | |

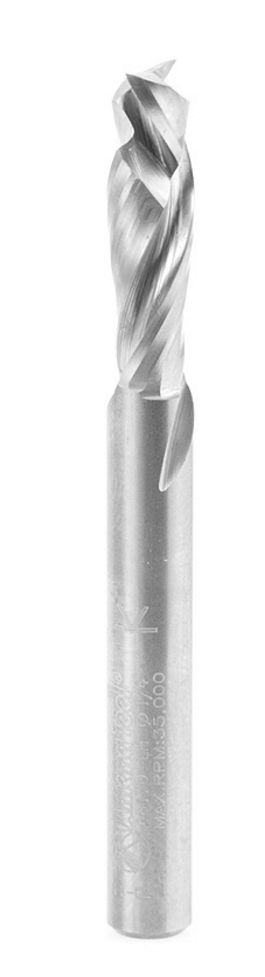

| 46170-LH |
5
|
Amana Tool | 7mm | 1/4 in | 7/8 in | 2 | Left Hand Rotation | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/4 in | $93.30 | Add to cart | |
| 46178 |
6
|
Amana Tool | 9mm | 3/8 in | 1 1/8 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $119.33 | Add to cart | |
| 46186 |
7
|
Amana Tool | 10mm | 1/2 in | 1 1/8 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $93.30 | Add to cart | |

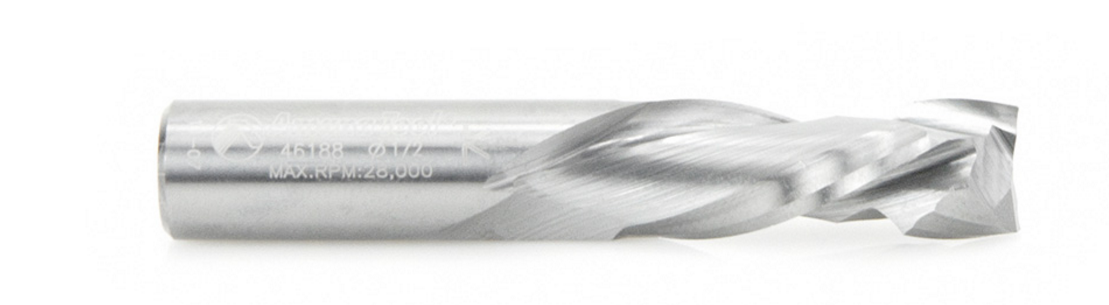

| 46188 |
8
|
Amana Tool | 11mm | 1/2 in | 1 1/4 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $86.59 | Add to cart | |

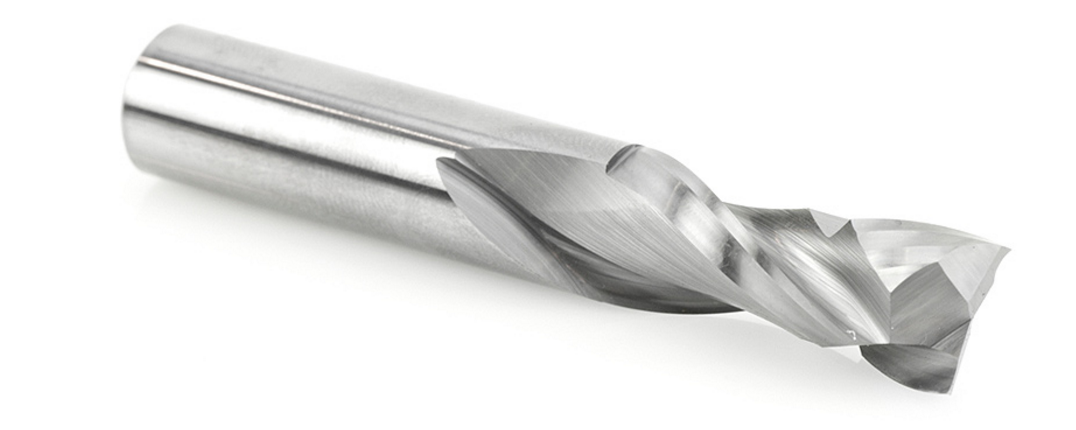

| 46188-LH |
9
|
Amana Tool | 11mm | 1/2 in | 1 1/4 in | 2 | Left Hand Rotation | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $93.30 | Add to cart | |
| 46189 |
10
|
Amana Tool | 12mm | 1/2 in | 1 1/2 in | 2 | -- | 3 1/2 in | Recommended RPM 20,000-21,000 | 1/2 in | $117.56 | Add to cart | |
| 46190 |
11
|
Amana Tool | 13mm | 1/2 in | 1 5/8 in | 2 | -- | 3 1/2 in | Recommended RPM 20,000-21,000 | 1/2 in | $104.10 | Add to cart | |
| 46190-LH |
12
|
Amana Tool | 13mm | 1/2 in | 1 5/8 in | 2 | Left Hand Rotation | 3 1/2 in | Recommended RPM 20,000-21,000 | 1/2 in | $130.61 | Add to cart | |
| 46010 |
13
|
Amana Tool | 9mm | 3/8 in | 1 1/8 in | 3 | -- | 3 in | Maximum RPM 28,000 | 3/8 in | $87.94 | Add to cart | |
| 46140 |
14
|
Amana Tool | 3/8 in | 1/4 in | 7/8 in | 1 | -- | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/4 in | $54.79 | Add to cart | |

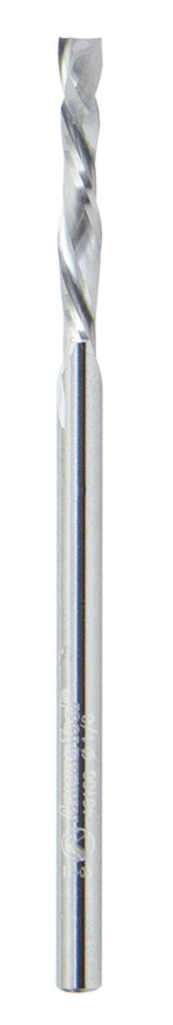

| 46180 |
15
|
Amana Tool | 7/32 in | 1/8 in | 13/16 in | 2 | Optional 1/4 in diameter sleeve/adapter #47632 | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/8 in | $53.66 | Add to cart | |
| 46181 |
16
|
Amana Tool | 7/32 in | 3/16 in | 1 in | 2 | -- | 2 1/2 in | Recommended RPM 20,000-21,000 | 3/16 in | $71.03 | Add to cart | |

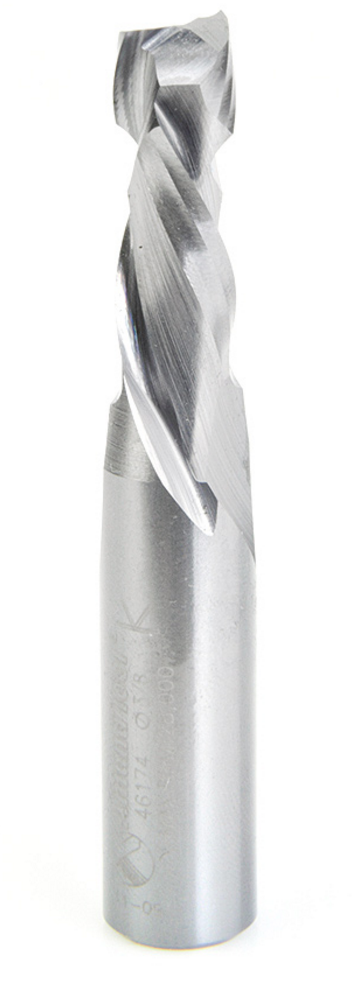

| 46174 |
17
|
Amana Tool | 9mm | 3/8 in | 1 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $114.26 | Add to cart | |
| 46172 |
18
|
Amana Tool | 9mm | 3/8 in | 1 1/4 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 3/8 in | $74.66 | Add to cart | |
| 46182 |
19
|
Amana Tool | 9mm | 1/2 in | 1 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $93.30 | Add to cart | |

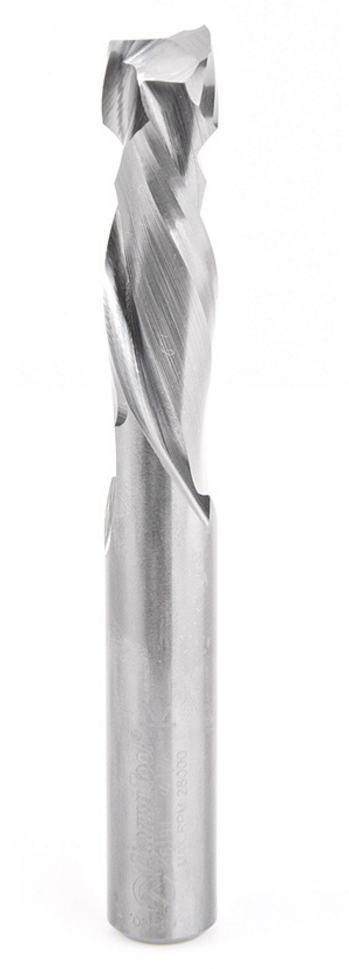

| 46191 |
20
|
Amana Tool | 7/16 in | 1/2 in | 1 1/2 in | 2 | -- | 4 1/16 in | Recommended RPM 20,000-21,000 | 1/2 in | $139.95 | Add to cart | |
| 46012 |
21
|
Amana Tool | 9mm | 1/2 in | 1 1/4 in | 3 | -- | 3 in | Maximum RPM 28,000 | 1/2 in | $93.30 | Add to cart | |

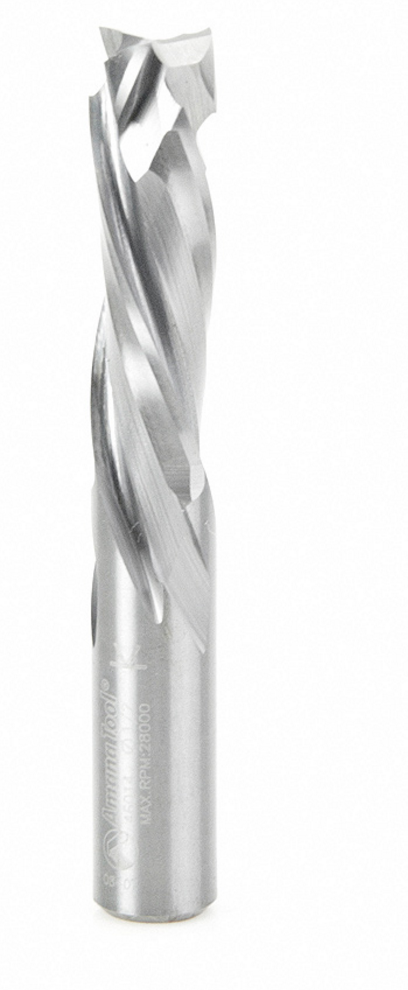

| 46014 |
22
|
Amana Tool | 9mm | 1/2 in | 1 5/8 in | 3 | -- | 3 1/2 in | Maximum RPM 28,000 | 1/2 in | $111.94 | Add to cart | |
| 46183 |
23
|
Amana Tool | 1/8 in | 5/32 in | 1/8 in | 2 | -- | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/4 in | $63.71 | Add to cart | |
| 46171 |
24
|
Amana Tool | .188 in | 3/8 in | 7/8 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 3/8 in | $73.76 | Add to cart | |
| 46173 |
25
|
Amana Tool | 9mm | 3/8 in | 1 1/8 in | 2 | -- | 3 in | Recommended RPM 20,000-21,000 | 3/8 in | $84.00 | Add to cart | |
| 46011 |
26
|
Amana Tool | .200 in | 3/8 in | 7/8 in | 3 | -- | 3 in | Recommended RPM 20,000-21,000 | 3/8 in | $80.25 | Add to cart | |
| 46013 |
27
|
Amana Tool | .200 in | 1/2 in | 7/8 in | 3 | -- | 3 in | Recommended RPM 20,000-21,000 | 1/2 in | $88.28 | Add to cart | |
| 46176 |
28
|
Amana Tool | 7/32 in | 1/8 in | 13/16 in | 2 | -- | 2 1/2 in | Recommended RPM 20,000-21,000 | 1/4 in | $59.21 | Add to cart |
