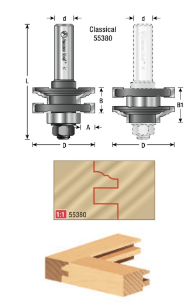

Amana Tool Reversible Stile & Rail Assemblies 2-Wing w/Ball Bearing Guide 3/4" MaterialThank you for shopping with us! Cut both the stiles & rails with a single economical assembly. Switch from the stile cut to the rail cut simply by rearranging the cutters and bearing on the arbor. Because the profile and the cope are cut with the same cutter, the result is a perfect fit. The assembly order for each setup is shown in the images. Use in a table-mounted router. Guide straight cuts with the fence and use the pilot bearing only for cuts on curved rails or stiles. Stile & Rail assemblies can be used on 5/8″ through 7/8″ material. Profile Sample #55380
|
Download as PDF| Item # | Images | Manufacturer | Cut Depth | Diameter | Cut Height, Length, or Width | B1 | Overall Length | Shank | Wings | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 55350 |
0
|
Amana Tool | 3/8 in | 1 5/8 in | 11/16 in | 7/8 in | 3 in | 1/2 in | 2-Wing w/Ball Bearing Guide | $102.53 | Add to cart | |
| 55370 |
1
|
Amana Tool | 3/8 in | 1 5/8 in | 11/16 in | 7/8 in | 3 in | 1/2 in | 2-Wing w/Ball Bearing Guide | $102.53 | Add to cart | |
| 55380 |
2
|
Amana Tool | 3/8 in | 1 5/8 in | 11/16 in | 7/8 in | 3 in | 1/2 in | 2-Wing w/Ball Bearing Guide | $85.43 | Add to cart |
