Amana Tool Undermount Bowl w/Ultra-Glide™ Ball Bearing Guide, 10°, 14°, 18° Cutting DraftThank you for shopping with us! These bits trim and profile the countertop edges after the bowl is mounted. Each bit has a cutting draft with a bearing that matches, enabling the cutter to do more work so you have to do less.
|
Download as PDF| Item # | Images | Manufacturer | B1 | Diameter | Cut Height, Length, or Width | Replacement Parts | Bearing(s) | Diameter (D1) | Flute | Overall Length | Radius | Shank | Type | Angle | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 57267 |
0
|

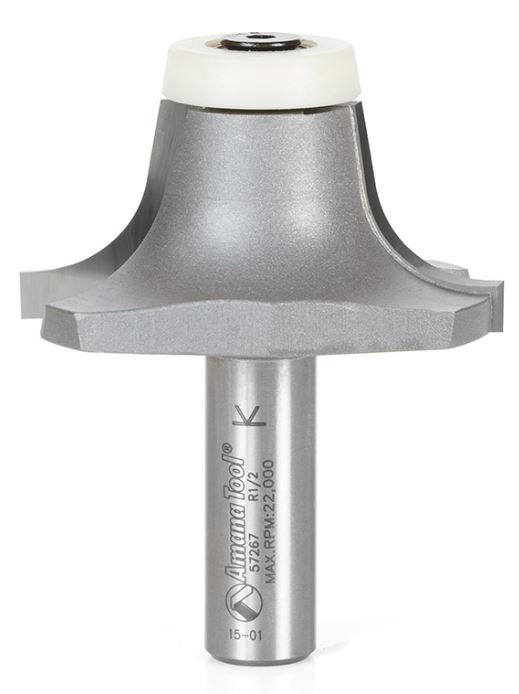

Amana Tool | 25/32 in | 2 9/64 in | 63/64 in | Screw #67146, Allen key #5009 | Ultra-Glide bearing for #47787 | 13/16 in | 2 w/Nylon Bearing | 2 25/32 in | 33/64 in | 1/2 in | Roundover | Cutting Draft - 10 deg | $142.39 | Add to cart | |
| 57268 |
1
|
Amana Tool | 25/32 in | 2 3/16 in | 63/64 in | Screw #67146, Allen key #5009 | Ultra-Glide bearing for #47785 | 55/64 in | 2 w/Nylon Bearing | 2 25/32 in | 33/64 in | 1/2 in | Roundover | Cutting Draft - 14 deg | $142.39 | Add to cart | |
| 57269 |
2
|

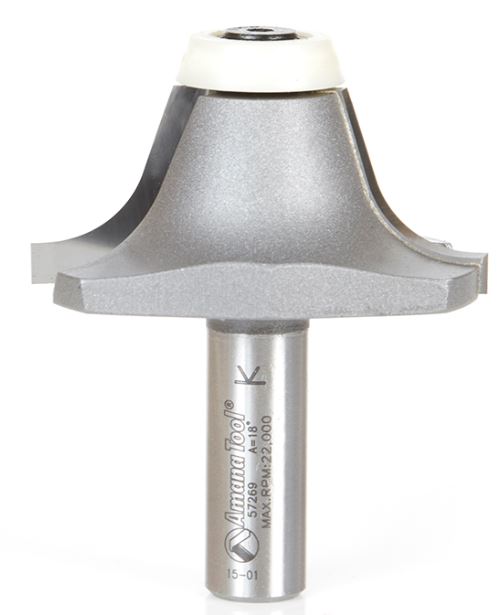

Amana Tool | 25/32 in | 2 7/32 in | 63/64 in | Screw #67146, Allen key #5009 | Ultra-Glide bearing for #47788 | 13/16 in | 2 w/Nylon Bearing | 2 25/32 in | 33/64 in | 1/2 in | Roundover | Cutting Draft - 18 deg | $142.39 | Add to cart |
You may also like…
-
Item #47788, Amana Tool Ultra-Glide™ High Performance Ball Bearing 13/16 Overall Dia x 1/4 Inner Dia x 18 Deg Taper
$14.51
-
Item #47785, Amana Tool Ultra-Glide™ High Performance Ball Bearing 55/64 Overall Dia x 1/4 Inner Dia x 14 Deg Taper
$14.51
-
Item #47787, Amana Tool Ultra-Glide™ High Performance Ball Bearing 7/8 Overall Dia x 1/4 Inner Dia x 10 Deg Taper
$14.51
-
Item #5009, Amana Tool 1/8" Allen-Type Hex Key Short Arm
$0.75
-

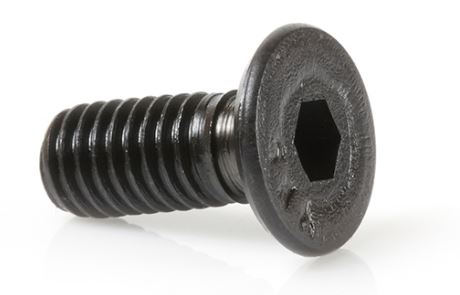

Item #67146, Amana Tool Socket Head Allen #10-32 x 3/8 NF Retaining Screw
