Amana Tool Undermount Bowl w/Ultra-Glide™ Ball Bearing GuideThank you for shopping with us! These bits prepare and/or finish countertop edges in conjunction with undermount bowl installations. The roundover and ogee bits trim and profile the countertop edges after the bowl is mounted. The bevel bit trims the sink cut-out flush with an installed undermount bowl, but it also can be used with a template to prepare a sink cut-out for a bevel-mount bowl. All these tools can be used for undermount applications of Corian® sink and bowl #’s 802S, 804S, 805S, 809S, and 871S. Profile Roundover-
|

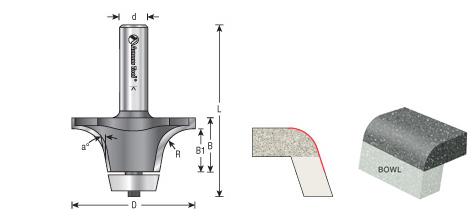

Download as PDF| Item # | Images | Manufacturer | Bearing(s) | Cut Depth | Cut Height, Length, or Width | Replacement Parts | B1 | Flute | Note | Overall Length | Radius | Shank | Type | Angle | Price | Add To Cart | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

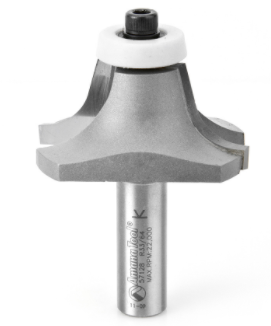

| 57128 |
0
|

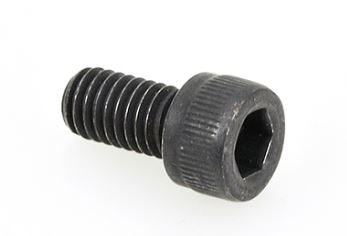

Amana Tool | Ultra-Glide bearing assembly #47726 | 1/2 in | 1 in | Includes #5003 5/32 in hex key & #67093 Allen screw | 3/4 in | 2 w/Nylon Bearing | -- | 3 in | 1/2 in | 1/2 in | Roundover | 18 deg | $107.63 | Add to cart | |

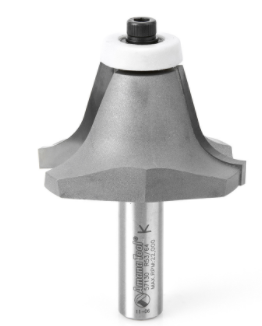

| 57130 |
1
|
Amana Tool | Ultra-Glide bearing assembly #47726 | 3/4 in | 1 1/4 in | Includes #5003 5/32 in hex key & #67093 Allen screw | 1 in | 2 w/Nylon Bearing | Screw Extractor No EX-4 To Remove Diameter of Screw 9/32 in to 3/8 in & 1/8 in pipe - Diameter of Screw Extractor Shank Point 5/16 in 3/16 in | 3 1/4 in | 9/16 in | 1/2 in | Roundover | 18 deg | $119.59 | Add to cart | |

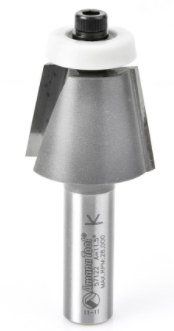

| 57122 |
2
|
Amana Tool | Ultra-Glide bearing assembly #47726 | 1/2 & 3/4 in | 15/16 in | Includes #5003 5/32 in hex key & #67093 Allen screw | -- | 2 w/Nylon Bearing | -- | 3 in | N/A | 1/2 in | Bevel | 11.5 deg | $85.43 | Add to cart |
