Amana Tool 'Box Joint' Set 3-Wing w/Ball Bearing Guide

Thank you for shopping with us!

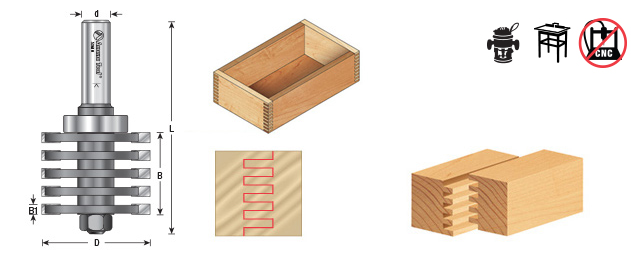

Cut strong, attractive box joints for small boxes, shallow drawers, and trays. By taking three passes, it can be used with stock up to 1/2″ thick and 4″ wide. The bit has five uniformly-spaced 3-wing slotting cutters and a ball bearing guide on a 1/2″ shank arbor.

For best results, use in a table-mounted router.

Replacement Parts:

53207 – 5/32″ 3-wing cutters (5 required)
47620 – 1/2″ shank arbor with nut
47708 – steel ball bearing guide (1/2″ depth of cut)
55369 – 5.5mm spacers (4 required)
55402 – 1mm spacers (2 required)
55404 – 0.5mm shim (1 required)

Item # Images ManufacturerDiameterB1Cut Height, Length, or WidthOverall LengthRPMShankWings Price Add To Cart
Compare 53610
0
Amana Tool1 in5/32 in1 3/8 in3 3/4 in13,000 Max1/2 in3-Wing w/Ball Bearing Guide $136.84 Add to cart
